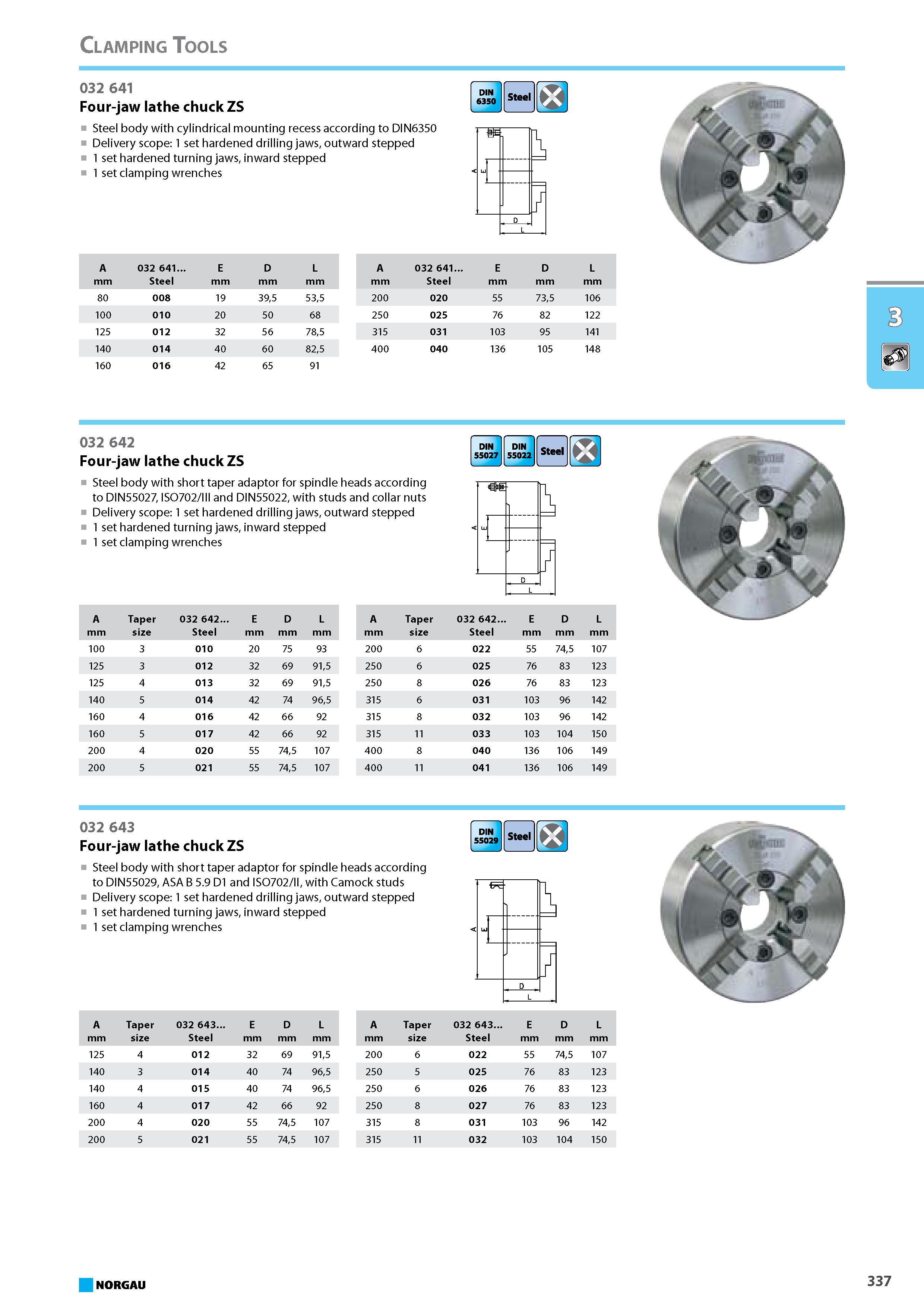

Four-jaw lathe chuck ZS Steel body with cylindrical mounting recess according to DIN6350 Delivery scope 1 set hardened drilling jaws outward stepped 1 set hardened turning jaws inward stepped 1 set clamping wrenches DIN 6350 Steel A mm 032 641 Steel E mm D mm L mm 80 008 19 395 535 100 010 20 50 68 125 012 32 56 785 140 014 40 60 825 160 016 42 65 91 m 7 D L A mm 032 641 Steel E mm D mm L mm 200 020 55 735 106 250 025 76 82 122 315 031 103 95 141 400 040 136 105 148 032 642 Four-jaw lathe chuck ZS Steel body with short taper adaptor for spindle heads according to DIN55027 ISO702 III and DIN55022 with studs and collar nuts Delivery scope 1 set hardened drilling jaws outward stepped 1 set hardened turning jaws inward stepped 1 set clamping wrenches A mm Taper size 032 642 Steel E mm D mm L mm 100 3 010 20 75 93 125 3 012 32 69 915 125 4 013 32 69 915 140 5 014 42 74 965 160 4 016 42 66 92 160 5 017 42 66 92 200 4 020 55 745 107 200 5 021 55 745 107 DIN 55027 DIN 55022 Steel It A mm Taper size 032 642 Steel E mm D mm L mm 200 6 022 55 745 107 250 6 025 76 83 123 250 8 026 76 83 123 315 6 031 103 96 142 315 8 032 103 96 142 315 11 033 103 104 150 400 8 040 136 106 149 400 11 041 136 106 149 032 643 Four-jaw lathe chuck ZS Steel body with short taper adaptor for spindle heads according to DIN55029 ASA B 5.9 D1 and ISO702 with Camock studs Delivery scope 1 set hardened drilling jaws outward stepped 1 set hardened turning jaws inward stepped 1 set clamping wrenches A mm Taper size 032 643 Steel E mm D mm L mm 125 4 012 32 69 915 140 3 014 40 74 965 140 4 015 40 74 965 160 4 017 42 66 92 200 4 020 55 745 107 200 5 021 55 745 107 DIN 55029 Steel lx It A mm Taper size 032 643 Steel E mm D mm L mm 200 6 022 55 745 107 250 5 025 76 83 123 250 6 026 76 83 123 250 8 027 76 83 123 315 8 031 103 96 142 315 11 032 103 104 150 NORGAU 337 Clamping Tools 032 641
