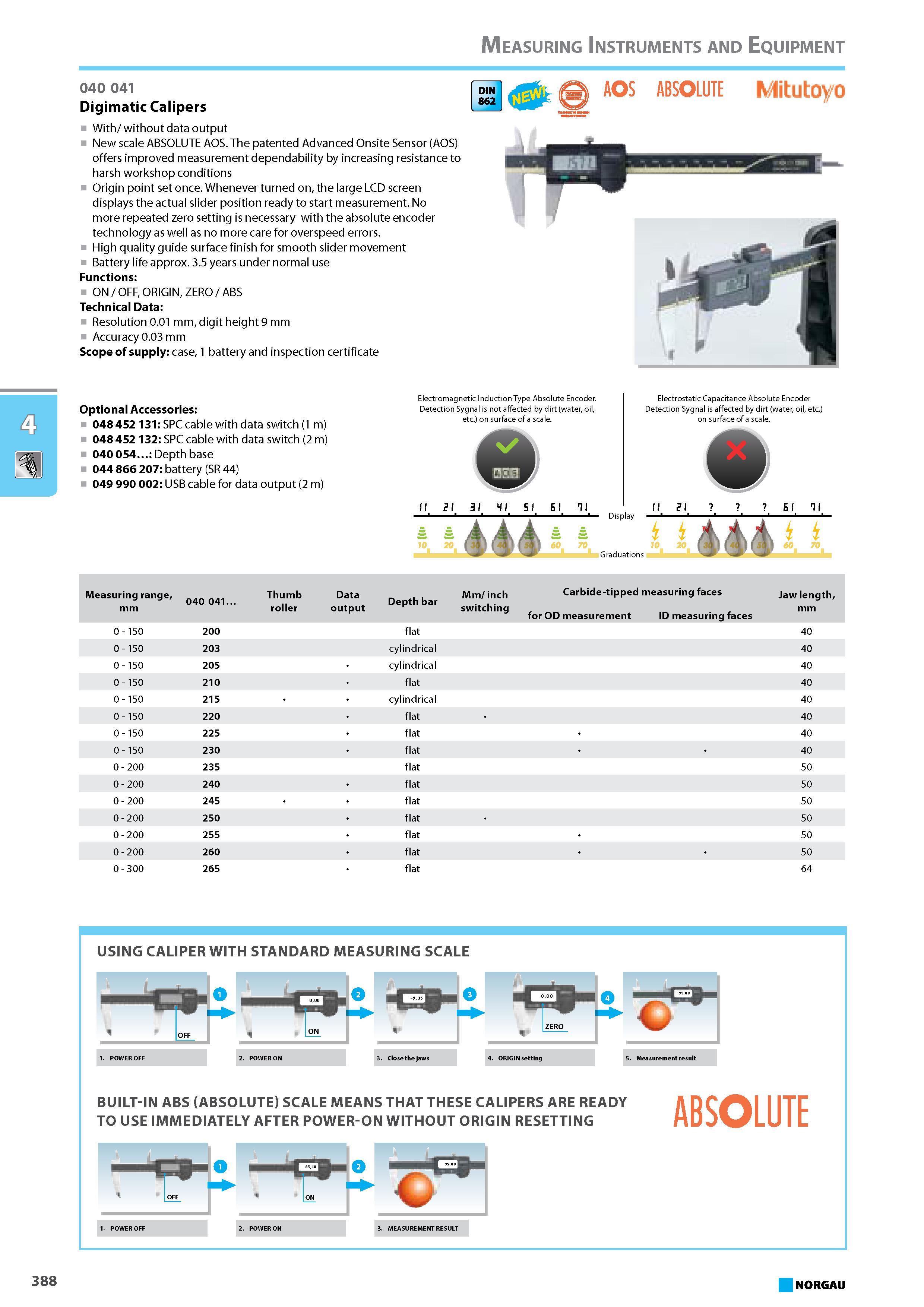

Digimatic Calipers With without data output New scale ABSOLUTE AOS. The patented Advanced Onsite Sensor (AOS) offers improved measurement dependability by increasing resistance to harsh workshop conditions Origin point set once. Whenever turned on the large LCD screen displays the actual slider position ready to start measurement. No more repeated zero setting is necessary with the absolute encoder technology as well as no more care for overspeed errors. High quality guide surface finish for smooth slider movement Battery life approx. 3.5 years under normal use Functions ON OFF ORIGIN ZERO ABS Technical Data Resolution 0.01 mm digit height 9 mm Accuracy 0.03 mm Scope of supply case 1 battery and inspection certificate AOS ABSOLUTE Mitutoyo Optional Accessories 048 452 131 SPC cable with data switch (1 m) 048 452 132 SPC cable with data switch (2 m) 040 054 Depth base 044 866 207 battery (SR 44) 049 990 002 USB cable for data output (2 m) Electromagnetic Induction Type Absolute Encoder. Detection Sygnal is not affected by dirt (water oil etc.) on surface of a scale. Electrostatic Capacitance Absolute Encoder Detection Sygnal is affected by dirt (water oil etc.) on surface of a scale. 31 HI 51 61 61 - 1 - 1 -1 1 1 Display -1 1 -1 1 -1 1 - UM&LL s Measuring range 040 041. mm Thumb Data Depth bar Mm inch Carbide-tipped measuring faces Jaw length roller output switching for OD measurement ID measuring faces mm 0 - 150 200 flat 40 USING CALIPER WITH STANDARD MEASURING SCALE 1. POWER OFF 2. POWER ON 3. Close the jaws 4. ORIGIN setting 5. Measurement result BUILT-IN ABS (ABSOLUTE) SCALE MEANS THAT THESE CALIPERS ARE READY TO USE IMMEDIATELY AFTER POWER-ON WITHOUT ORIGIN RESETTING ABSOLUTE - C 1. POWER OFF 2. POWER ON 3. MEASUREMENT RESULT ON 388 NORGAU Measuring Instruments and Equipment 040 041
