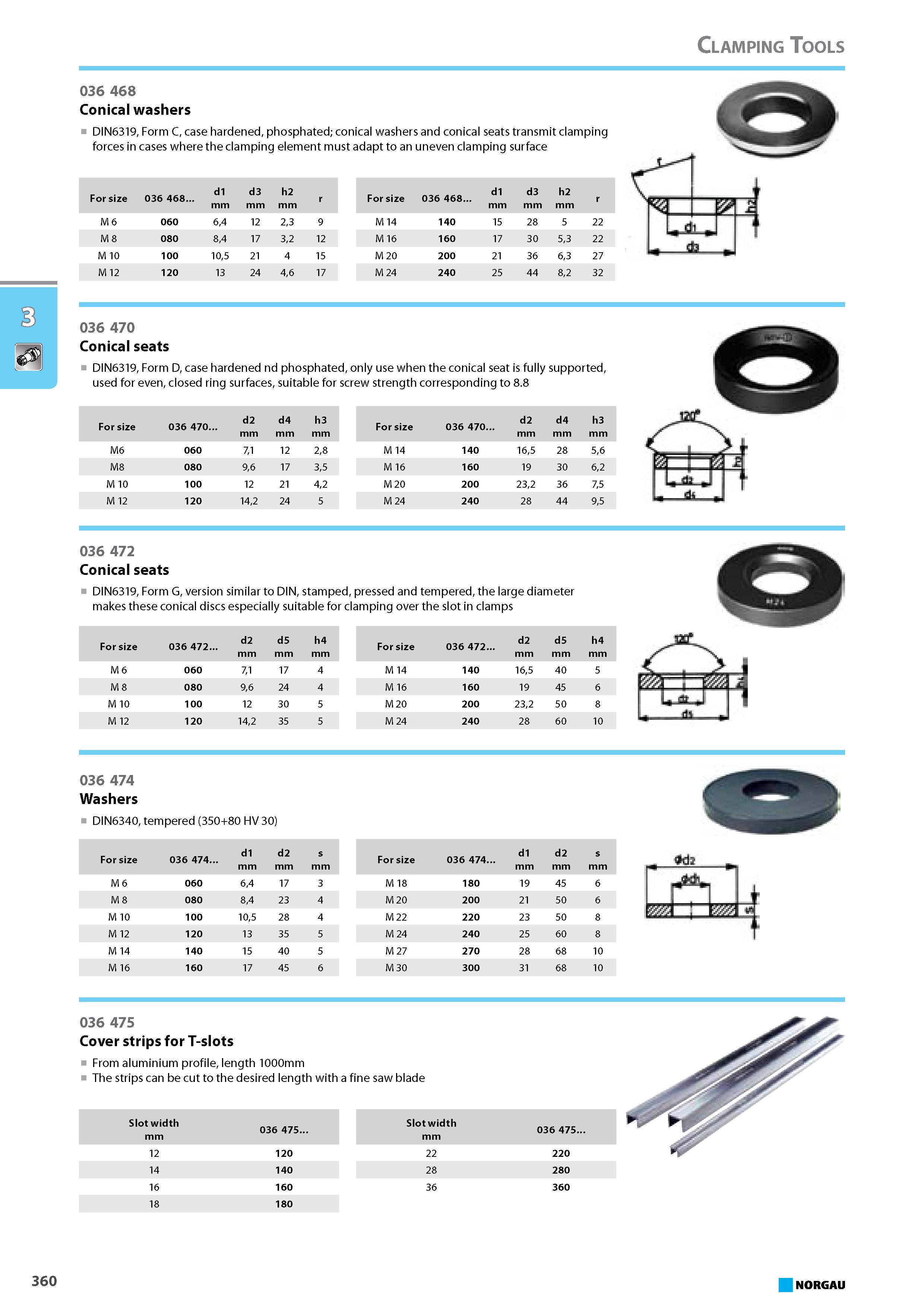

Conical washers DIN6319 Form C case hardened phosphated conical washers and conical seats transmit clamping forces in cases where the clamping element must adapt to an uneven clamping surface For size 036 468 d1 mm d3 mm h2 mm r For size 036 468 d1 mm d3 mm h2 mm r M 6 060 64 12 23 9 M 14 140 15 28 5 22 M 8 080 84 17 32 12 M 16 160 17 30 53 22 M 10 100 105 21 4 15 M 20 200 21 36 63 27 M 12 120 13 24 46 17 M 24 240 25 44 82 32 036 470 Conical seats DIN6319 Form D case hardened nd phosphated only use when the conical seat is fully supported used for even closed ring surfaces suitable for screw strength corresponding to 8.8 For size 036 470 d2 mm d4 mm h3 mm M6 060 71 12 28 M8 080 96 17 35 M 10 100 12 21 42 M 12 120 142 24 5 For size 036 470 d2 mm d4 mm h3 mm M 14 140 165 28 56 M 16 160 19 30 62 M 20 200 232 36 75 M 24 240 28 44 95 036 472 Conical seats DIN6319 Form G version similar to DIN stamped pressed and tempered the large diameter makes these conical discs especially suitable for clamping over the slot in clamps For size 036 472 d2 mm d5 mm h4 mm M 6 060 71 17 4 M 8 080 96 24 4 M 10 100 12 30 5 M 12 120 142 35 5 For size 036 472 d2 mm d5 mm h4 mm M 14 140 165 40 5 M 16 160 19 45 6 M 20 200 232 50 8 M 24 240 28 60 10 036 474 Washers DIN6340 tempered (350+80 HV 30) For size 036 474 d1 mm d2 mm s mm M 6 060 64 17 3 M 8 080 84 23 4 M 10 100 105 28 4 M 12 120 13 35 5 M 14 140 15 40 5 M 16 160 17 45 6 For size 036 474 d1 mm d2 mm s mm M 18 180 19 45 6 M 20 200 21 50 6 M 22 220 23 50 8 M 24 240 25 60 8 M 27 270 28 68 10 M 30 300 31 68 10 036 475 Cover strips for T-slots From aluminium profile length 1000mm The strips can be cut to the desired length with a fine saw blade Slot width mm 036 475 Slot width mm 036 475 12 120 22 220 14 140 28 280 16 160 36 360 18 180 360 NORGAU Clamping Tools 036 468
