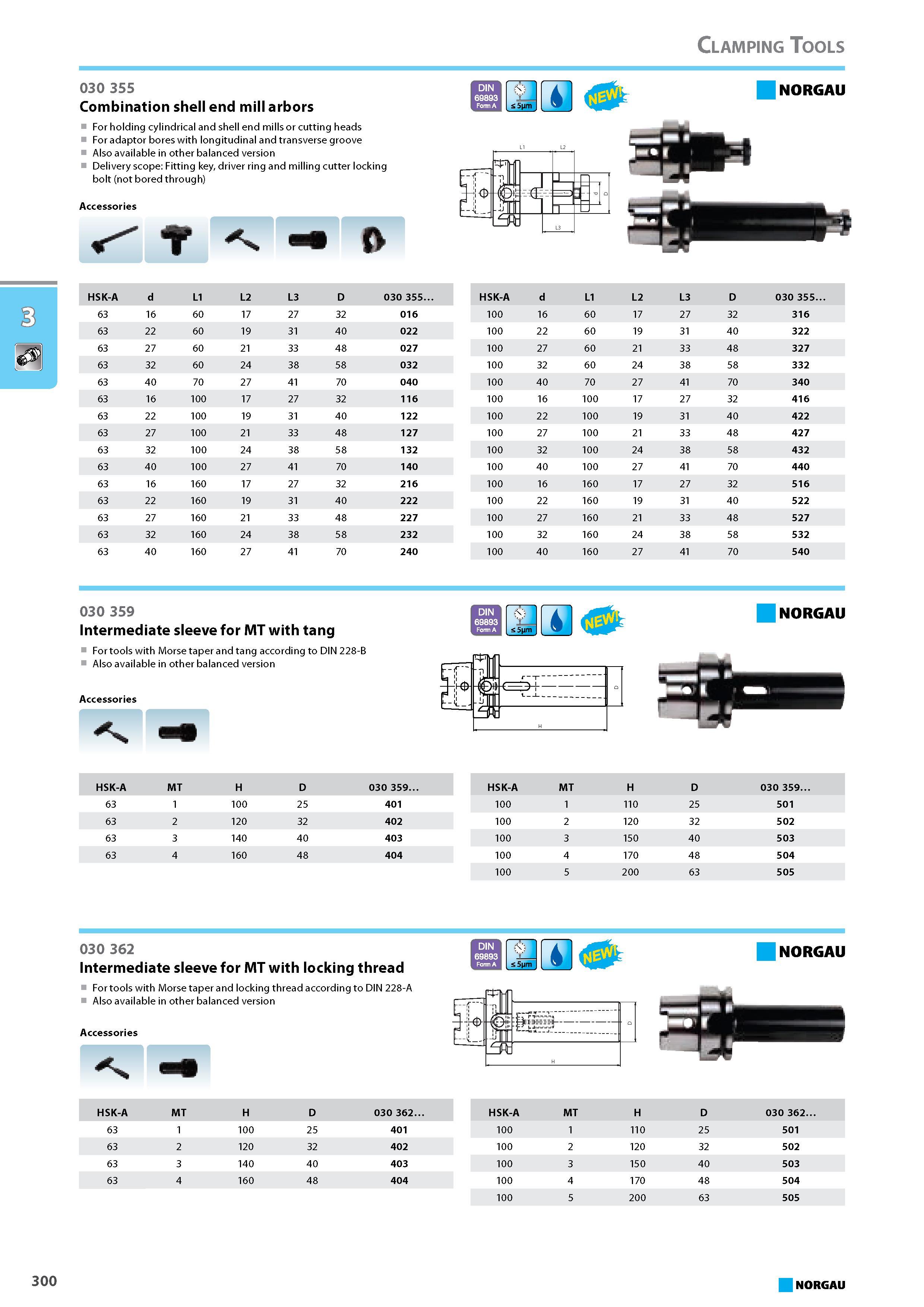

Combination shell end mill arbors For holding cylindrical and shell end mills or cutting heads For adaptor bores with longitudinal and transverse groove Also available in other balanced version Delivery scope Fitting key driver ring and milling cutter locking bolt (not bored through) Accessories (V 5nm j NORGAU HSK-A d L1 L2 L3 D 030 355. 63 16 60 17 27 32 016 63 22 60 19 31 40 022 63 27 60 21 33 48 027 63 32 60 24 38 58 032 63 40 70 27 41 70 040 63 16 100 17 27 32 116 63 22 100 19 31 40 122 63 27 100 21 33 48 127 63 32 100 24 38 58 132 63 40 100 27 41 70 140 63 16 160 17 27 32 216 63 22 160 19 31 40 222 63 27 160 21 33 48 227 63 32 160 24 38 58 232 63 40 160 27 41 70 240 HSK-A d L1 L2 L3 D 030 355. 100 16 60 17 27 32 316 100 22 60 19 31 40 322 100 27 60 21 33 48 327 100 32 60 24 38 58 332 100 40 70 27 41 70 340 100 16 100 17 27 32 416 100 22 100 19 31 40 422 100 27 100 21 33 48 427 100 32 100 24 38 58 432 100 40 100 27 41 70 440 100 16 160 17 27 32 516 100 22 160 19 31 40 522 100 27 160 21 33 48 527 100 32 160 24 38 58 532 100 40 160 27 41 70 540 030 359 Intermediate sleeve for MT with tang For tools with Morse taper and tang according to DIN 228-B Also available in other balanced version Accessories DIN 69893 1 Form A 1 5jim NORGAU HSK-A MT H D 030 359. 100 1 110 25 501 100 2 120 32 502 100 3 150 40 503 100 4 170 48 504 100 5 200 63 505 HSK-A MT H D 030 359. 63 1 100 25 401 63 2 120 32 402 63 3 140 40 403 63 4 160 48 404 030 362 Intermediate sleeve for MT with locking thread For tools with Morse taper and locking thread according to DIN 228-A Also available in other balanced version Accessories NORGAU HSK-A 63 63 63 63 MT H 100 120 140 160 25 32 40 48 401 402 403 404 HSK-A MT H D 030 362. 100 1 110 25 501 100 2 120 32 502 100 3 150 40 503 100 4 170 48 504 100 5 200 63 505 D 300 NORGAU Clamping Tools 030 355
