Carbide tipped keyhole saw Carbide hole saws achieve long tool lives and can be reground several times No breaking under increased loads The tapered pilot drill ensure

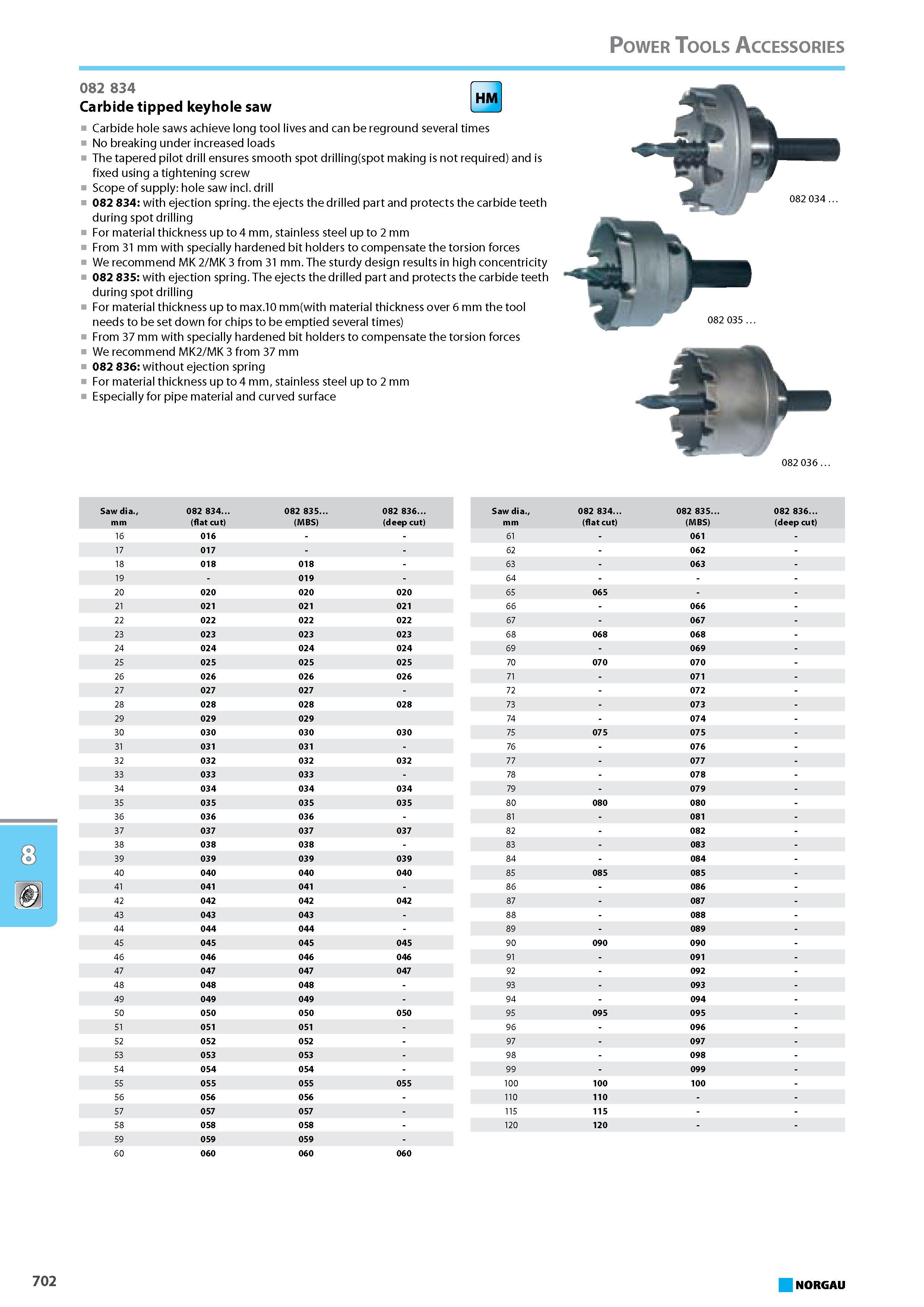

Carbide tipped keyhole saw Carbide hole saws achieve long tool lives and can be reground several times No breaking under increased loads The tapered pilot drill ensures smooth spot drilling(spot making is not required) and is fixed using a tightening screw Scope of supply hole saw incl. drill 082 834 with ejection spring. the ejects the drilled part and protects the carbide teeth during spot drilling For material thickness up to 4 mm stainless steel up to 2 mm From 31 mm with specially hardened bit holders to compensate the torsion forces We recommend MK 2 MK 3 from 31 mm. The sturdy design results in high concentricity 082 835 with ejection spring. The ejects the drilled part and protects the carbide teeth during spot drilling For material thickness up to max.10 mm(with material thickness over 6 mm the tool needs to be set down for chips to be emptied several times) From 37 mm with specially hardened bit holders to compensate the torsion forces We recommend MK2 MK 3 from 37 mm 082 836 without ejection spring For material thickness up to 4 mm stainless steel up to 2 mm Especially for pipe material and curved surface 082 036 Saw dia. mm 082 834 (flat cut) 082 835. (MBS) 082 836. (deep cut) 16 016 17 017 18 018 018 - 19 - 019 - 20 020 020 020 21 021 021 021 22 022 022 022 23 023 023 023 24 024 024 024 25 025 025 025 26 026 026 026 27 027 027 - 28 028 028 028 29 029 029 30 030 030 030 31 031 031 - 32 032 032 032 33 033 033 - 34 034 034 034 35 035 035 035 36 036 036 - 37 037 037 037 38 038 038 - 39 039 039 039 40 040 040 040 41 041 041 - 42 042 042 042 43 043 043 - 44 044 044 - 45 045 045 045 46 046 046 046 47 047 047 047 48 048 048 - 49 049 049 - 50 050 050 050 51 051 051 - 52 052 052 - 53 053 053 - 54 054 054 - 55 055 055 055 56 056 056 - 57 057 057 - 58 058 058 - 59 059 059 - 60 060 060 060 Saw dia. mm 082 834. (flat cut) 082 835. (MBS) 082 836. (deep cut) 61 - 061 - 62 - 062 - 63 - 063 - 64 - 65 065 66 - 066 - 67 - 067 - 68 068 068 - 69 - 069 - 70 070 070 - 71 - 071 - 72 - 072 - 73 - 073 - 74 - 074 - 75 075 075 - 76 - 076 - 77 - 077 - 78 - 078 - 79 - 079 - 80 080 080 - 81 - 081 - 82 - 082 - 83 - 083 - 84 - 084 - 85 085 085 - 86 - 086 - 87 - 087 - 88 - 088 - 89 - 089 - 90 090 090 - 91 - 091 - 92 - 092 - 93 - 093 - 94 - 094 - 95 095 095 - 96 - 096 - 97 - 097 - 98 - 098 - 99 - 099 - 100 100 100 - 110 110 115 115 120 120 702 NORGAU Power Tools Accessories 082 834
