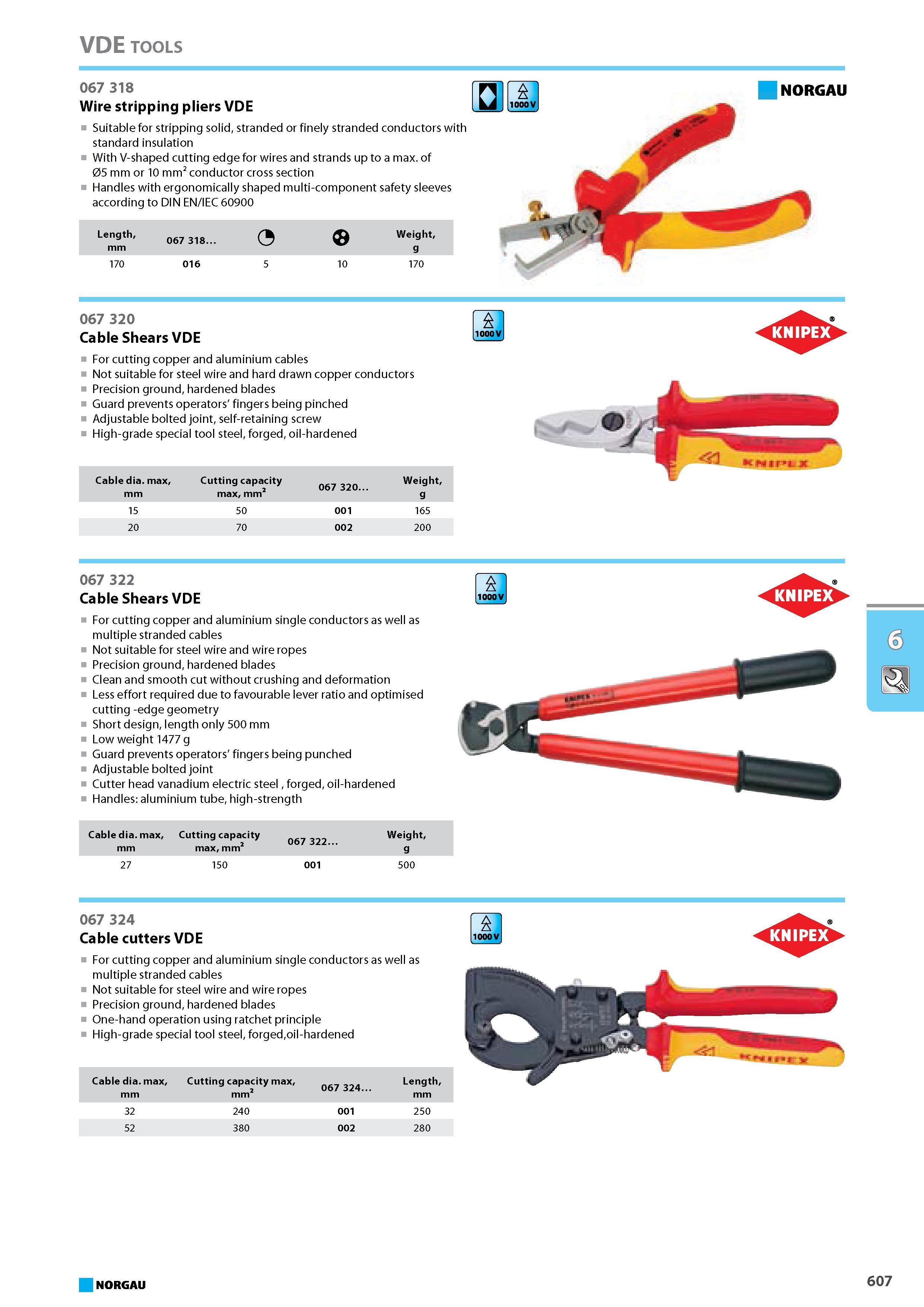

Cable Shears VDE For cutting copper and aluminium cables Not suitable for steel wire and hard drawn copper conductors Precision ground hardened blades Guard prevents o

Cable Shears VDE For cutting copper and aluminium cables Not suitable for steel wire and hard drawn copper conductors Precision ground hardened blades Guard prevents operators' fingers being pinched Adjustable bolted joint self-retaining screw High-grade special tool steel forged oil-hardened & Cable dia. max mm Cutting capacity max mm2 067 320. Weight g 15 50 001 165 20 70 002 200 067 322 Cable Shears VDE For cutting copper and aluminium single conductors as well as multiple stranded cables Not suitable for steel wire and wire ropes Precision ground hardened blades Clean and smooth cut without crushing and deformation Less effort required due to favourable lever ratio and optimised cutting -edge geometry Short design length only 500 mm Low weight 1477 g Guard prevents operators' fingers being punched Adjustable bolted joint Cutter head vanadium electric steel forged oil-hardened Handles aluminium tube high-strength Cable dia. max mm Cutting capacity max mm2 Weight g 27 150 001 500 067 324 Cable cutters VDE For cutting copper and aluminium single conductors as well as multiple stranded cables Not suitable for steel wire and wire ropes Precision ground hardened blades One-hand operation using ratchet principle High-grade special tool steel forgedoil-hardened Cable dia. max mm Cutting capacity max mm2 067 324. Length mm 32 240 001 250 52 380 002 280 NORGAU 016 5 10 NORGAU I00QH j 1000V 607 VDE TOOLS 067 318 Wire stripping pliers VDE Suitable for stripping solid stranded or finely stranded conductors with standard insulation With V-shaped cutting edge for wires and strands up to a max. of 05 mm or 10 mm2 conductor cross section Handles with ergonomically shaped multi-component safety sleeves according to DIN EN IEC 60900 Length mm 067 318. 0 Weight g 067 320
