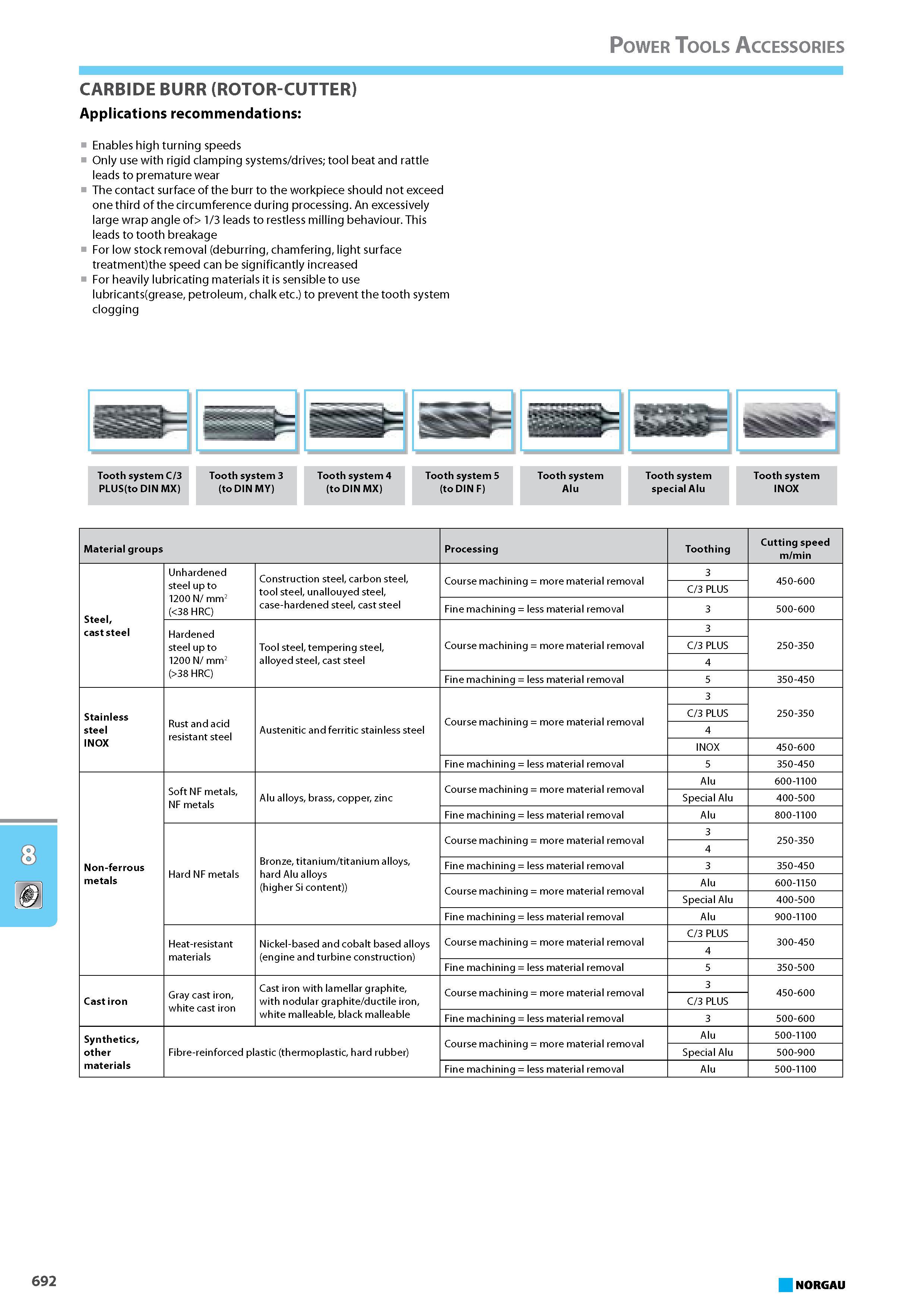

Applications recommendations CARBIDE BURR ROTOR-CUTTER Enables high turning speeds Only use with rigid clamping systems drives tool beat and rattle leads to premature wear The contact surface of the burr to the workpiece should not exceed one third of the circumference during processing. An excessively large wrap angle of 1 3 leads to restless milling behaviour. This leads to tooth breakage For low stock removal (deburring chamfering light surface treatment)the speed can be significantly increased For heavily lubricating materials it is sensible to use lubricants(grease petroleum chalk etc.) to prevent the tooth system clogging Tooth system C 3 PLUS(to DIN MX) Tooth system 3 (to DIN MY) Tooth system 4 (to DIN MX) Tooth system 5 (to DIN F) Tooth system Alu Tooth system special Alu Tooth system INOX Material groups Processing Toothing Cutting speed m/min Steel cast steel Unhardened steel up to 1200 N/mm2 (38 HRC) Construction steel carbon steel tool steel unallouyed steel case-hardened steel cast steel Course machining more material removal 3 450-600 C 3 PLUS Fine machining less material removal 3 500-600 Hardened steel up to 1200 N/mm2 (38 HRC) Tool steel tempering steel alloyed steel cast steel Course machining more material removal 3 250-350 C 3 PLUS 4 Fine machining less material removal 5 350-450 Stainless steel INOX Rust and acid resistant steel Austenitic and ferritic stainless steel Course machining more material removal 3 250-350 C 3 PLUS 4 INOX 450-600 Fine machining less material removal 5 350-450 Non-ferrous metals Soft NF metals NF metals Alu alloys brass copper zinc Course machining more material removal Alu 600-1100 Special Alu 400-500 Fine machining less material removal Alu 800-1100 Hard NF metals Bronze titanium titanium alloys hard Alu alloys (higher Si content)) Course machining more material removal 3 250-350 4 Fine machining less material removal 3 350-450 Course machining more material removal Alu 600-1150 Special Alu 400-500 Fine machining less material removal Alu 900-1100 Heat-resistant materials Nickel-based and cobalt based alloys (engine and turbine construction) Course machining more material removal C 3 PLUS 300-450 4 Fine machining less material removal 5 350-500 Cast iron Gray cast iron white cast iron Cast iron with lamellar graphite with nodular graphite ductile iron white malleable black malleable Course machining more material removal 3 450-600 C 3 PLUS Fine machining less material removal 3 500-600 Synthetics other materials Fibre-reinforced plastic (thermoplastic hard rubber) Course machining more material removal Alu 500-1100 Special Alu 500-900 Fine machining less material removal Alu 500-1100 692 NORGAU Power Tools Accessories
