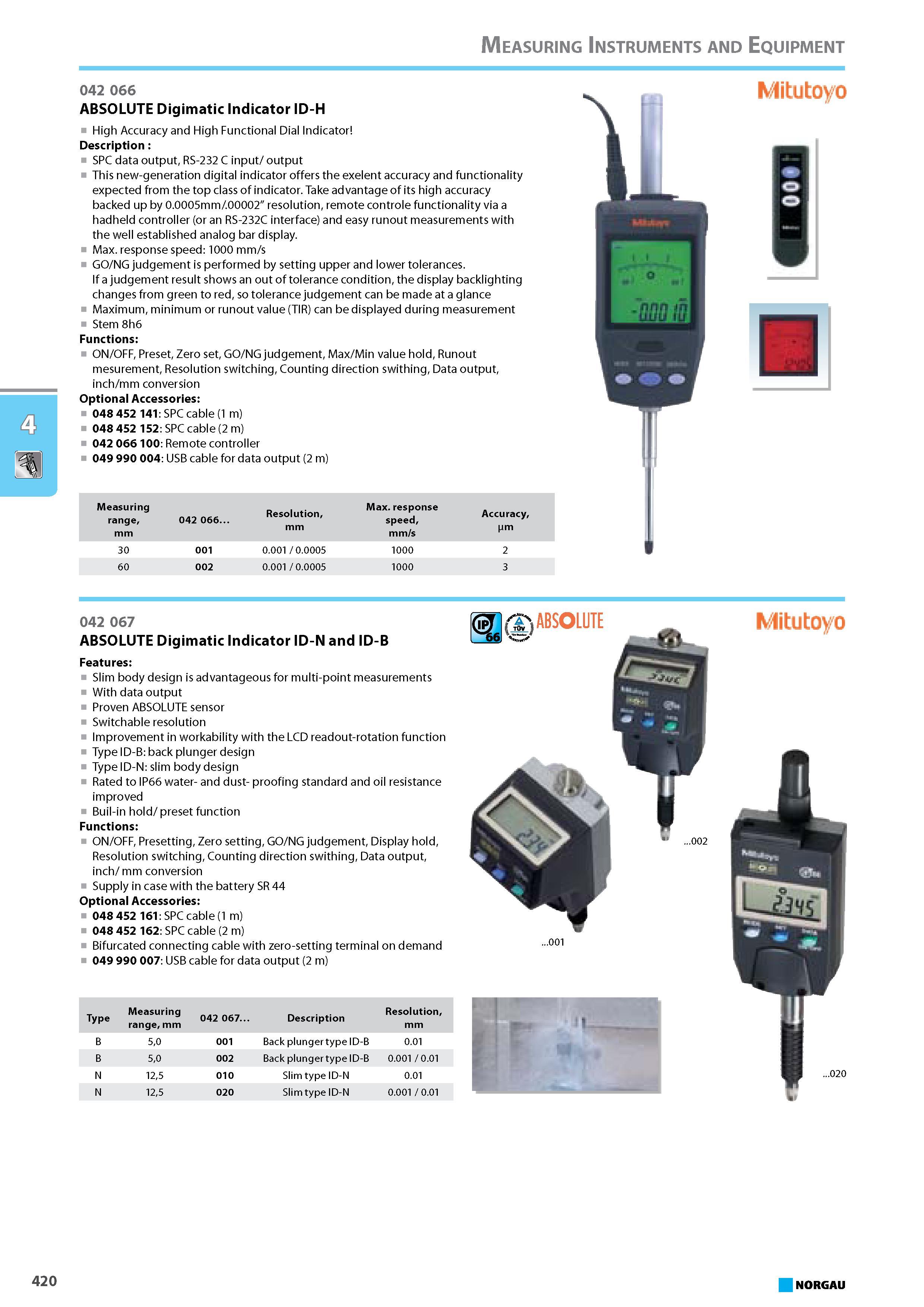

ABSOLUTE Digimatic Indicator ID-H High Accuracy and High Functional Dial Indicator Description SPC data output RS-232 C input output This new-generation digital indicator offers the exelent accuracy and functionality expected from the top class of indicator. Take advantage of its high accuracy backed up by 0.0005mm .00002" resolution remote controle functionality via a hadheld controller (or an RS-232C interface) and easy runout measurements with the well established analog bar display. Max. response speed 1000 mm s GO NG judgement is performed by setting upper and lower tolerances. If a judgement result shows an out of tolerance condition the display backlighting changes from green to red so tolerance judgement can be made at a glance Maximum/minimum or runout value (TIR) can be displayed during measurement Stem 8h6 Functions ON OFF Preset Zero set GO NG judgement Max Min value hold Runout mesurement Resolution switching Counting direction swithing Data output inch mm conversion Optional Accessories 048 452 141 SPC cable (1 m) 048 452 152 SPC cable (2 m) 042 066 100 Remote controller 049 990 004 USB cable for data output (2 m) Measuring range mm 042 066. Resolution mm Max. response speed mm s Accuracy pm 30 001 0.001 0.0005 1000 2 60 002 0.001 0.0005 1000 3 042 067 ABSOLUTE Digimatic Indicator ID-N and ID-B Features Slim body design is advantageous for multi-point measurements With data output Proven ABSOLUTE sensor Switchable resolution Improvement in workability with the LCD readout-rotation function Type ID-B back plunger design Type ID-N slim body design Rated to IP66 water- and dust- proofing standard and oil resistance improved Buil-in hold preset function Functions ON OFF Presetting Zero setting GO NG judgement Display hold Resolution switching Counting direction swithing Data output inch mm conversion Supply in case with the battery SR 44 Optional Accessories 048 452 161 SPC cable (1 m) 048 452 162 SPC cable (2 m) Bifurcated connecting cable with zero-setting terminal on demand 049 990 007 USB cable for data output (2 m) Type Measuring range mm 042 067. Description Resolution mm B 50 001 Back plunger type ID-B 0.01 B 50 002 Back plunger type ID-B 0.001 0.01 N 125 010 Slim type ID-N 0.01 N 125 020 Slim type ID-N 0.001 0.01 NORGAU Mitutoyo Mitutoyo Measuring Instruments and Equipment 420 042 066
