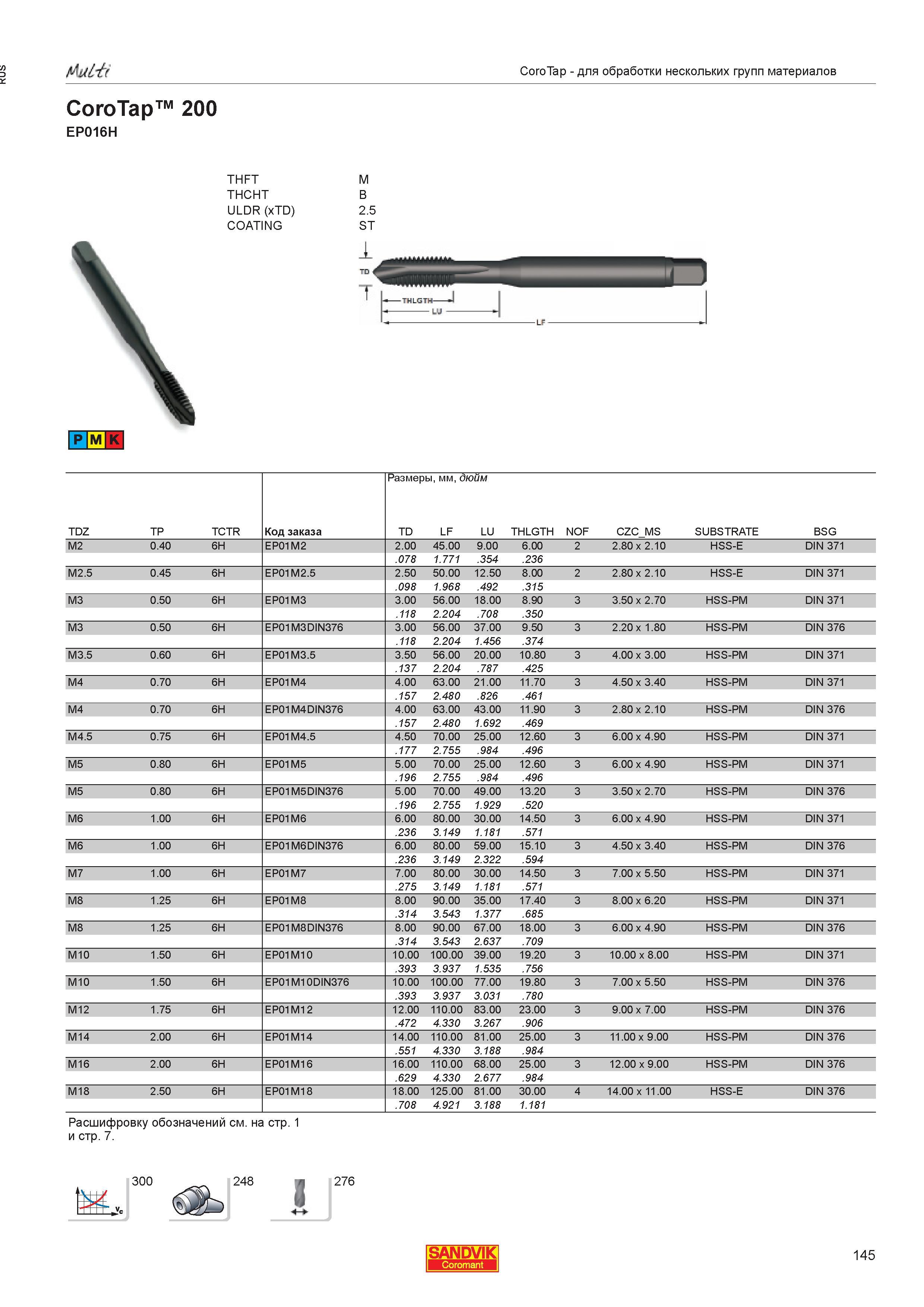

CoroTap для обработки нескольких групп материалов CoroTap 200 EP016H THFT M THCHT B ULDR (xTD) 2.5 COATING ST F1 Размеры мм дюйм TDZ TP TCTR Код заказа TD LF LU THLGTH NOF CZCMS SUBSTRATE BSG M2 0.40 6H EP01M2 2.00 45.00 9.00 6.00 2 2.80 x 2.10 HSS-E DIN 371 .078 1.771 .354 .236 M2.5 0.45 6H EP01M2.5 2.50 50.00 12.50 8.00 2 2.80 x 2.10 HSS-E DIN 371 .098 1.968 .492 .315 M3 0.50 6H EP01M3 3.00 56.00 18.00 8.90 3 3.50 x 2.70 HSS-PM DIN 371 .118 2.204 .708 .350 M3 0.50 6H EP01M3DIN376 3.00 56.00 37.00 9.50 3 2.20 x 1.80 HSS-PM DIN 376 .118 2.204 1.456 .374 M3.5 0.60 6H EP01M3.5 3.50 56.00 20.00 10.80 3 4.00 x 3.00 HSS-PM DIN 371 .137 2.204 .787 .425 M4 0.70 6H EP01M4 4.00 63.00 21.00 11.70 3 4.50 x 3.40 HSS-PM DIN 371 .157 2.480 .826 .461 M4 0.70 6H EP01M4DIN376 4.00 63.00 43.00 11.90 3 2.80 x 2.10 HSS-PM DIN 376 .157 2.480 1.692 .469 M4.5 0.75 6H EP01M4.5 4.50 70.00 25.00 12.60 3 6.00 x 4.90 HSS-PM DIN 371 .177 2.755 .984 .496 M5 0.80 6H EP01M5 5.00 70.00 25.00 12.60 3 6.00 x 4.90 HSS-PM DIN 371 .196 2.755 .984 .496 M5 0.80 6H EP01M5DIN376 5.00 70.00 49.00 13.20 3 3.50 x 2.70 HSS-PM DIN 376 .196 2.755 1.929 .520 M6 1.00 6H EP01M6 6.00 80.00 30.00 14.50 3 6.00 x 4.90 HSS-PM DIN 371 .236 3.149 1.181 .571 M6 1.00 6H EP01M6DIN376 6.00 80.00 59.00 15.10 3 4.50 x 3.40 HSS-PM DIN 376 .236 3.149 2.322 .594 M7 1.00 6H EP01M7 7.00 80.00 30.00 14.50 3 7.00 x 5.50 HSS-PM DIN 371 .275 3.149 1.181 .571 M8 1.25 6H EP01M8 8.00 90.00 35.00 17.40 3 8.00 x 6.20 HSS-PM DIN 371 .314 3.543 1.377 .685 M8 1.25 6H EP01M8DIN376 8.00 90.00 67.00 18.00 3 6.00 x 4.90 HSS-PM DIN 376 .314 3.543 2.637 .709 M10 1.50 6H EP01M10 10.00 100.00 39.00 19.20 3 10.00 x 8.00 HSS-PM DIN 371 .393 3.937 1.535 .756 M10 1.50 6H EP01M10DIN376 10.00 100.00 77.00 19.80 3 7.00 x 5.50 HSS-PM DIN 376 .393 3.937 3.031 .780 M12 1.75 6H EP01M12 12.00 110.00 83.00 23.00 3 9.00 x 7.00 HSS-PM DIN 376 .472 4.330 3.267 .906 M14 2.00 6H EP01M14 14.00 110.00 81.00 25.00 3 11.00 x 9.00 HSS-PM DIN 376 .551 4.330 3.188 .984 M16 2.00 6H EP01M16 16.00 110.00 68.00 25.00 3 12.00 x 9.00 HSS-PM DIN 376 .629 4.330 2.677 .984 M18 2.50 6H EP01M18 18.00 125.00 81.00 30.00 4 14.00 x 11.00 HSS-E DIN 376 .708 4.921 3.188 1.181 Расшифровку обозначений см. на стр. 1 и стр. 7. SANDVIK Coromant 145
