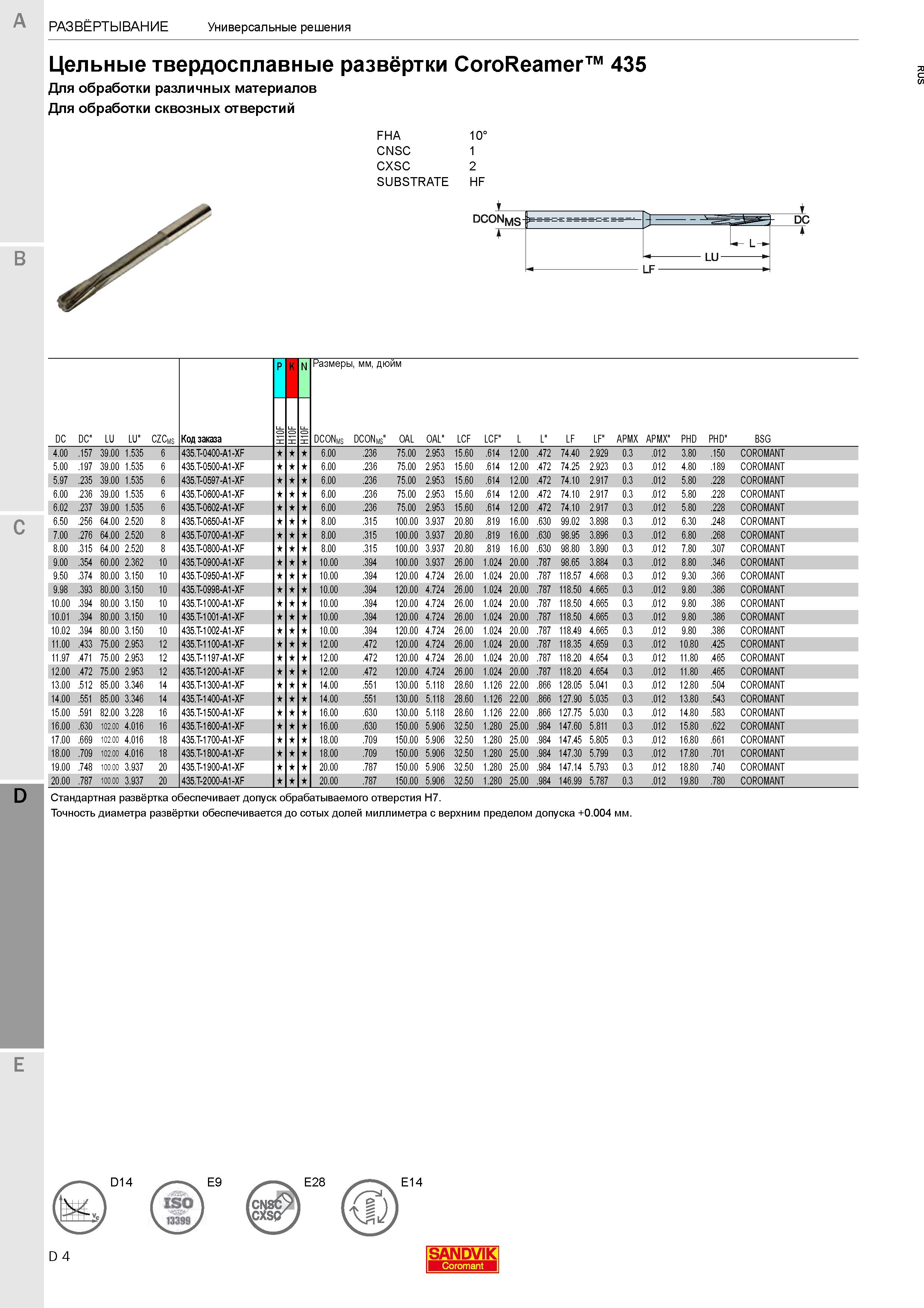

480 Каталог SANDVIK COROMANT 2020 Режущий цельный инструмент по металлу Стр.D4

Каталог SANDVIK COROMANT 2020 Цельный инструмент Стр. D4 0480 Lab2u

Развёртывание Универсальные решения B Цельные твердосплавные развёртки CoroReamer 435 Для обработки различных материалов Для обработки сквозных отверстий FHA CNSC CXSC SUBSTRATE 10° 1 2 HF DCOIMms P K N Размеры, мм, дюйм DC DC" LU LU" CZCms Код заказа ГС DCONms s: О C D 0AL AL О LCF LCF" L L" LF LF" APMX APMX" PHD PHD" О S CQ 4.00 .157 39.00 1.535 6 435.T-0400-A1-XF 6.00 .236 75.00 2.953 15.60 .614 12.00 .472 74.40 2.929 0.3 .012 3.80 .150 coromant 5.00 .197 39.00 1.535 6 435.T-0500-A1-XF 6.00 .236 75.00 2.953 15.60 .614 12.00 .472 74.25 2.923 0.3 .012 4.80 .189 coromant 5.97 .235 39.00 1.535 6 435.T-0597-A1-XF 6.00 .236 75.00 2.953 15.60 .614 12.00 .472 74.10 2.917 0.3 .012 5.80 .228 coromant 6.00 .236 39.00 1.535 6 435.T-0600-A1-XF 6.00 .236 75.00 2.953 15.60 .614 12.00 .472 74.10 2.917 0.3 .012 5.80 .228 coromant 6.02 .237 39.00 1.535 6 435.T-0602-A1-XF 6.00 .236 75.00 2.953 15.60 .614 12.00 .472 74.10 2.917 0.3 .012 5.80 .228 coromant 6.50 .256 64.00 2.520 8 435.T-0650-A1-XF 8.00 .315 100.00 3.937 20.80 .819 16.00 .630 99.02 3.898 0.3 .012 6.30 .248 coromant 7.00 .276 64.00 2.520 8 435.T-0700-A1-XF 8.00 .315 100.00 3.937 20.80 .819 16.00 .630 98.95 3.896 0.3 .012 6.80 .268 coromant 8.00 .315 64.00 2.520 8 435.T-0800-A1-XF 8.00 .315 100.00 3.937 20.80 .819 16.00 .630 98.80 3.890 0.3 .012 7.80 .307 coromant 9.00 .354 60.00 2.362 10 435.T-0900-A1-XF 10.00 .394 100.00 3.937 26.00 1.024 20.00 .787 98.65 3.884 0.3 .012 8.80 .346 coromant 9.50 .374 80.00 3.150 10 435.T-0950-A1-XF 10.00 .394 120.00 4.724 26.00 1.024 20.00 .787 118.57 4.668 0.3 .012 9.30 .366 coromant 9.98 .393 80.00 3.150 10 435.T-0998-A1-XF 10.00 .394 120.00 4.724 26.00 1.024 20.00 .787 118.50 4.665 0.3 .012 9.80 .386 coromant 10.00 .394 80.00 3.150 10 435.T-1000-A1-XF 10.00 .394 120.00 4.724 26.00 1.024 20.00 .787 118.50 4.665 0.3 .012 9.80 .386 coromant 10.01 .394 80.00 3.150 10 435.T-1001-A1-XF 10.00 .394 120.00 4.724 26.00 1.024 20.00 .787 118.50 4.665 0.3 .012 9.80 .386 coromant 10.02 .394 80.00 3.150 10 435.T-1002-A1-XF 10.00 .394 120.00 4.724 26.00 1.024 20.00 .787 118.49 4.665 0.3 .012 9.80 .386 coromant 11.00 .433 75.00 2.953 12 435.T-1100-A1-XF 12.00 .472 120.00 4.724 26.00 1.024 20.00 .787 118.35 4.659 0.3 .012 10.80 .425 coromant 11.97 .471 75.00 2.953 12 435.T-1197-A1-XF 12.00 .472 120.00 4.724 26.00 1.024 20.00 .787 118.20 4.654 0.3 .012 11.80 .465 coromant 12.00 .472 75.00 2.953 12 435.T-1200-A1-XF 12.00 .472 120.00 4.724 26.00 1.024 20.00 .787 118.20 4.654 0.3 .012 11.80 .465 coromant 13.00 .512 85.00 3.346 14 435.T-1300-A1-XF 14.00 .551 130.00 5.118 28.60 1.126 22.00 .866 128.05 5.041 0.3 .012 12.80 .504 coromant 14.00 .551 85.00 3.346 14 435.T-1400-A1-XF 14.00 .551 130.00 5.118 28.60 1.126 22.00 .866 127.90 5.035 0.3 .012 13.80 .543 coromant 15.00 .591 82.00 3.228 16 435.T-1500-A1-XF 16.00 .630 130.00 5.118 28.60 1.126 22.00 .866 127.75 5.030 0.3 .012 14.80 .583 coromant 16.00 .630 102.00 4.016 16 435.T-1600-A1-XF 16.00 .630 150.00 5.906 32.50 1.280 25.00 .984 147.60 5.811 0.3 .012 15.80 .622 coromant 17.00 .669 102.00 4.016 18 435.T-1700-A1-XF 18.00 .709 150.00 5.906 32.50 1.280 25.00 .984 147.45 5.805 0.3 .012 16.80 .661 coromant 18.00 .709 102.00 4.016 18 435.T-1800-A1-XF 18.00 .709 150.00 5.906 32.50 1.280 25.00 .984 147.30 5.799 0.3 .012 17.80 .701 coromant 19.00 .748 100.00 3.937 20 435.T-1900-A1-XF 20.00 .787 150.00 5.906 32.50 1.280 25.00 .984 147.14 5.793 0.3 .012 18.80 .740 coromant 20.00 .787 100.00 3.937 20 435.T-2000-A1-XF 20.00 .787 150.00 5.906 32.50 1.280 25.00 .984 146.99 5.787 0.3 .012 19.80 .780 coromant C D Стандартная развёртка обеспечивает допуск обрабатываемого отверстия H7. Точность диаметра развёртки обеспечивается до сотых долей миллиметра с верхним пределом допуска +0.004 мм. E D14 E28 E14 D 4 SANDVIK
