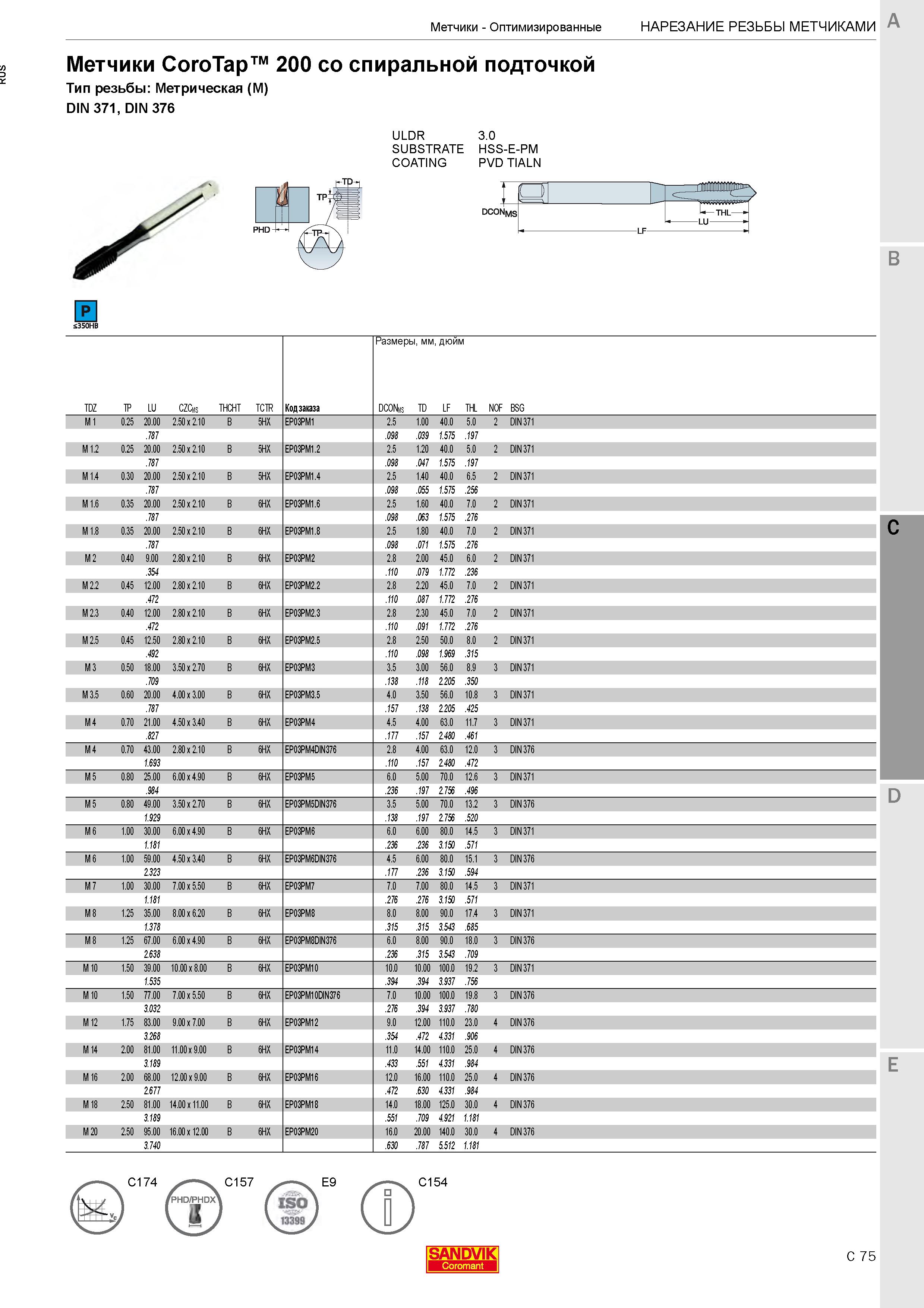

369 Каталог SANDVIK COROMANT 2020 Режущий цельный инструмент по металлу Стр.C75

Каталог SANDVIK COROMANT 2020 Цельный инструмент Стр. C75 0369 Lab2u

Метчики - Оптимизированные Нарезание резьбы метчиками Метчики CoroTap 200 со спиральной подточкой Тип резьбы Метрическая (M) DIN 371, DIN 376 ULDR 3.0 SUBSTRATE HSS-E-PM COATING PVD TIALN dconms B TP LU CZCms THCHT TCTR Код заказа Размеры, мм, дюйм DCONms TD LF THL N0F G S B M 1 0.25 20.00 2.50 x 2.10 B 5HX EP03PM1 2.5 1.00 40.0 5.0 2 DIN 371 .787 098 .039 1.575 .197 M 1.2 0.25 20.00 2.50 x 2.10 B 5HX EP03PM1.2 2.5 1.20 40.0 5.0 2 DIN 371 .787 098 .047 1.575 .197 M 1.4 0.30 20.00 2.50 x 2.10 B 5HX EP03PM1.4 2.5 1.40 40.0 6.5 2 DIN 371 .787 098 .055 1.575 .256 M 1.6 0.35 20.00 2.50 x 2.10 B 6HX EP03PM1.6 2.5 1.60 40.0 7.0 2 DIN 371 .787 098 .063 1.575 .276 M 1.8 0.35 20.00 2.50 x 2.10 B 6HX EP03PM1. 8 2.5 1.80 40.0 7.0 2 DIN 371 .787 098 .071 1.575 .276 M 2 0.40 9.00 2.80 x 2.10 B 6HX EP03PM2 2.8 2.00 45.0 6.0 2 DIN 371 354 110 .079 1.772 .236 M 2.2 0.45 12.00 2.80 x 2.10 B 6HX EP03PM2.2 2.8 2.20 45.0 7.0 2 DIN 371 472 110 .087 1.772 .276 M 2.3 0.40 12.00 2.80 x 2.10 B 6HX EP03PM2.3 2.8 2.30 45.0 7.0 2 DIN 371 472 110 .091 1.772 .276 M 2.5 0.45 12.50 2.80 x 2.10 B 6HX EP03PM2.5 2.8 2.50 50.0 8.0 2 DIN 371 492 110 .098 1.969 .315 M 3 0.50 18.00 3.50 x 2.70 B 6HX EP03PM3 3.5 3.00 56.0 8.9 3 DIN 371 709 138 .118 2.205 .350 M 3.5 0.60 20.00 4.00 x 3.00 B 6HX EP03PM3.5 4.0 3.50 56.0 10.8 3 DIN 371 .787 157 .138 2.205 .425 M 4 0.70 21.00 4.50 x 3.40 B 6HX EP03PM4 4.5 4.00 63.0 11.7 3 DIN 371 .827 . 177 .157 2.480 .461 M 4 0.70 43.00 2.80 x 2.10 B 6HX EP03PM4DIN376 2.8 4.00 63.0 12.0 3 DIN 376 1 693 110 .157 2.480 .472 M 5 0.80 25.00 6.00 x 4.90 B 6HX EP03PM5 6.0 5.00 70.0 12.6 3 DIN 371 984 .236 .197 2.756 .496 M 5 0.80 49.00 3.50 x 2.70 B 6HX EP03PM5DIN376 3.5 5.00 70.0 13.2 3 DIN 376 1 929 .138 .197 2.756 .520 M 6 1.00 30.00 6.00 x 4.90 B 6HX EP03PM6 6.0 6.00 80.0 14.5 3 DIN 371 1 181 .236 .236 3.150 .571 M 6 1.00 59.00 4.50 x 3.40 B 6HX EP03PM6DIN376 4.5 6.00 80.0 15.1 3 DIN 376 2 323 . 177 .236 3.150 .594 M 7 1.00 30.00 7.00 x 5.50 B 6HX EP03PM7 7.0 7.00 80.0 14.5 3 DIN 371 1 181 .276 .276 3.150 .571 M 8 1.25 35.00 8.00 x 6.20 B 6HX EP03PM8 8.0 8.00 90.0 17.4 3 DIN 371 1.378 315 .315 3.543 .685 M 8 1.25 67.00 6.00 x 4.90 B 6HX EP03PM8DIN376 6.0 8.00 90.0 18.0 3 DIN 376 2 638 .236 .315 3.543 .709 M 10 1.50 39.00 10.00 x 8.00 B 6HX EP03PM10 10.0 10.00 100.0 19.2 3 DIN 371 1 535 .394 .394 3.937 .756 M 10 1.50 77.00 7.00 x 5.50 B 6HX EP03PM10DIN376 7.0 10.00 100.0 19.8 3 DIN 376 3 032 .276 .394 3.937 .780 M 12 1.75 83.00 9.00 x 7.00 B 6HX EP03PM12 9.0 12.00 110.0 23.0 4 DIN 376 3 268 .354 .472 4.331 .906 M 14 2.00 81.00 11.00 x 9.00 B 6HX EP03PM14 11.0 14.00 110.0 25.0 4 DIN 376 3 189 .433 .551 4.331 .984 M 16 2.00 68.00 12.00 x 9.00 B 6HX EP03PM16 12.0 16.00 110.0 25.0 4 DIN 376 2 677 .472 .630 4.331 .984 M 18 2.50 81.00 14.00 x 11.00 B 6HX EP03PM18 14.0 18.00 125.0 30.0 4 DIN 376 3 189 .551 .709 4.921 1.181 M 20 2.50 95.00 16.00 x 12.00 B 6HX EP03PM20 16.0 20.00 140.0 30.0 4 DIN 376 3 740 .630 .787 5.512 1.181 с D E
