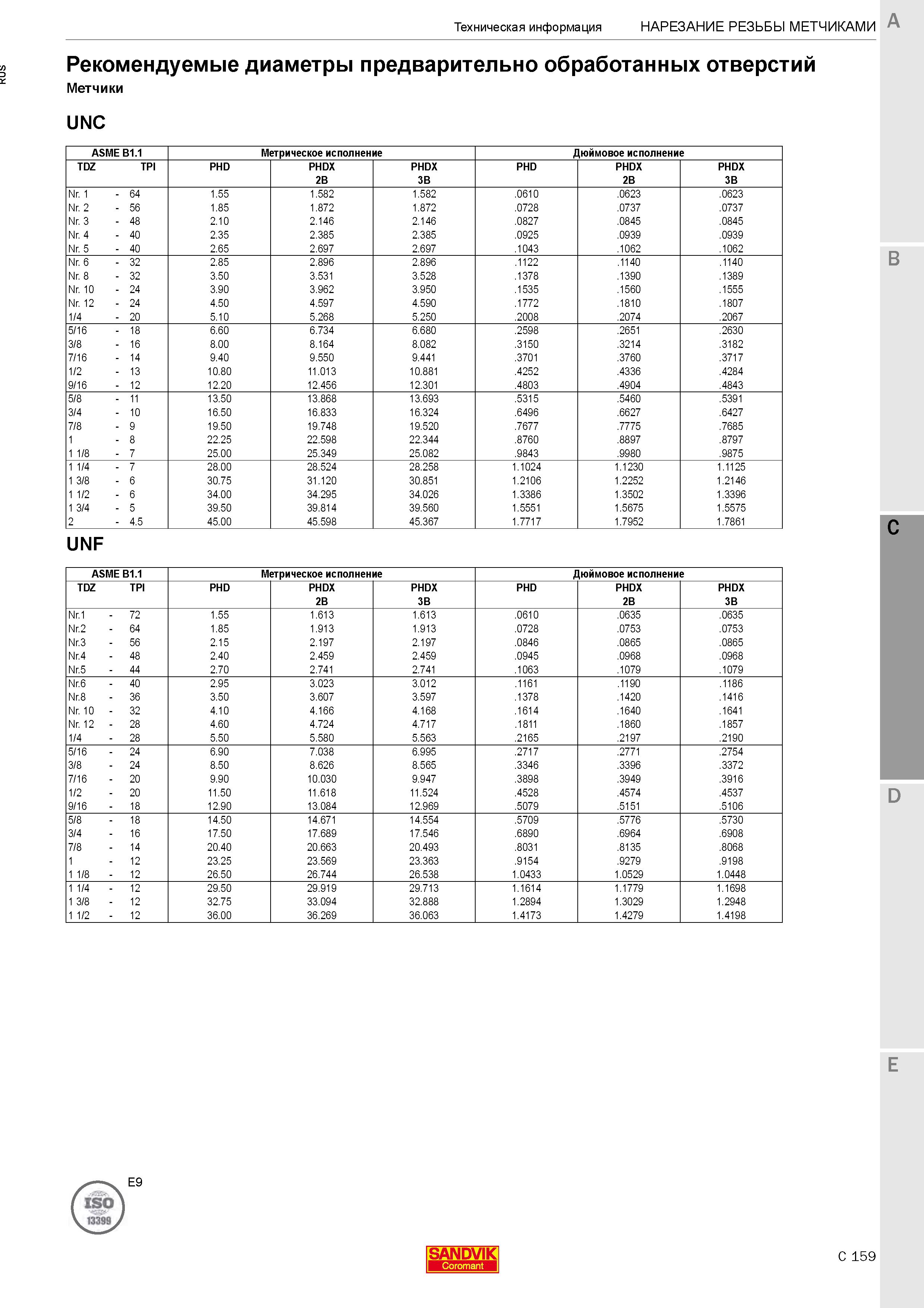

Техническая информация Нарезание резьбы метчиками Рекомендуемые диаметры предварительно обработанных отверстий Метчики UNC ASME B1.1 Метрическое исполнение Дюймовое исполнение TDZ TPI PHD PHDX PHDX PHD PHDX PHDX 2B 3B 2B 3B Nr. 1 - 64 1.55 1.582 1.582 .0610 .0623 .0623 Nr. 2 - 56 1.85 1.872 1.872 .0728 .0737 .0737 Nr. 3 - 48 2.10 2.146 2.146 .0827 .0845 .0845 Nr. 4 - 40 2.35 2.385 2.385 .0925 .0939 .0939 Nr. 5 - 40 2.65 2.697 2.697 .1043 .1062 .1062 Nr. 6 - 32 2.85 2.896 2.896 .1122 .1140 .1140 Nr. 8 - 32 3.50 3.531 3.528 .1378 .1390 .1389 Nr. 10 - 24 3.90 3.962 3.950 .1535 .1560 .1555 Nr. 12 - 24 4.50 4.597 4.590 .1772 .1810 .1807 1/4 - 20 5.10 5.268 5.250 .2008 .2074 .2067 5/16 - 18 6.60 6.734 6.680 .2598 .2651 .2630 3/8 - 16 8.00 8.164 8.082 .3150 .3214 .3182 7/16 - 14 9.40 9.550 9.441 .3701 .3760 .3717 1/2 - 13 10.80 11.013 10.881 .4252 .4336 .4284 9/16 - 12 12.20 12.456 12.301 .4803 .4904 .4843 5/8 - 11 13.50 13.868 13.693 .5315 .5460 .5391 3/4 - 10 16.50 16.833 16.324 .6496 .6627 .6427 7/8 - 9 19.50 19.748 19.520 .7677 .7775 .7685 1- 8 22.25 22.598 22.344 .8760 .8897 .8797 1 1/8 - 7 25.00 25.349 25.082 .9843 .9980 .9875 1 1/4 - 7 28.00 28.524 28.258 1.1024 1.1230 1.1125 1 3/8 - 6 30.75 31.120 30.851 1.2106 1.2252 1.2146 1 1/2 - 6 34.00 34.295 34.026 1.3386 1.3502 1.3396 1 3/4 - 5 39.50 39.814 39.560 1.5551 1.5675 1.5575 2- 4.5 45.00 45.598 45.367 1.7717 1.7952 1.7861 UNF ASME B1.1 Метрическое исполнение Дюймовое исполнение TDZ TPI PHD PHDX PHDX PHD PHDX PHDX 2B 3B 2B 3B Nr.1 - 72 1.55 1.613 1.613 .0610 .0635 .0635 Nr.2 - 64 1.85 1.913 1.913 .0728 .0753 .0753 Nr.3 - 56 2.15 2.197 2.197 .0846 .0865 .0865 Nr.4 - 48 2.40 2.459 2.459 .0945 .0968 .0968 Nr.5 - 44 2.70 2.741 2.741 .1063 .1079 .1079 Nr.6 - 40 2.95 3.023 3.012 .1161 .1190 .1186 Nr.8 - 36 3.50 3.607 3.597 .1378 .1420 .1416 Nr. 10 - 32 4.10 4.166 4.168 .1614 .1640 .1641 Nr. 12 - 28 4.60 4.724 4.717 .1811 .1860 .1857 1/4 - 28 5.50 5.580 5.563 .2165 .2197 .2190 5/16 - 24 6.90 7.038 6.995 .2717 .2771 .2754 3/8 - 24 8.50 8.626 8.565 .3346 .3396 .3372 7/16 - 20 9.90 10.030 9.947 .3898 .3949 .3916 1/2 - 20 11.50 11.618 11.524 .4528 .4574 .4537 9/16 - 18 12.90 13.084 12.969 .5079 .5151 .5106 5/8 - 18 14.50 14.671 14.554 .5709 .5776 .5730 3/4 - 16 17.50 17.689 17.546 .6890 .6964 .6908 7/8 - 14 20.40 20.663 20.493 .8031 .8135 .8068 1- 12 23.25 23.569 23.363 .9154 .9279 .9198 1 1/8 - 12 26.50 26.744 26.538 1.0433 1.0529 1.0448 1 1/4 - 12 29.50 29.919 29.713 1.1614 1.1779 1.1698 1 3/8 - 12 32.75 33.094 32.888 1.2894 1.3029 1.2948 1 1/2 - 12 36.00 36.269 36.063 1.4173 1.4279 1.4198 E9 SANDVIK Coromant B C D E C 159
