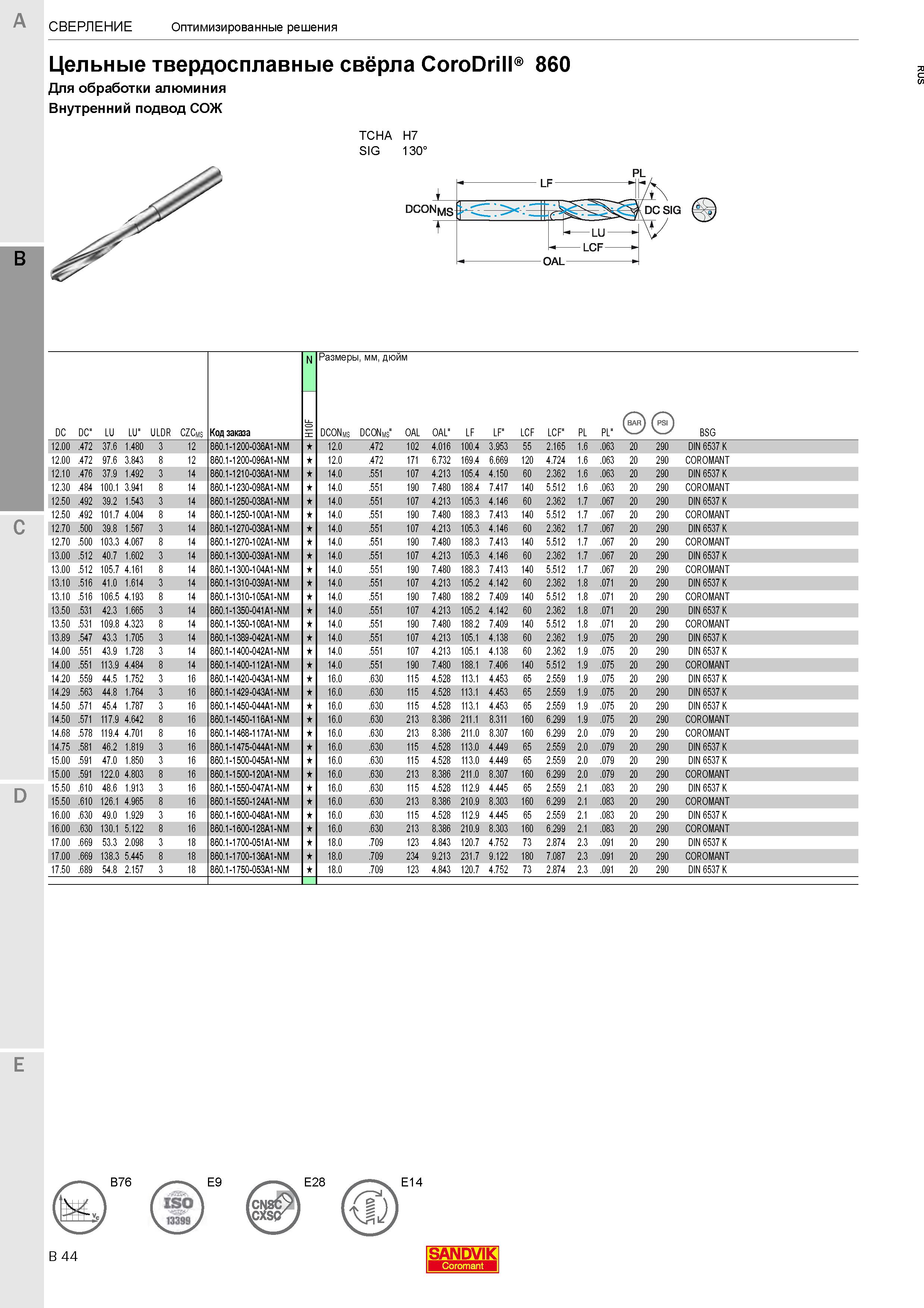

244 Каталог SANDVIK COROMANT 2020 Режущий цельный инструмент по металлу Стр.B44

Каталог SANDVIK COROMANT 2020 Цельный инструмент Стр. B44 0244 Lab2u

Сверление Оптимизированные решения Цельные твердосплавные свёрла CoroDrill 860 Для обработки алюминия Внутренний подвод СОЖ TCHA Н7 SIG 130 dconMs DC DC" LU LU" ULDR CZCms Код заказа N 1H Размеры, мм, дюйм DCONms DCONms" 0AL AL О LF LF" LCF LCF" PL PL" CD s CO 12.00 .472 37.6 1.480 3 12 860. -1200-036A1-NM 12.0 .472 102 4.016 100.4 3.953 55 2.165 1.6 .063 20 290 DIN 6537 K 12.00 .472 97.6 3.843 8 12 860. -1200-096A1-NM 12.0 .472 171 6.732 169.4 6.669 120 4.724 1.6 .063 20 290 coromant 12.10 .476 37.9 1.492 3 14 860. -1210-036A1-NM 14.0 .551 107 4.213 105.4 4.150 60 2.362 1.6 .063 20 290 DIN 6537 K 12.30 .484 100.1 3.941 8 14 860. -1230-098A1-NM 14.0 .551 190 7.480 188.4 7.417 140 5.512 1.6 .063 20 290 coromant 12.50 .492 39.2 1.543 3 14 860. -1250-038A1-NM 14.0 .551 107 4.213 105.3 4.146 60 2.362 1.7 .067 20 290 DIN 6537 K 12.50 .492 101.7 4.004 8 14 860. -1250-100A1-NM 14.0 .551 190 7.480 188.3 7.413 140 5.512 1.7 .067 20 290 coromant 12.70 .500 39.8 1.567 3 14 860. -1270-038A1-NM 14.0 .551 107 4.213 105.3 4.146 60 2.362 1.7 .067 20 290 DIN 6537 K 12.70 .500 103.3 4.067 8 14 860. -1270-102A1-NM 14.0 .551 190 7.480 188.3 7.413 140 5.512 1.7 .067 20 290 coromant 13.00 .512 40.7 1.602 3 14 860. -1300-039A1-NM 14.0 .551 107 4.213 105.3 4.146 60 2.362 1.7 .067 20 290 DIN 6537 K 13.00 .512 105.7 4.161 8 14 860. -1300-104A1-NM 14.0 .551 190 7.480 188.3 7.413 140 5.512 1.7 .067 20 290 coromant 13.10 .516 41.0 1.614 3 14 860. -1310-039A1-NM 14.0 .551 107 4.213 105.2 4.142 60 2.362 1.8 .071 20 290 DIN 6537 K 13.10 .516 106.5 4.193 8 14 860. -1310-105A1-NM 14.0 .551 190 7.480 188.2 7.409 140 5.512 1.8 .071 20 290 coromant 13.50 .531 42.3 1.665 3 14 860. -1350-041A1-NM 14.0 .551 107 4.213 105.2 4.142 60 2.362 1.8 .071 20 290 DIN 6537 K 13.50 .531 109.8 4.323 8 14 860. -1350-108A1-NM 14.0 .551 190 7.480 188.2 7.409 140 5.512 1.8 .071 20 290 coromant 13.89 .547 43.3 1.705 3 14 860. -1389-042A1-NM 14.0 .551 107 4.213 105.1 4.138 60 2.362 1.9 .075 20 290 DIN 6537 K 14.00 .551 43.9 1.728 3 14 860. -1400-042A1-NM 14.0 .551 107 4.213 105.1 4.138 60 2.362 1.9 .075 20 290 DIN 6537 K 14.00 .551 113.9 4.484 8 14 860. -1400-112A1-NM 14.0 .551 190 7.480 188.1 7.406 140 5.512 1.9 .075 20 290 coromant 14.20 .559 44.5 1.752 3 16 860. -1420-043A1-NM 16.0 .630 115 4.528 113.1 4.453 65 2.559 1.9 .075 20 290 DIN 6537 K 14.29 .563 44.8 1.764 3 16 860. -1429-043A1-NM 16.0 .630 115 4.528 113.1 4.453 65 2.559 1.9 .075 20 290 DIN 6537 K 14.50 .571 45.4 1.787 3 16 860. -1450-044A1-NM 16.0 .630 115 4.528 113.1 4.453 65 2.559 1.9 .075 20 290 DIN 6537 K 14.50 .571 117.9 4.642 8 16 860. -1450-116A1-NM 16.0 .630 213 8.386 211.1 8.311 160 6.299 1.9 .075 20 290 coromant 14.68 .578 119.4 4.701 8 16 860. -1468-117A1-NM 16.0 .630 213 8.386 211.0 8.307 160 6.299 2.0 .079 20 290 coromant 14.75 .581 46.2 1.819 3 16 860. -1475-044A1-NM 16.0 .630 115 4.528 113.0 4.449 65 2.559 2.0 .079 20 290 DIN 6537 K 15.00 .591 47.0 1.850 3 16 860. -1500-045A1-NM 16.0 .630 115 4.528 113.0 4.449 65 2.559 2.0 .079 20 290 DIN 6537 K 15.00 .591 122.0 4.803 8 16 860. -1500-120A1-NM 16.0 .630 213 8.386 211.0 8.307 160 6.299 2.0 .079 20 290 coromant 15.50 .610 48.6 1.913 3 16 860. -1550-047A1-NM 16.0 .630 115 4.528 112.9 4.445 65 2.559 2.1 .083 20 290 DIN 6537 K 15.50 .610 126.1 4.965 8 16 860. -1550-124A1-NM 16.0 .630 213 8.386 210.9 8.303 160 6.299 2.1 .083 20 290 coromant 16.00 .630 49.0 1.929 3 16 860. -1600-048A1-NM 16.0 .630 115 4.528 112.9 4.445 65 2.559 2.1 .083 20 290 DIN 6537 K 16.00 .630 130.1 5.122 8 16 860. -1600-128A1-NM 16.0 .630 213 8.386 210.9 8.303 160 6.299 2.1 .083 20 290 coromant 17.00 .669 53.3 2.098 3 18 860. -1700-051A1-NM 18.0 .709 123 4.843 120.7 4.752 73 2.874 2.3 .091 20 290 DIN 6537 K 17.00 .669 138.3 5.445 8 18 860. -1700-136A1-NM 18.0 .709 234 9.213 231.7 9.122 180 7.087 2.3 .091 20 290 coromant 17.50 .689 54.8 2.157 3 18 860. -1750-053A1-NM 18.0 .709 123 4.843 120.7 4.752 73 2.874 2.3 .091 20 290 DIN 6537 K C D E B 44 B76 E28 E14 SANDVIK
