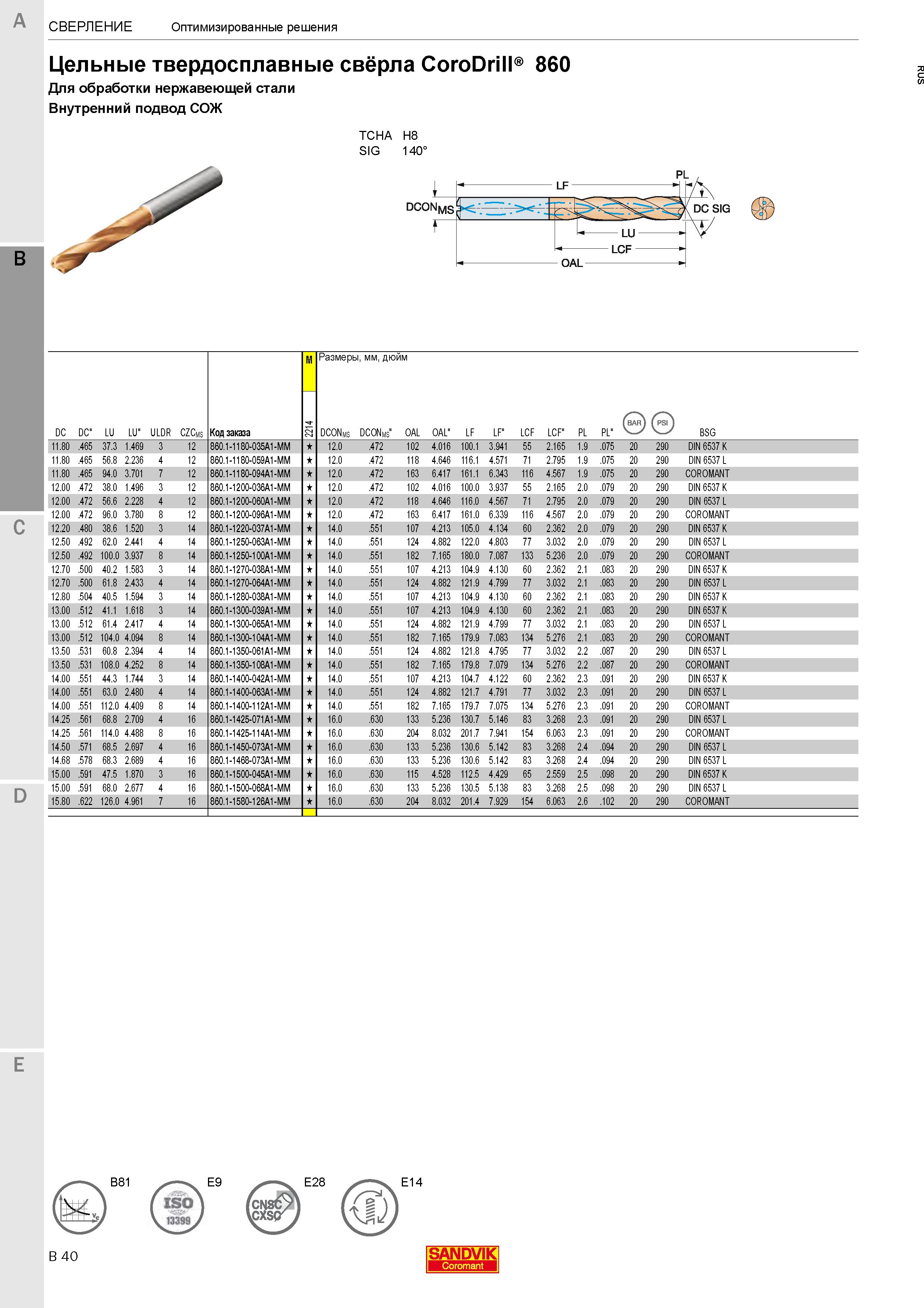

240 Каталог SANDVIK COROMANT 2020 Режущий цельный инструмент по металлу Стр.B40

Каталог SANDVIK COROMANT 2020 Цельный инструмент Стр. B40 0240 Lab2u

Сверление Оптимизированные решения Цельные твердосплавные свёрла CoroDrill 860 Для обработки нержавеющей стали Внутренний подвод СОЖ TCHA H8 SIG 140 DC DC" LU R D U LU CZCms Код заказа M 4 122 Размеры, мм, дюйм DCONms DCONms" OAL AL O LF LF" LCF LCF" PL PL" BSG 11.80 .465 37.3 1.469 3 12 860.1-1180-035A1-MM 12.0 .472 102 4.016 100.1 3.941 55 2.165 1.9 .075 20 290 DIN 6537 K 11.80 .465 56.8 2.236 4 12 860.1-1180-059A1-MM 12.0 .472 118 4.646 116.1 4.571 71 2.795 1.9 .075 20 290 DIN 6537 L 11.80 .465 94.0 3.701 7 12 860.1-1180-094A1-MM 12.0 .472 163 6.417 161.1 6.343 116 4.567 1.9 .075 20 290 COROMANT 12.00 .472 38.0 1.496 3 12 860.1-1200-036A1-MM 12.0 .472 102 4.016 100.0 3.937 55 2.165 2.0 .079 20 290 DIN 6537 K 12.00 .472 56.6 2.228 4 12 860.1-1200-060A1-MM 12.0 .472 118 4.646 116.0 4.567 71 2.795 2.0 .079 20 290 DIN 6537 L 12.00 .472 96.0 3.780 8 12 860.1-1200-096A1-MM 12.0 .472 163 6.417 161.0 6.339 116 4.567 2.0 .079 20 290 COROMANT 12.20 .480 38.6 1.520 3 14 860.1-1220-037A1-MM 14.0 .551 107 4.213 105.0 4.134 60 2.362 2.0 .079 20 290 DIN 6537 K 12.50 .492 62.0 2.441 4 14 860.1-1250-063A1-MM 14.0 .551 124 4.882 122.0 4.803 77 3.032 2.0 .079 20 290 DIN 6537 L 12.50 .492 100.0 3.937 8 14 860.1-1250-100A1-MM 14.0 .551 182 7.165 180.0 7.087 133 5.236 2.0 .079 20 290 COROMANT 12.70 .500 40.2 1.583 3 14 860.1-1270-038A1-MM 14.0 .551 107 4.213 104.9 4.130 60 2.362 2.1 .083 20 290 DIN 6537 K 12.70 .500 61.8 2.433 4 14 860.1-1270-064A1-MM 14.0 .551 124 4.882 121.9 4.799 77 3.032 2.1 .083 20 290 DIN 6537 L 12.80 .504 40.5 1.594 3 14 860.1-1280-038A1-MM 14.0 .551 107 4.213 104.9 4.130 60 2.362 2.1 .083 20 290 DIN 6537 K 13.00 .512 41.1 1.618 3 14 860.1-1300-039A1-MM 14.0 .551 107 4.213 104.9 4.130 60 2.362 2.1 .083 20 290 DIN 6537 K 13.00 .512 61.4 2.417 4 14 860.1-1300-065A1-MM 14.0 .551 124 4.882 121.9 4.799 77 3.032 2.1 .083 20 290 DIN 6537 L 13.00 .512 104.0 4.094 8 14 860.1-1300-104A1-MM 14.0 .551 182 7.165 179.9 7.083 134 5.276 2.1 .083 20 290 COROMANT 13.50 .531 60.8 2.394 4 14 860.1-1350-061A1-MM 14.0 .551 124 4.882 121.8 4.795 77 3.032 2.2 .087 20 290 DIN 6537 L 13.50 .531 108.0 4.252 8 14 860.1-1350-108A1-MM 14.0 .551 182 7.165 179.8 7.079 134 5.276 2.2 .087 20 290 COROMANT 14.00 .551 44.3 1.744 3 14 860.1-1400-042A1-MM 14.0 .551 107 4.213 104.7 4.122 60 2.362 2.3 .091 20 290 DIN 6537 K 14.00 .551 63.0 2.480 4 14 860.1-1400-063A1-MM 14.0 .551 124 4.882 121.7 4.791 77 3.032 2.3 .091 20 290 DIN 6537 L 14.00 .551 112.0 4.409 8 14 860.1-1400-112A1-MM 14.0 .551 182 7.165 179.7 7.075 134 5.276 2.3 .091 20 290 COROMANT 14.25 .561 68.8 2.709 4 16 860.1-1425-071A1-MM 16.0 .630 133 5.236 130.7 5.146 83 3.268 2.3 .091 20 290 DIN 6537 L 14.25 .561 114.0 4.488 8 16 860.1-1425-114A1-MM 16.0 .630 204 8.032 201.7 7.941 154 6.063 2.3 .091 20 290 COROMANT 14.50 .571 68.5 2.697 4 16 860.1-1450-073A1-MM 16.0 .630 133 5.236 130.6 5.142 83 3.268 2.4 .094 20 290 DIN 6537 L 14.68 .578 68.3 2.689 4 16 860.1-1468-073A1-MM 16.0 .630 133 5.236 130.6 5.142 83 3.268 2.4 .094 20 290 DIN 6537 L 15.00 .591 47.5 1.870 3 16 860.1-1500-045A1-MM 16.0 .630 115 4.528 112.5 4.429 65 2.559 2.5 .098 20 290 DIN 6537 K 15.00 .591 68.0 2.677 4 16 860.1-1500-068A1-MM 16.0 .630 133 5.236 130.5 5.138 83 3.268 2.5 .098 20 290 DIN 6537 L 15.80 .622 126.0 4.961 7 16 860.1-1580-126A1-MM 16.0 .630 204 8.032 201.4 7.929 154 6.063 2.6 .102 20 290 COROMANT C D E B 40 B81 E28 E14 SANDVIK
