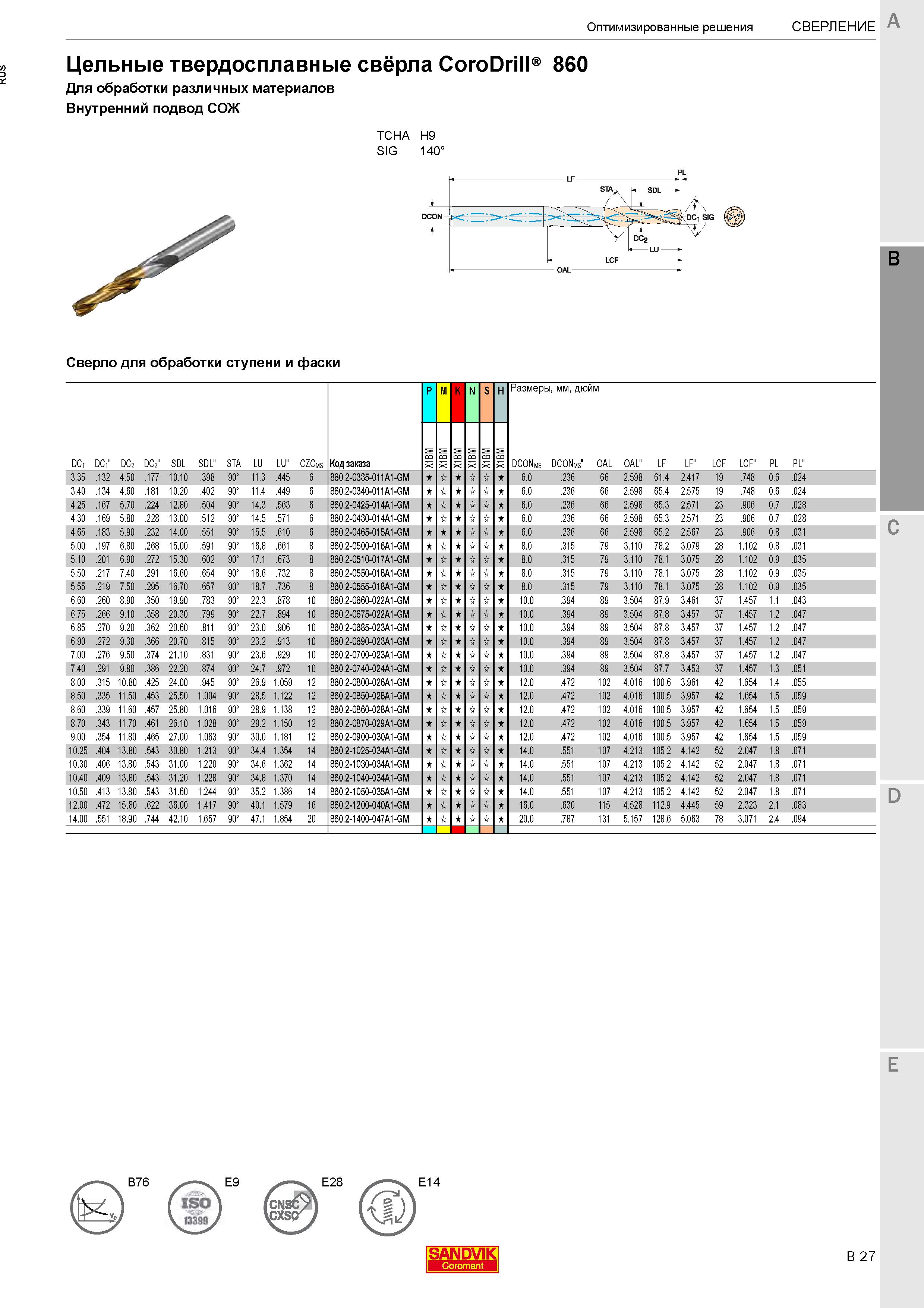

227 Каталог SANDVIK COROMANT 2020 Режущий цельный инструмент по металлу Стр.B27

Каталог SANDVIK COROMANT 2020 Цельный инструмент Стр. B27 0227 Lab2u

Оптимизированные решения Сверление Цельные твердосплавные свёрла CoroDrill 860 Для обработки различных материалов Внутренний подвод СОЖ TCHA H9 SIG 140 Сверло для обработки ступени и фаски B P M K N S H Размеры, мм, дюйм DC1 DC1" DC2 DC2" SDL DL S STA LU LU" CZCms Код заказа 3 X 3 X 3 X 3 X 3 X 3 X DCONms DCONms" 0AL 0AL" LF LF" LCF LCF" PL PL" 3.35 .132 4.50 .177 10.10 .398 90 11.3 .445 6 860.2-0335-011A1-GM 6.0 .236 66 2.598 61.4 2.417 19 .748 0.6 .024 3.40 .134 4.60 .181 10.20 .402 90 11.4 .449 6 860.2-0340-011A1-GM 6.0 .236 66 2.598 65.4 2.575 19 .748 0.6 .024 4.25 .167 5.70 .224 12.80 .504 90 14.3 .563 6 860.2-0425-014A1-GM 6.0 .236 66 2.598 65.3 2.571 23 .906 0.7 .028 4.30 .169 5.80 .228 13.00 .512 90 14.5 .571 6 860.2-0430-014A1-GM 6.0 .236 66 2.598 65.3 2.571 23 .906 0.7 .028 4.65 .183 5.90 .232 14.00 .551 90 15.5 .610 6 860.2-0465-015A1-GM 6.0 .236 66 2.598 65.2 2.567 23 .906 0.8 .031 5.00 .197 6.80 .268 15.00 .591 90 16.8 .661 8 860.2-0500-016A1-GM 8.0 .315 79 3.110 78.2 3.079 28 1.102 0.8 .031 5.10 .201 6.90 .272 15.30 .602 90 17.1 .673 8 860.2-0510-017A1-GM 8.0 .315 79 3.110 78.1 3.075 28 1.102 0.9 .035 5.50 .217 7.40 .291 16.60 .654 90 18.6 .732 8 860.2-0550-018A1-GM 8.0 .315 79 3.110 78.1 3.075 28 1.102 0.9 .035 5.55 .219 7.50 .295 16.70 .657 90 18.7 .736 8 860.2-0555-018A1-GM 8.0 .315 79 3.110 78.1 3.075 28 1.102 0.9 .035 6.60 .260 8.90 .350 19.90 .783 90 22.3 .878 10 860.2-0660-022A1-GM 10.0 .394 89 3.504 87.9 3.461 37 1.457 1.1 .043 6.75 .266 9.10 .358 20.30 .799 90 22.7 .894 10 860.2-0675-022A1-GM 10.0 .394 89 3.504 87.8 3.457 37 1.457 1.2 .047 6.85 .270 9.20 .362 20.60 .811 90 23.0 .906 10 860.2-0685-023A1-GM 10.0 .394 89 3.504 87.8 3.457 37 1.457 1.2 .047 6.90 .272 9.30 .366 20.70 .815 90 23.2 .913 10 860.2-0690-023A1-GM 10.0 .394 89 3.504 87.8 3.457 37 1.457 1.2 .047 7.00 .276 9.50 .374 21.10 .831 90 23.6 .929 10 860.2-0700-023A1-GM 10.0 .394 89 3.504 87.8 3.457 37 1.457 1.2 .047 7.40 .291 9.80 .386 22.20 .874 90 24.7 .972 10 860.2-0740-024A1-GM 10.0 .394 89 3.504 87.7 3.453 37 1.457 1.3 .051 8.00 .315 10.80 .425 24.00 .945 90 26.9 1.059 12 860.2-0800-026A1-GM 12.0 .472 102 4.016 100.6 3.961 42 1.654 1.4 .055 8.50 .335 11.50 .453 25.50 1.004 90 28.5 1.122 12 860.2-0850-028A1-GM 12.0 .472 102 4.016 100.5 3.957 42 1.654 1.5 .059 8.60 .339 11.60 .457 25.80 1.016 90 28.9 1.138 12 860.2-0860-028A1-GM 12.0 .472 102 4.016 100.5 3.957 42 1.654 1.5 .059 8.70 .343 11.70 .461 26.10 1.028 90 29.2 1.150 12 860.2-0870-029A1-GM 12.0 .472 102 4.016 100.5 3.957 42 1.654 1.5 .059 9.00 .354 11.80 .465 27.00 1.063 90 30.0 1.181 12 860.2-0900-030A1-GM 12.0 .472 102 4.016 100.5 3.957 42 1.654 1.5 .059 10.25 .404 13.80 .543 30.80 1.213 90 34.4 1.354 14 860.2-1025-034A1-GM 14.0 .551 107 4.213 105.2 4.142 52 2.047 1.8 .071 10.30 .406 13.80 .543 31.00 1.220 90 34.6 1.362 14 860.2-1030-034A1-GM 14.0 .551 107 4.213 105.2 4.142 52 2.047 1.8 .071 10.40 .409 13.80 .543 31.20 1.228 90 34.8 1.370 14 860.2-1040-034A1-GM 14.0 .551 107 4.213 105.2 4.142 52 2.047 1.8 .071 10.50 .413 13.80 .543 31.60 1.244 90 35.2 1.386 14 860.2-1050-035A1-GM 14.0 .551 107 4.213 105.2 4.142 52 2.047 1.8 .071 12.00 .472 15.80 .622 36.00 1.417 90 40.1 1.579 16 860.2-1200-040A1-GM 16.0 .630 115 4.528 112.9 4.445 59 2.323 2.1 .083 14.00 .551 18.90 .744 42.10 1.657 90 47.1 1.854 20 860.2-1400-047A1-GM 20.0 .787 131 5.157 128.6 5.063 78 3.071 2.4 .094 C D E B76 E28 E14 SANDVIK B 27
