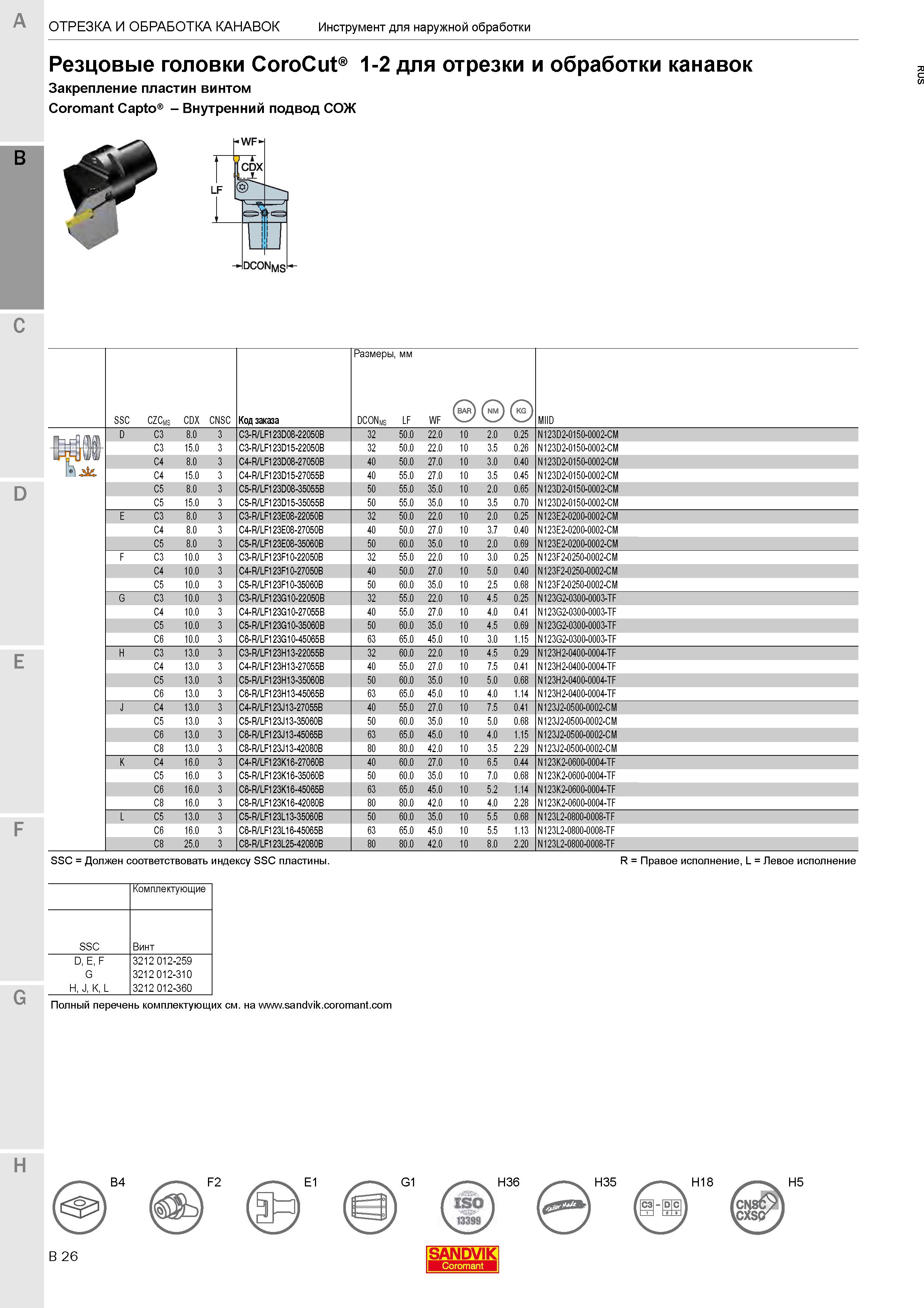

330 Каталог SANDVIK COROMANT 2020 Инструмент для токарной обработки Пластины Резцы Оснастка Стр.B26

Каталог SANDVIK COROMANT 2020 Инструмент для токарной обработки Стр. B26 0330 Lab2u

Отрезка и обработка канавок Инструмент для наружной обработки Резцовые головки CoroCut 1-2 для отрезки и обработки канавок Закрепление пластин винтом Coromant Capto Внутренний подвод СОЖ B - lDCON ygU- C SSC CZCms CDX CNSC Код заказа Размеры DCONms мм LF WF (bar) MIID D C3 8.0 3 C3-R/LF123D08-22050B 32 50.0 22.0 10 2.0 0.25 N123D2-0150-0002-CM C3 15.0 3 C3-R/LF123D15-22050B 32 50.0 22.0 10 3.5 0.26 N123D2-0150-0002-CM C4 8.0 3 C4-R/LF123D08-27050B 40 50.0 27.0 10 3.0 0.40 N123D2-0150-0002-CM C4 15.0 3 C4-R/LF123D15-27055B 40 55.0 27.0 10 3.5 0.45 N123D2-0150-0002-CM C5 8.0 3 C5-R/LF123D08-35055B 50 55.0 35.0 10 2.0 0.65 N123D2-0150-0002-CM C5 15.0 3 C5-R/LF123D15-35055B 50 55.0 35.0 10 3.5 0.70 N123D2-0150-0002-CM E C3 8.0 3 C3-R/LF123E08-22050B 32 50.0 22.0 10 2.0 0.25 N123E2-0200-0002-CM C4 8.0 3 C4-R/LF123E08-27050B 40 50.0 27.0 10 3.7 0.40 N123E2-0200-0002-CM C5 8.0 3 C5-R/LF123E08-35060B 50 60.0 35.0 10 2.0 0.69 N123E2-0200-0002-CM F C3 10.0 3 C3-R/LF123F10-22050B 32 55.0 22.0 10 3.0 0.25 N123F2-0250-0002-CM C4 10.0 3 C4-R/LF123F10-27050B 40 50.0 27.0 10 5.0 0.40 N123F2-0250-0002-CM C5 10.0 3 C5-R/LF123F10-35060B 50 60.0 35.0 10 2.5 0.68 N123F2-0250-0002-CM G C3 10.0 3 C3-R/LF123G10-22050B 32 55.0 22.0 10 4.5 0.25 N123G2-0300-0003-TF C4 10.0 3 C4-R/LF123G10-27055B 40 55.0 27.0 10 4.0 0.41 N123G2-0300-0003-TF C5 10.0 3 C5-R/LF123G10-35060B 50 60.0 35.0 10 4.5 0.69 N123G2-0300-0003-TF C6 10.0 3 C6-R/LF123G10-45065B 63 65.0 45.0 10 3.0 1.15 N123G2-0300-0003-TF H C3 13.0 3 C3-R/LF123H13-22055B 32 60.0 22.0 10 4.5 0.29 N123H2-0400-0004-TF C4 13.0 3 C4-R/LF123H13-27055B 40 55.0 27.0 10 7.5 0.41 N123H2-0400-0004-TF C5 13.0 3 C5-R/LF123H13-35060B 50 60.0 35.0 10 5.0 0.68 N123H2-0400-0004-TF C6 13.0 3 C6-R/LF123H13-45065B 63 65.0 45.0 10 4.0 1.14 N123H2-0400-0004-TF J C4 13.0 3 C4-R/LF123J13-27055B 40 55.0 27.0 10 7.5 0.41 N123J2-0500-0002-CM C5 13.0 3 C5-R/LF123J13-35060B 50 60.0 35.0 10 5.0 0.68 N123J2-0500-0002-CM C6 13.0 3 C6-R/LF123J13-45065B 63 65.0 45.0 10 4.0 1.15 N123J2-0500-0002-CM C8 13.0 3 C8-R/LF123J13-42080B 80 80.0 42.0 10 3.5 2.29 N123J2-0500-0002-CM K C4 16.0 3 C4-R/LF123K16-27060B 40 60.0 27.0 10 6.5 0.44 N123K2-0600-0004-TF C5 16.0 3 C5-R/LF123K16-35060B 50 60.0 35.0 10 7.0 0.68 N123K2-0600-0004-TF C6 16.0 3 C6-R/LF123K16-45065B 63 65.0 45.0 10 5.2 1.14 N123K2-0600-0004-TF C8 16.0 3 C8-R/LF123K16-42080B 80 80.0 42.0 10 4.0 2.28 N123K2-0600-0004-TF L C5 13.0 3 C5-R/LF123L13-35060B 50 60.0 35.0 10 5.5 0.68 N123L2-0800-0008-TF C6 16.0 3 C6-R/LF123L16-45065B 63 65.0 45.0 10 5.5 1.13 N123L2-0800-0008-TF C8 25.0 3 C8-R/LF123L25-42080B 80 80.0 42.0 10 8.0 2.20 N123L2-0800-0008-TF jk. SSC = Должен соответствовать индексу SSC пластины. R = Правое исполнение, L = Левое исполнение G Комплектующие SSC Винт D, E, F G H, J, K, L 3212 012-259 3212 012-310 3212 012-360 Полный перечень комплектующих см. на H B4 F2 E1 B 26 G1 H36 SANDVIK H35 H18
