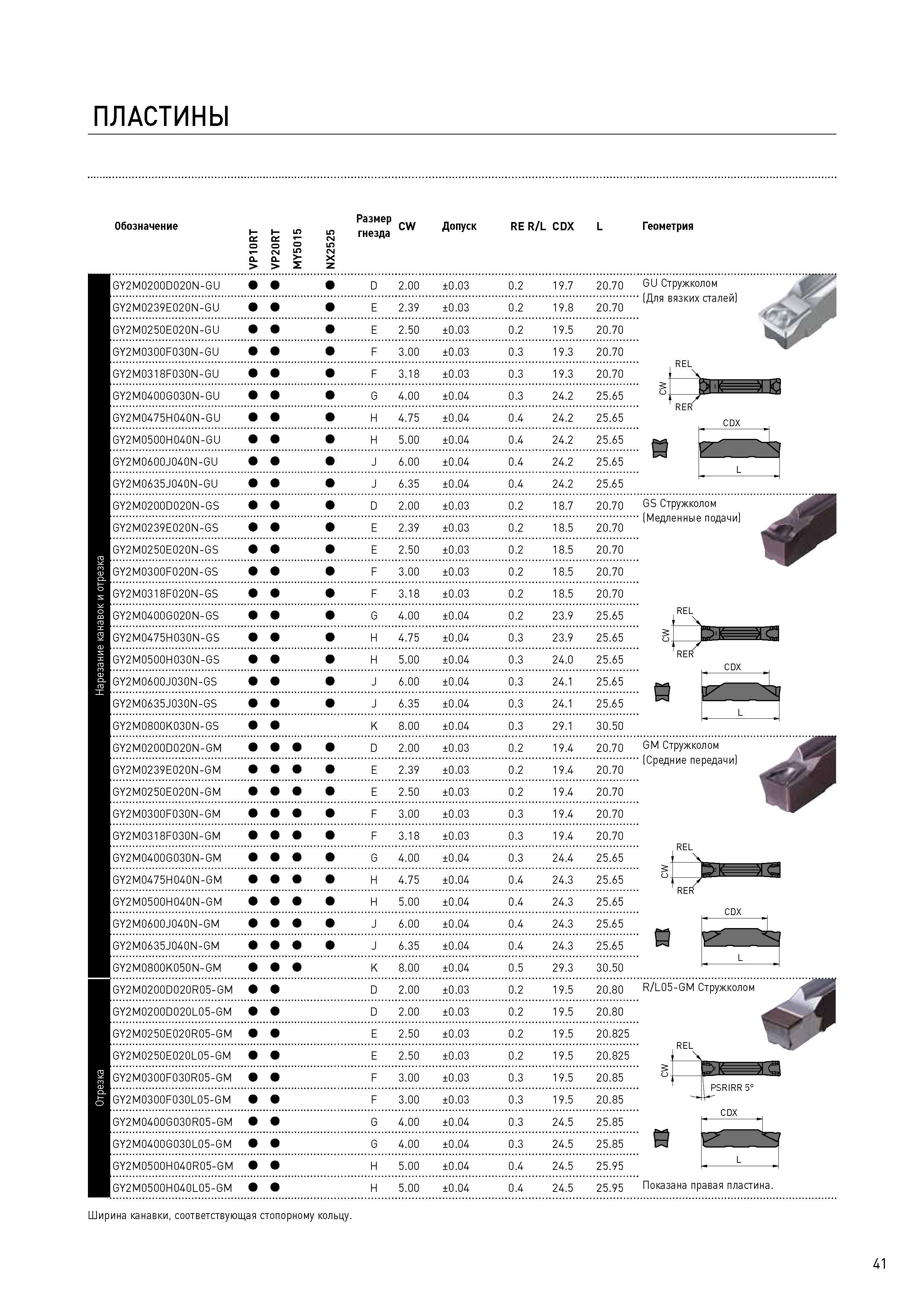

ПЛАСТИНЫ Обозначение VP10RT VP20RT MY5015 NX2525 Размер гнезда CW Допуск RE R/L CDX L GY2M0200D020N-GU D 2.00 ±0.03 0.2 19.7 20.70 GY2M0239E020N-GU E 2.39 ±0.03 0.2 19.8 20.70 GY2M0250E020N-GU E 2.50 ±0.03 0.2 19.5 20.70 GY2M0300F030N-GU F 3.00 ±0.03 0.3 19.3 20.70 GY2M0318F030N-GU F 3.18 ±0.03 0.3 19.3 20.70 GY2M0400G030N-GU G 4.00 ±0.04 0.3 24.2 25.65 GY2M0475H040N-GU H 4.75 ±0.04 0.4 24.2 25.65 GY2M0500H040N-GU H 5.00 ±0.04 0.4 24.2 25.65 GY2M0600J040N-GU J 6.00 ±0.04 0.4 24.2 25.65 GY2M0635J040N-GU J 6.35 ±0.04 0.4 24.2 25.65 GY2M0200D020N-GS D 2.00 ±0.03 0.2 18.7 20.70 GY2M0239E020N-GS E 2.39 ±0.03 0.2 18.5 20.70 GY2M0250E020N-GS E 2.50 ±0.03 0.2 18.5 20.70 GY2M0300F020N-GS F 3.00 ±0.03 0.2 18.5 20.70 GY2M0318F020N-GS F 3.18 ±0.03 0.2 18.5 20.70 GY2M0400G020N-GS G 4.00 ±0.04 0.2 23.9 25.65 GY2M0475H030N-GS H 4.75 ±0.04 0.3 23.9 25.65 GY2M0500H030N-GS H 5.00 ±0.04 0.3 24.0 25.65 GY2M0600J030N-GS J 6.00 ±0.04 0.3 24.1 25.65 GY2M0635J030N-GS J 6.35 ±0.04 0.3 24.1 25.65 GY2M0800K030N-GS K 8.00 ±0.04 0.3 29.1 30.50 GY2M0200D020N-GM D 2.00 ±0.03 0.2 19.4 20.70 GY2M0239E020N-GM E 2.39 ±0.03 0.2 19.4 20.70 GY2M0250E020N-GM E 2.50 ±0.03 0.2 19.4 20.70 GY2M0300F030N-GM F 3.00 ±0.03 0.3 19.4 20.70 GY2M0318F030N-GM F 3.18 ±0.03 0.3 19.4 20.70 GY2M0400G030N-GM G 4.00 ±0.04 0.3 24.4 25.65 GY2M0475H040N-GM H 4.75 ±0.04 0.4 24.3 25.65 GY2M0500H040N-GM H 5.00 ±0.04 0.4 24.3 25.65 GY2M0600J040N-GM J 6.00 ±0.04 0.4 24.3 25.65 GY2M0635J040N-GM J 6.35 ±0.04 0.4 24.3 25.65 GY2M0800K050N-GM K 8.00 ±0.04 0.5 29.3 30.50 GY2M0200D020R05-GM D 2.00 ±0.03 0.2 19.5 20.80 GY2M0200D020L05-GM D 2.00 ±0.03 0.2 19.5 20.80 GY2M0250E020R05-GM E 2.50 ±0.03 0.2 19.5 20.825 GY2M0250E020L05-GM E 2.50 ±0.03 0.2 19.5 20.825 GY2M0300F030R05-GM F 3.00 ±0.03 0.3 19.5 20.85 GY2M0300F030L05-GM F 3.00 ±0.03 0.3 19.5 20.85 GY2M0400G030R05-GM G 4.00 ±0.04 0.3 24.5 25.85 GY2M0400G030L05-GM G 4.00 ±0.04 0.3 24.5 25.85 GY2M0500H040R05-GM H 5.00 ±0.04 0.4 24.5 25.95 GY2M0500H040L05-GM H 5.00 ±0.04 0.4 24.5 25.95 Геометрия (Для вязких сталей) GS Стружколом (Медленные подачи) rz RER (Средние передачи) CDX ш \ PSRIRR 5° CDX L W' Показана правая пластина. Ширина канавки, соответствующая стопорному кольцу. REL REL L REL 41
