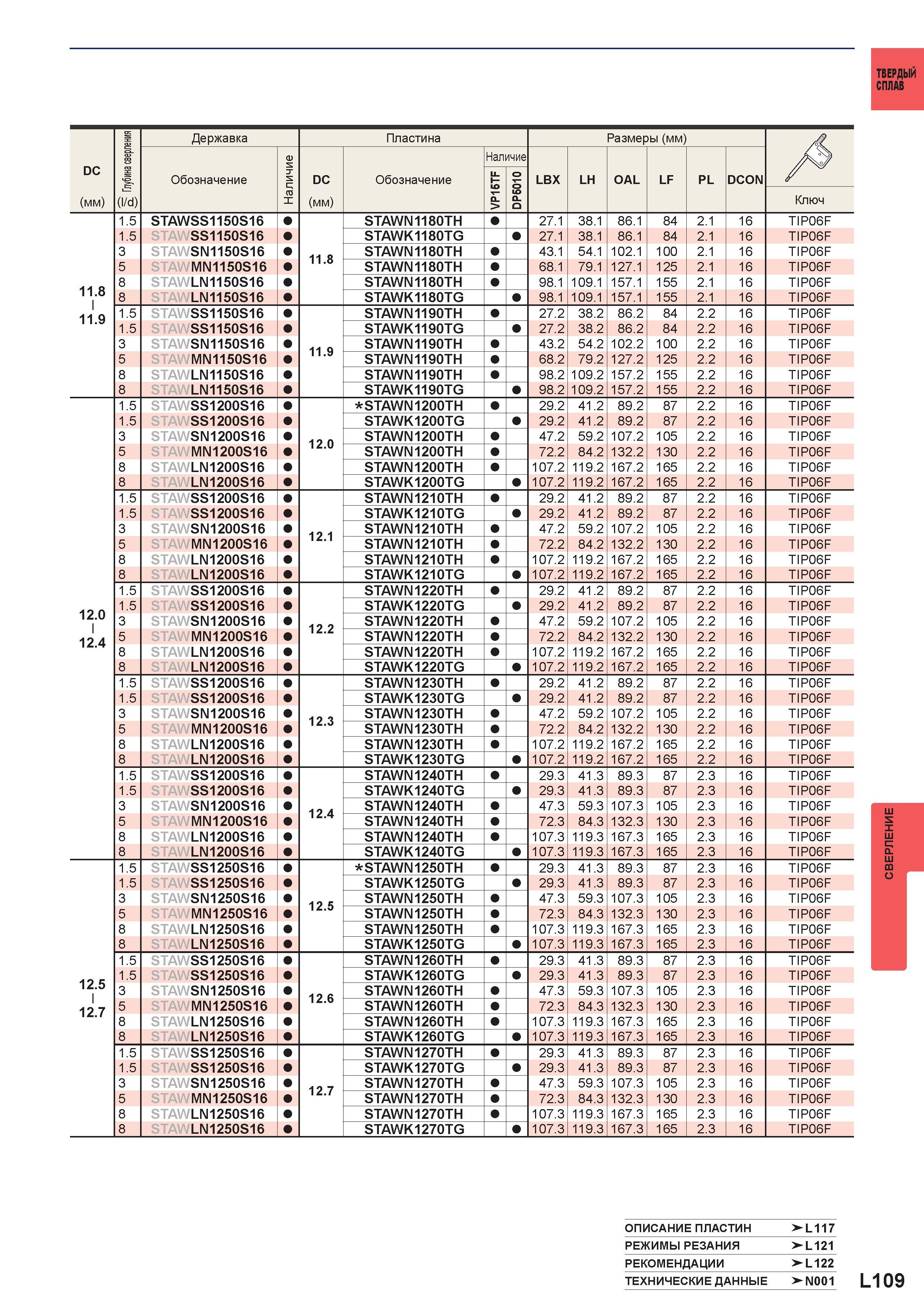

1235 Каталог MITSUBISHI 2016 Вращающийся и токарный режущий инструмент Стр.L109

Каталог MITSUBISHI 2016 Станочный режущий инструмент Стр. L109 1235 Lab2u

Твердый сплав V СЦ со га .сц (I/d) Державка Пластина Размеры (мм) DC Наличие Наличие Обозначение DC Обозначение u 1 5 CL > О 01 5 Q О LBX LH OAL LF PL DCON V (мм) Ключ 1.5 STAWSS1150S16 STAWN1180TH 27.1 38.1 86.1 84 2.1 16 TIP06F 1.5 STAWSS1150S16 STAWK1180TG 27.1 38.1 86.1 84 2.1 16 TIP06F 3 STAWSN1150S16 11.8 STAWN1180TH 43.1 54.1 102.1 100 2.1 16 TIP06F 5 STAWMN1150S16 STAWN1180TH 68.1 79.1 127.1 125 2.1 16 TIP06F 11.8 8 STAWLN1150S16 STAWN1180TH 98.1 109.1 157.1 155 2.1 16 TIP06F 8 STAWLN1150S16 STAWK1180TG 98.1 109.1 157.1 155 2.1 16 TIP06F 11.9 1.5 STAWSS1150S16 STAWN1190TH 27.2 38.2 86.2 84 2.2 16 TIP06F 1.5 STAWSS1150S16 STAWK1190TG 27.2 38.2 86.2 84 2.2 16 TIP06F 3 STAWSN1150S16 11.9 STAWN1190TH 43.2 54.2 102.2 100 2.2 16 TIP06F 5 STAWMN1150S16 STAWN1190TH 68.2 79.2 127.2 125 2.2 16 TIP06F 8 STAWLN1150S16 STAWN1190TH 98.2 109.2 157.2 155 2.2 16 TIP06F 8 STAWLN1150S16 STAWK1190TG 98.2 109.2 157.2 155 2.2 16 TIP06F 1.5 STAWSS1200S16 STAWN1200TH 29.2 41.2 89.2 87 2.2 16 TIP06F 1.5 STAWSS1200S16 STAWK1200TG 29.2 41.2 89.2 87 2.2 16 TIP06F 3 STAWSN1200S16 12.0 STAWN1200TH 47.2 59.2 107.2 105 2.2 16 TIP06F 5 STAWMN1200S16 STAWN1200TH 72.2 84.2 132.2 130 2.2 16 TIP06F 8 STAWLN1200S16 STAWN1200TH 107.2 119.2 167.2 165 2.2 16 TIP06F 8 STAWLN1200S16 STAWK1200TG 107.2 119.2 167.2 165 2.2 16 TIP06F 1.5 STAWSS1200S16 STAWN1210TH 29.2 41.2 89.2 87 2.2 16 TIP06F 1.5 STAWSS1200S16 STAWK1210TG 29.2 41.2 89.2 87 2.2 16 TIP06F 3 STAWSN1200S16 12.1 STAWN1210TH 47.2 59.2 107.2 105 2.2 16 TIP06F 5 STAWMN1200S16 STAWN1210TH 72.2 84.2 132.2 130 2.2 16 TIP06F 8 STAWLN1200S16 STAWN1210TH 107.2 119.2 167.2 165 2.2 16 TIP06F 8 STAWLN1200S16 STAWK1210TG 107.2 119.2 167.2 165 2.2 16 TIP06F 1.5 STAWSS1200S16 STAWN1220TH 29.2 41.2 89.2 87 2.2 16 TIP06F 12.0 1.5 STAWSS1200S16 STAWK1220TG 29.2 41.2 89.2 87 2.2 16 TIP06F 3 STAWSN1200S16 12.2 STAWN1220TH 47.2 59.2 107.2 105 2.2 16 TIP06F 12.4 5 STAWMN1200S16 STAWN1220TH 72.2 84.2 132.2 130 2.2 16 TIP06F 8 STAWLN1200S16 STAWN1220TH 107.2 119.2 167.2 165 2.2 16 TIP06F 8 STAWLN1200S16 STAWK1220TG 107.2 119.2 167.2 165 2.2 16 TIP06F 1.5 STAWSS1200S16 STAWN1230TH 29.2 41.2 89.2 87 2.2 16 TIP06F 1.5 STAWSS1200S16 STAWK1230TG 29.2 41.2 89.2 87 2.2 16 TIP06F 3 STAWSN1200S16 12.3 STAWN1230TH 47.2 59.2 107.2 105 2.2 16 TIP06F 5 STAWMN1200S16 STAWN1230TH 72.2 84.2 132.2 130 2.2 16 TIP06F 8 STAWLN1200S16 STAWN1230TH 107.2 119.2 167.2 165 2.2 16 TIP06F 8 STAWLN1200S16 STAWK1230TG 107.2 119.2 167.2 165 2.2 16 TIP06F 1.5 STAWSS1200S16 STAWN1240TH 29.3 41.3 89.3 87 2.3 16 TIP06F 1.5 STAWSS1200S16 STAWK1240TG 29.3 41.3 89.3 87 2.3 16 TIP06F 3 STAWSN1200S16 12.4 STAWN1240TH 47.3 59.3 107.3 105 2.3 16 TIP06F 5 STAWMN1200S16 STAWN1240TH 72.3 84.3 132.3 130 2.3 16 TIP06F 8 STAWLN1200S16 STAWN1240TH 107.3 119.3 167.3 165 2.3 16 TIP06F 8 STAWLN1200S16 STAWK1240TG 107.3 119.3 167.3 165 2.3 16 TIP06F 1.5 STAWSS1250S16 STAWN1250TH 29.3 41.3 89.3 87 2.3 16 TIP06F 1.5 STAWSS1250S16 STAWK1250TG 29.3 41.3 89.3 87 2.3 16 TIP06F 3 STAWSN1250S16 12.5 STAWN1250TH 47.3 59.3 107.3 105 2.3 16 TIP06F 5 STAWMN1250S16 STAWN1250TH 72.3 84.3 132.3 130 2.3 16 TIP06F 8 STAWLN1250S16 STAWN1250TH 107.3 119.3 167.3 165 2.3 16 TIP06F 8 STAWLN1250S16 STAWK1250TG 107.3 119.3 167.3 165 2.3 16 TIP06F 1.5 STAWSS1250S16 STAWN1260TH 29.3 41.3 89.3 87 2.3 16 TIP06F 11 1.5 STAWSS1250S16 STAWK1260TG 29.3 41.3 89.3 87 2.3 16 TIP06F 3 STAWSN1250S16 12.6 STAWN1260TH 47.3 59.3 107.3 105 2.3 16 TIP06F 5 STAWMN1250S16 STAWN1260TH 72.3 84.3 132.3 130 2.3 16 TIP06F 8 STAWLN1250S16 STAWN1260TH 107.3 119.3 167.3 165 2.3 16 TIP06F 8 STAWLN1250S16 STAWK1260TG 107.3 119.3 167.3 165 2.3 16 TIP06F 1.5 STAWSS1250S16 STAWN1270TH 29.3 41.3 89.3 87 2.3 16 TIP06F 1.5 STAWSS1250S16 STAWK1270TG 29.3 41.3 89.3 87 2.3 16 TIP06F 3 STAWSN1250S16 12.7 STAWN1270TH 47.3 59.3 107.3 105 2.3 16 TIP06F 5 STAWMN1250S16 STAWN1270TH 72.3 84.3 132.3 130 2.3 16 TIP06F 8 STAWLN1250S16 STAWN1270TH 107.3 119.3 167.3 165 2.3 16 TIP06F 8 STAWLN1250S16 STAWK1270TG 107.3 119.3 167.3 165 2.3 16 TIP06F ОПИСАНИЕ ПЛАСТИН >L117 Режимы резания >-L121 РЕКОМЕНДАЦИИ >-L122 Краткое руководство по металлообработке на станках >-N001 L109 Сверление
