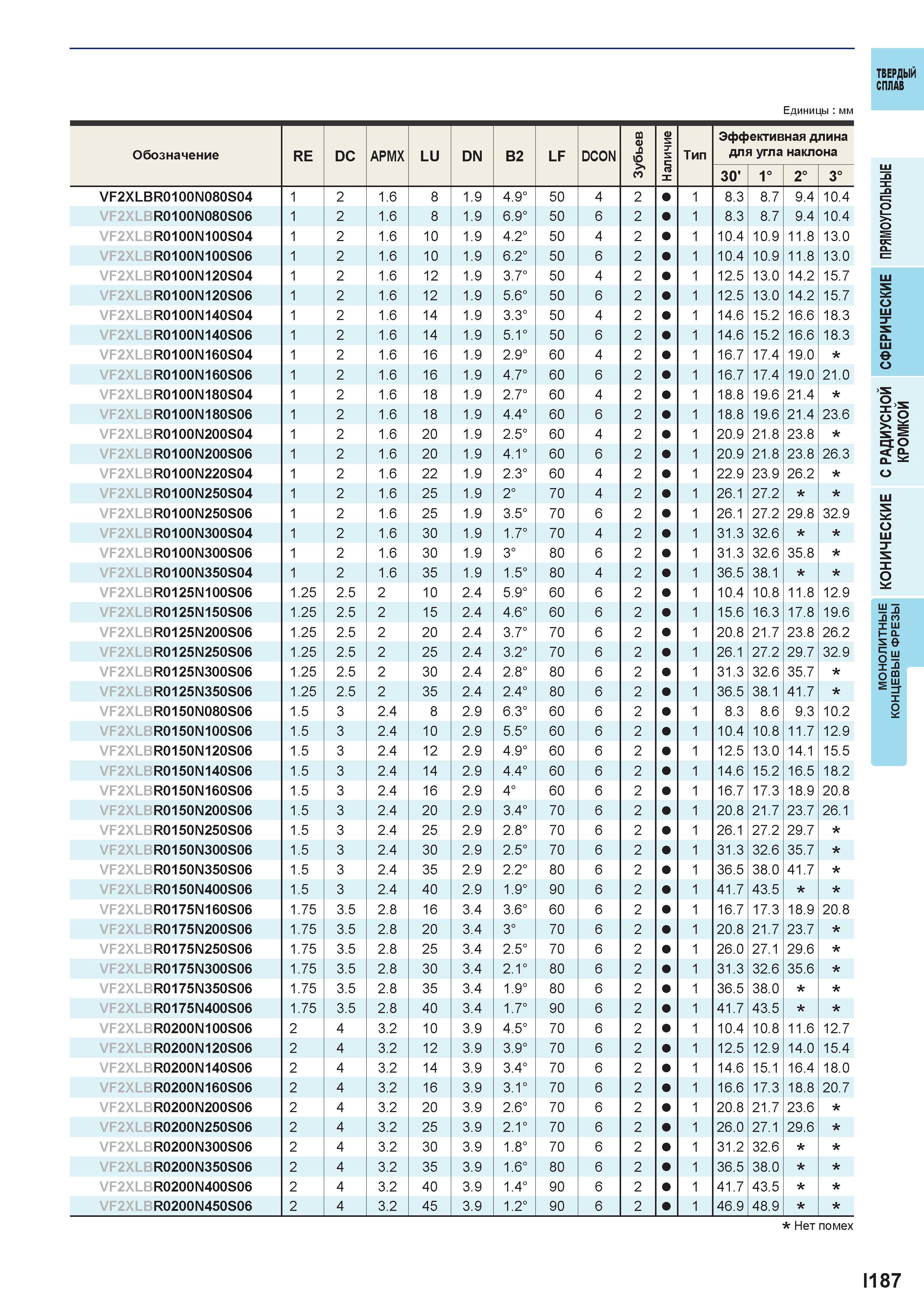

Твердый сплав Единицы мм Обозначение RE DC APMX LU DN B2 LF DC0N m О) .0 б > (U 5 Тип Эффективная длина для угла наклона 30' 1° 2° 3° VF2XLBR0100N080S04 1 2 1.6 8 1.9 4.9° 50 4 2 1 8.3 8.7 9.4 10.4 VF2XLBR0100N080S06 1 2 1.6 8 1.9 6.9° 50 6 2 1 8.3 8.7 9.4 10.4 VF2XLBR0100N100S04 1 2 1.6 10 1.9 -Ps. 2 о 50 4 2 1 10.4 10.9 11.8 13.0 VF2XLBR0100N100S06 1 2 1.6 10 1.9 6.2° 50 6 2 1 10.4 10.9 11.8 13.0 VF2XLBR0100N120S04 1 2 1.6 12 1.9 3.7° 50 4 2 1 12.5 13.0 14.2 15.7 VF2XLBR0100N120S06 1 2 1.6 12 1.9 5.6° 50 6 2 1 12.5 13.0 14.2 15.7 VF2XLBR0100N140S04 1 2 1.6 14 1.9 3.3° 50 4 2 1 14.6 15.2 16.6 18.3 VF2XLBR0100N140S06 1 2 1.6 14 1.9 5.1° 50 6 2 1 14.6 15.2 16.6 18.3 VF2XLBR0100N160S04 1 2 1.6 16 1.9 2.9° 60 4 2 1 16.7 17.4 19.0 VF2XLBR0100N160S06 1 2 1.6 16 1.9 7 о 60 6 2 1 16.7 17.4 19.0 21.0 VF2XLBR0100N180S04 1 2 1.6 18 1.9 2.7° 60 4 2 1 18.8 19.6 21.4 VF2XLBR0100N180S06 1 2 1.6 18 1.9 4.4° 60 6 2 1 18.8 19.6 21.4 23.6 VF2XLBR0100N200S04 1 2 1.6 20 1.9 2.5° 60 4 2 1 20.9 21.8 23.8 VF2XLBR0100N200S06 1 2 1.6 20 1.9 4.1° 60 6 2 1 20.9 21.8 23.8 26.3 VF2XLBR0100N220S04 1 2 1.6 22 1.9 2.3° 60 4 2 1 22.9 23.9 26.2 VF2XLBR0100N250S04 1 2 1.6 25 1.9 2° 70 4 2 1 26.1 27.2 VF2XLBR0100N250S06 1 2 1.6 25 1.9 3.5° 70 6 2 1 26.1 27.2 29.8 32.9 VF2XLBR0100N300S04 1 2 1.6 30 1.9 1.7° 70 4 2 1 31.3 32.6 VF2XLBR0100N300S06 1 2 1.6 30 1.9 3° 80 6 2 1 31.3 32.6 35.8 VF2XLBR0100N350S04 1 2 1.6 35 1.9 1.5° 80 4 2 1 36.5 38.1 VF2XLBR0125N100S06 1.25 2.5 2 10 2.4 5.9° 60 6 2 1 10.4 10.8 11.8 12.9 VF2XLBR0125N150S06 1.25 2.5 2 15 2.4 4.6° 60 6 2 1 15.6 16.3 17.8 19.6 VF2XLBR0125N200S06 1.25 2.5 2 20 2.4 3.7° 70 6 2 1 20.8 21.7 23.8 26.2 VF2XLBR0125N250S06 1.25 2.5 2 25 2.4 3.2° 70 6 2 1 26.1 27.2 29.7 32.9 VF2XLBR0125N300S06 1.25 2.5 2 30 2.4 8 о 80 6 2 1 31.3 32.6 35.7 VF2XLBR0125N350S06 1.25 2.5 2 35 2.4 \J 4 о 80 6 2 1 36.5 38.1 41.7 VF2XLBR0150N080S06 1.5 3 2.4 8 2.9 6.3° 60 6 2 1 8.3 8.6 9.3 10.2 VF2XLBR0150N100S06 1.5 3 2.4 10 2.9 5.5° 60 6 2 1 10.4 10.8 11.7 12.9 VF2XLBR0150N120S06 1.5 3 2.4 12 2.9 9 о 60 6 2 1 12.5 13.0 14.1 15.5 VF2XLBR0150N140S06 1.5 3 2.4 14 2.9 4 о 60 6 2 1 14.6 15.2 16.5 18.2 VF2XLBR0150N160S06 1.5 3 2.4 16 2.9 4° 60 6 2 1 16.7 17.3 18.9 20.8 VF2XLBR0150N200S06 1.5 3 2.4 20 2.9 3.4° 70 6 2 1 20.8 21.7 23.7 26.1 VF2XLBR0150N250S06 1.5 3 2.4 25 2.9 8 о 70 6 2 1 26.1 27.2 29.7 VF2XLBR0150N300S06 1.5 3 2.4 30 2.9 \J 5 о 70 6 2 1 31.3 32.6 35.7 VF2XLBR0150N350S06 1.5 3 2.4 35 2.9 2 о 80 6 2 1 36.5 38.0 41.7 VF2XLBR0150N400S06 1.5 3 2.4 40 2.9 1.9° 90 6 2 1 41.7 43.5 VF2XLBR0175N160S06 1.75 3.5 2.8 16 3.4 3.6° 60 6 2 1 16.7 17.3 18.9 20.8 VF2XLBR0175N200S06 1.75 3.5 2.8 20 3.4 3° 70 6 2 1 20.8 21.7 23.7 VF2XLBR0175N250S06 1.75 3.5 2.8 25 3.4 5 о 70 6 2 1 26.0 27.1 29.6 VF2XLBR0175N300S06 1.75 3.5 2.8 30 3.4 2.1° 80 6 2 1 31.3 32.6 35.6 VF2XLBR0175N350S06 1.75 3.5 2.8 35 3.4 1.9° 80 6 2 1 36.5 38.0 VF2XLBR0175N400S06 1.75 3.5 2.8 40 3.4 1.7° 90 6 2 1 41.7 43.5 VF2XLBR0200N100S06 2 4 3.2 10 3.9 5 о 70 6 2 1 10.4 10.8 11.6 12.7 VF2XLBR0200N120S06 2 4 3.2 12 3.9 3.9° 70 6 2 1 12.5 12.9 14.0 15.4 VF2XLBR0200N140S06 2 4 3.2 14 3.9 3.4° 70 6 2 1 14.6 15.1 16.4 18.0 VF2XLBR0200N160S06 2 4 3.2 16 3.9 3.1° 70 6 2 1 16.6 17.3 18.8 20.7 VF2XLBR0200N200S06 2 4 3.2 20 3.9 6 о 70 6 2 1 20.8 21.7 23.6 VF2XLBR0200N250S06 2 4 3.2 25 3.9 2.1° 70 6 2 1 26.0 27.1 29.6 VF2XLBR0200N300S06 2 4 3.2 30 3.9 1.8° 70 6 2 1 31.2 32.6 VF2XLBR0200N350S06 2 4 3.2 35 3.9 1.6° 80 6 2 1 36.5 38.0 VF2XLBR0200N400S06 2 4 3.2 40 3.9 1.4° 90 6 2 1 41.7 43.5 VF2XLBR0200N450S06 2 4 3.2 45 3.9 1.2° 90 6 2 1 46.9 48.9 i < °- £ i>= о S Ш2 со х I- о. Iе о-я I о Нет помех 1187
