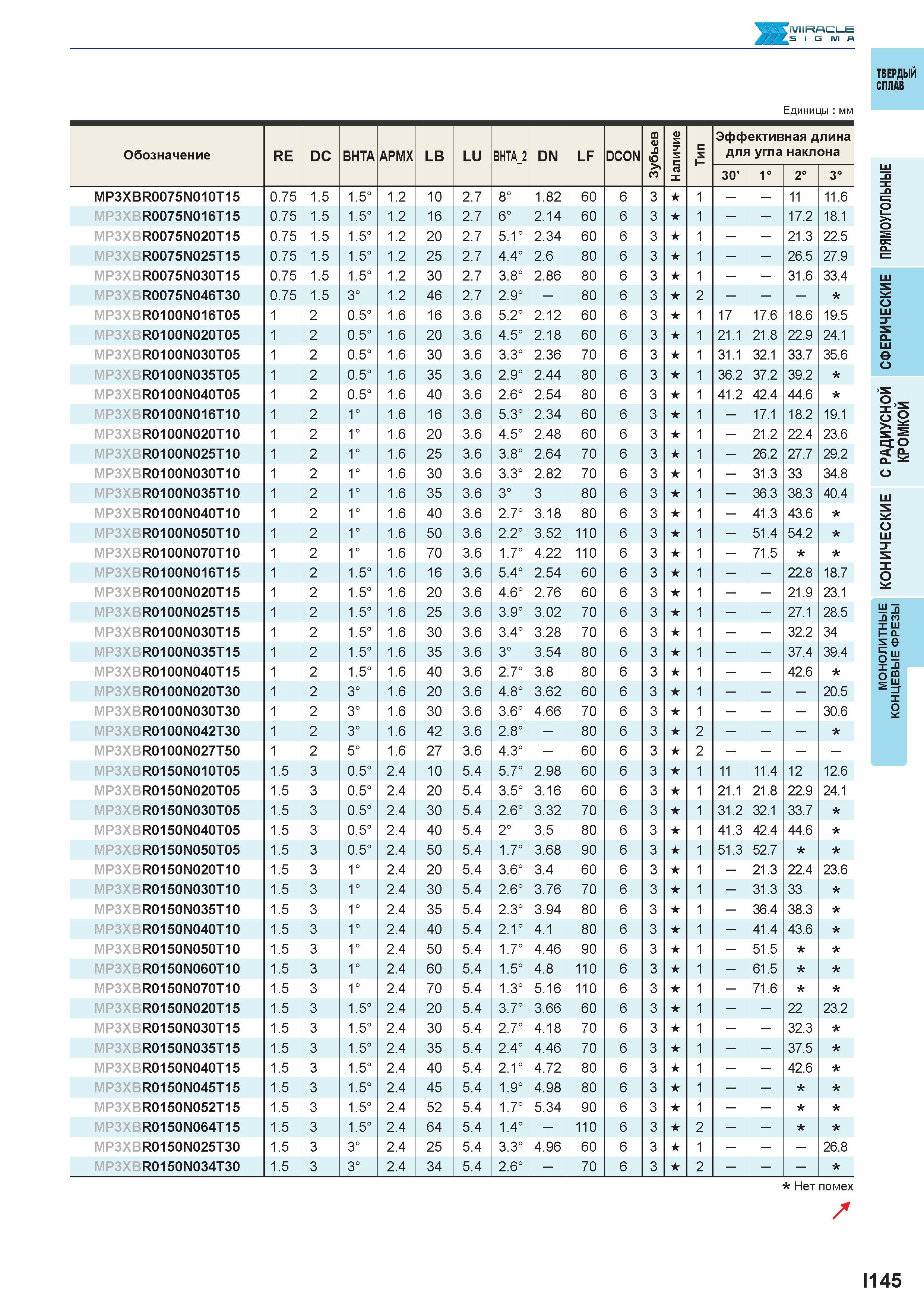

697 Каталог MITSUBISHI 2016 Вращающийся и токарный режущий инструмент Стр.I145

Каталог MITSUBISHI 2016 Станочный режущий инструмент Стр. I145 0697 Lab2u

.MIRACLE Твердый сплав Единицы мм Обозначение RE DC BHTA APMX LB LU BHTA 2 DN LF DCON m .0 б > (U 5 с и Эффективная длина для угла наклона 30' 1° 2° 3° MP3XBR0075N010T15 0.75 1.5 1.5° 1.2 10 2.7 8° 1.82 60 6 3 1 - - 11 11.6 MP3XBR0075N016T15 0.75 1.5 1.5° 1.2 16 2.7 6° 2.14 60 6 3 1 - - 17.2 18.1 MP3XBR0075N020T15 0.75 1.5 1.5° 1.2 20 2.7 5.1° 2.34 60 6 3 1 - - 21.3 22.5 MP3XBR0075N025T15 0.75 1.5 1.5° 1.2 25 2.7 4. 4 о 2.6 80 6 3 1 - - 26.5 27.9 MP3XBR0075N030T15 0.75 1.5 1.5° 1.2 30 2.7 3. 8 о 2.86 80 6 3 1 - - 31.6 33.4 MP3XBR0075N046T30 0.75 1.5 3° 1.2 46 2.7 2. 9 о - 80 6 3 - - - MP3XBR0100N016T05 1 2 0.5° 1.6 16 3.6 5. 2 о 2.12 60 6 3 1 17 17.6 18.6 19.5 MP3XBR0100N020T05 1 2 0. 5 о 1.6 20 3.6 4. 5 о 2.18 60 6 3 1 21.1 21.8 22.9 24.1 MP3XBR0100N030T05 1 2 0. 5 о 1.6 30 3.6 3. 3 о 2.36 70 6 3 1 31.1 32.1 33.7 35.6 MP3XBR0100N035T05 1 2 0. 5 о 1.6 35 3.6 2. 9 о 2.44 80 6 3 1 36.2 37.2 39.2 MP3XBR0100N040T05 1 2 0. 5 о 1.6 40 3.6 2. 6 о 2.54 80 6 3 1 41.2 42.4 44.6 MP3XBR0100N016T10 1 2 1° 1.6 16 3.6 5. 3 о 2.34 60 6 3 1 - 17.1 18.2 19.1 MP3XBR0100N020T10 1 2 1° 1.6 20 3.6 4. 5 о 2.48 60 6 3 1 - 21.2 22.4 23.6 MP3XBR0100N025T10 1 2 1° 1.6 25 3.6 3. 8 о 2.64 70 6 3 1 - 26.2 27.7 29.2 MP3XBR0100N030T10 1 2 1° 1.6 30 3.6 3. 3 о 2.82 70 6 3 1 - 31.3 33 34.8 MP3XBR0100N035T10 1 2 1° 1.6 35 3.6 3° 3 80 6 3 1 - 36.3 38.3 40.4 MP3XBR0100N040T10 1 2 1° 1.6 40 3.6 2. 7 о 3.18 80 6 3 1 - 41.3 43.6 MP3XBR0100N050T10 1 2 1° 1.6 50 3.6 2. 2 о 3.52 110 6 3 1 - 51.4 54.2 MP3XBR0100N070T10 1 2 1° 1.6 70 3.6 1.7° 4.22 110 6 3 1 - 71.5 MP3XBR0100N016T15 1 2 1.5° 1.6 16 3.6 5. 4 о 2.54 60 6 3 1 - - 22.8 18.7 MP3XBR0100N020T15 1 2 1.5° 1.6 20 3.6 4. 6 о 2.76 60 6 3 1 - - 21.9 23.1 MP3XBR0100N025T15 1 2 1.5° 1.6 25 3.6 3. 9 о 3.02 70 6 3 1 - - 27.1 28.5 MP3XBR0100N030T15 1 2 1.5° 1.6 30 3.6 3. 4 о 3.28 70 6 3 1 - - 32.2 34 MP3XBR0100N035T15 1 2 1.5° 1.6 35 3.6 3° 3.54 80 6 3 1 - - 37.4 39.4 MP3XBR0100N040T15 1 2 1.5° 1.6 40 3.6 2. 7 о 3.8 80 6 3 1 - - 42.6 MP3XBR0100N020T30 1 2 3° 1.6 20 3.6 4. 8 о 3.62 60 6 3 1 - - - 20.5 MP3XBR0100N030T30 1 2 3° 1.6 30 3.6 3. 6 о 4.66 70 6 3 1 - - - 30.6 MP3XBR0100N042T30 1 2 3° 1.6 42 3.6 2. 8 о - 80 6 3 2 - - - MP3XBR0100N027T50 1 2 5° 1.6 27 3.6 4. 3 о - 60 6 3 2 - - - - MP3XBR0150N010T05 1.5 3 0.5° 2.4 10 5.4 5. 7 о 2.98 60 6 3 1 11 11.4 12 12.6 MP3XBR0150N020T05 1.5 3 0.5° 2.4 20 5.4 3. 5 о 3.16 60 6 3 1 21.1 21.8 22.9 24.1 MP3XBR0150N030T05 1.5 3 0.5° 2.4 30 5.4 2. 6 о 3.32 70 6 3 1 31.2 32.1 33.7 MP3XBR0150N040T05 1.5 3 0.5° 2.4 40 5.4 2° 3.5 80 6 3 1 41.3 42.4 44.6 MP3XBR0150N050T05 1.5 3 0.5° 2.4 50 5.4 1.7° 3.68 90 6 3 1 51.3 52.7 MP3XBR0150N020T10 1.5 3 1° 2.4 20 5.4 3. 6 о 3.4 60 6 3 1 - 21.3 22.4 23.6 MP3XBR0150N030T10 1.5 3 1° 2.4 30 5.4 2. 6 о 3.76 70 6 3 1 - 31.3 33 MP3XBR0150N035T10 1.5 3 1° 2.4 35 5.4 2. 3 о 3.94 80 6 3 1 - 36.4 38.3 MP3XBR0150N040T10 1.5 3 1° 2.4 40 5.4 2.1° 4.1 80 6 3 1 - 41.4 43.6 MP3XBR0150N050T10 1.5 3 1° 2.4 50 5.4 1.7° 4.46 90 6 3 1 - 51.5 MP3XBR0150N060T10 1.5 3 1° 2.4 60 5.4 1.5° 4.8 110 6 3 1 - 61.5 MP3XBR0150N070T10 1.5 3 1° 2.4 70 5.4 1.3° 5.16 110 6 3 1 - 71.6 MP3XBR0150N020T15 1.5 3 1.5° 2.4 20 5.4 3. 7 о 3.66 60 6 3 1 - - 22 23.2 MP3XBR0150N030T15 1.5 3 1.5° 2.4 30 5.4 2. 7 о 4.18 70 6 3 1 - - 32.3 MP3XBR0150N035T15 1.5 3 1.5° 2.4 35 5.4 2. 4 о 4.46 70 6 3 1 - - 37.5 MP3XBR0150N040T15 1.5 3 1.5° 2.4 40 5.4 2.1° 4.72 80 6 3 1 - - 42.6 MP3XBR0150N045T15 1.5 3 1.5° 2.4 45 5.4 1.9° 4.98 80 6 3 1 - - MP3XBR0150N052T15 1.5 3 1.5° 2.4 52 5.4 1.7° 5.34 90 6 3 1 - - MP3XBR0150N064T15 1.5 3 1.5° 2.4 64 5.4 1.4° - 110 6 3 2 - - MP3XBR0150N025T30 1.5 3 3° 2.4 25 5.4 3. 3 о 4.96 60 6 3 1 - - - 26.8 MP3XBR0150N034T30 1.5 3 3° 2.4 34 5.4 2.6° - 70 6 3 2 - - - i < °- £ i>= о S Ш2 со х I- о. Iе °т I О Нет помех / I145
