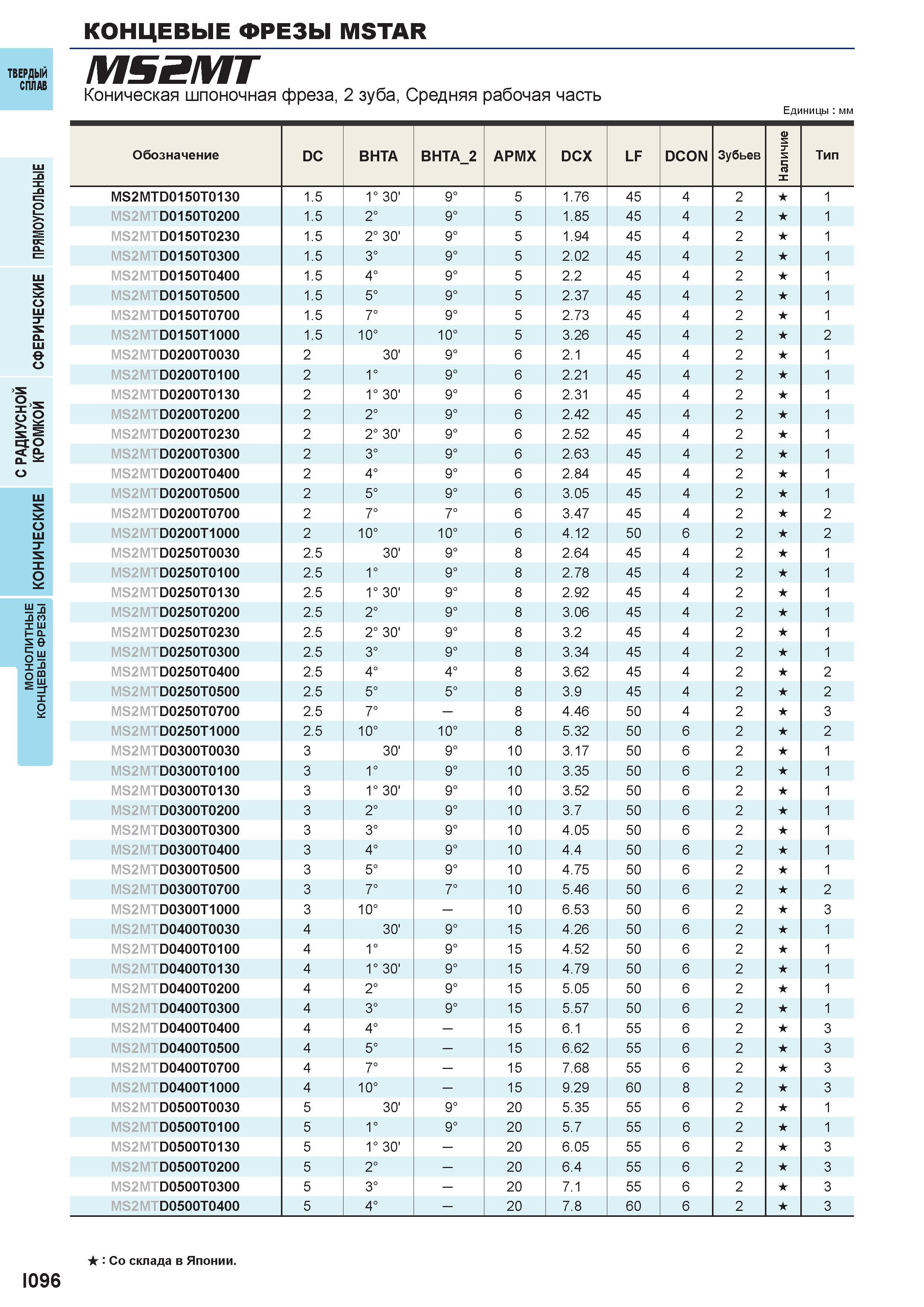

648 Каталог MITSUBISHI 2016 Вращающийся и токарный режущий инструмент Стр.I096

Каталог MITSUBISHI 2016 Станочный режущий инструмент Стр. I096 0648 Lab2u

2 2 3 2 1 1 1 1 1 1 1 2 3 1 1 1 1 1 3 3 3 3 1 1 Концевые фрезы MSTAR MS2MT Коническая шпоночная фреза, 2 зуба, Средняя рабочая часть Обозначение DC BHTA BHTA 2 APMX DCX LF DCON Зубьев MS2MTD0150T0130 1.5 1° 30' 9° 5 1.76 45 4 2 MS2MTD0150T0200 1.5 2° 9° 5 1.85 45 4 2 MS2MTD0150T0230 1.5 2 о 3 9° 5 1.94 45 4 2 MS2MTD0150T0300 1.5 3° 9° 5 2.02 45 4 2 MS2MTD0150T0400 1.5 4° 9° 5 2.2 45 4 2 MS2MTD0150T0500 1.5 5° 9° 5 2.37 45 4 2 MS2MTD0150T0700 1.5 7° 9° 5 2.73 45 4 2 MS2MTD0150T1000 1.5 10° 10° 5 3.26 45 4 2 MS2MTD0200T0030 2 30' 9° 6 2.1 45 4 2 MS2MTD0200T0100 2 1° 9° 6 2.21 45 4 2 MS2MTD0200T0130 2 1° 30' 9° 6 2.31 45 4 2 MS2MTD0200T0200 2 2° 9° 6 2.42 45 4 2 MS2MTD0200T0230 2 2 о 3 9° 6 2.52 45 4 2 MS2MTD0200T0300 2 3° 9° 6 2.63 45 4 2 MS2MTD0200T0400 2 4° 9° 6 2.84 45 4 2 MS2MTD0200T0500 2 5° 9° 6 3.05 45 4 2 MS2MTD0200T0700 2 7° 7° 6 3.47 45 4 2 MS2MTD0200T1000 2 10° 10° 6 4.12 50 6 2 MS2MTD0250T0030 2.5 30' 9° 8 2.64 45 4 2 MS2MTD0250T0100 2.5 1° 9° 8 2.78 45 4 2 MS2MTD0250T0130 2.5 0' 3 9° 8 2.92 45 4 2 MS2MTD0250T0200 2.5 2° 9° 8 3.06 45 4 2 MS2MTD0250T0230 2.5 2 о 3 9° 8 3.2 45 4 2 MS2MTD0250T0300 2.5 3° 9° 8 3.34 45 4 2 MS2MTD0250T0400 2.5 4° 4° 8 3.62 45 4 2 MS2MTD0250T0500 2.5 5° 5° 8 3.9 45 4 2 MS2MTD0250T0700 2.5 7° - 8 4.46 50 4 2 MS2MTD0250T1000 2.5 10° 10° 8 5.32 50 6 2 MS2MTD0300T0030 3 30' 9° 10 3.17 50 6 2 MS2MTD0300T0100 3 1° 9° 10 3.35 50 6 2 MS2MTD0300T0130 3 0' 3 9° 10 3.52 50 6 2 MS2MTD0300T0200 3 2° 9° 10 3.7 50 6 2 MS2MTD0300T0300 3 3° 9° 10 4.05 50 6 2 MS2MTD0300T0400 3 4° 9° 10 4.4 50 6 2 MS2MTD0300T0500 3 5° 9° 10 4.75 50 6 2 MS2MTD0300T0700 3 7° 7° 10 5.46 50 6 2 MS2MTD0300T1000 3 10° - 10 6.53 50 6 2 MS2MTD0400T0030 4 30' 9° 15 4.26 50 6 2 MS2MTD0400T0100 4 1° 9° 15 4.52 50 6 2 MS2MTD0400T0130 4 0' 3 9° 15 4.79 50 6 2 MS2MTD0400T0200 4 2° 9° 15 5.05 50 6 2 MS2MTD0400T0300 4 3° 9° 15 5.57 50 6 2 MS2MTD0400T0400 4 4° - 15 6.1 55 6 2 MS2MTD0400T0500 4 5° - 15 6.62 55 6 2 MS2MTD0400T0700 4 7° - 15 7.68 55 6 2 MS2MTD0400T1000 4 10° - 15 9.29 60 8 2 MS2MTD0500T0030 5 30' 9° 20 5.35 55 6 2 MS2MTD0500T0100 5 1° 9° 20 5.7 55 6 2 MS2MTD0500T0130 5 0' 3 - 20 6.05 55 6 2 MS2MTD0500T0200 5 2° - 20 6.4 55 6 2 MS2MTD0500T0300 5 3° - 20 7.1 55 6 2 MS2MTD0500T0400 5 4° - 20 7.8 60 6 2 Со склада в Японии.
