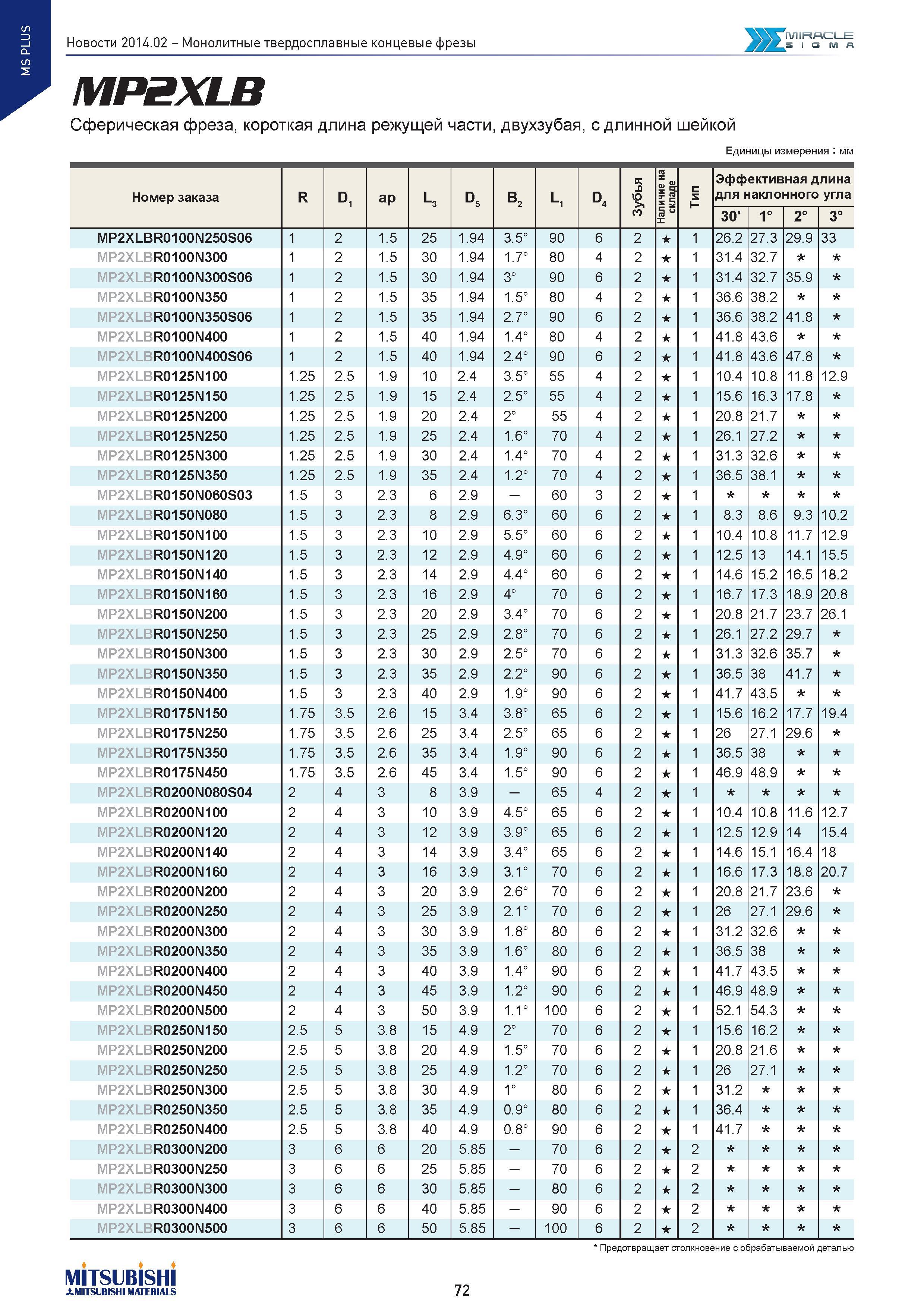

72 Каталог MITSUBISHI 2014 Новый режущий инструмент для металлообработки 14.2 Стр.72

Каталог MITSUBISHI 2014 Новый режущий инструмент 14.2 Стр. 72 0072 Lab2u

MS PLUS Монолитные твердосплавные концевые фрезы MIRACLE SIGMA MP2XLB Сферическая фреза, короткая длина режущей части, двухзубая, сдлинной шейкой Единицы измерения мм Номер заказа R D1 ap L3 d5 в2 Li d4 .0 Ю > n Наличие на складе с s н Эффективная длина для наклонного угла 30' 1° 2° 3° MP2XLBR0100N250S06 1 2 1.5 25 1.94 3.5° 90 6 2 1 26.2 27.3 29.9 33 MP2XLBR0100N300 1 2 1.5 30 1.94 1.7° 80 4 2 1 31.4 32.7 MP2XLBR0100N300S06 1 2 1.5 30 1.94 3° 90 6 2 1 31.4 32.7 35.9 MP2XLBR0100N350 1 2 1.5 35 1.94 1.5° 80 4 2 1 36.6 38.2 MP2XLBR0100N350S06 1 2 1.5 35 1.94 2.7° 90 6 2 1 36.6 38.2 41.8 MP2XLBR0100N400 1 2 1.5 40 1.94 1.4° 80 4 2 1 41.8 43.6 MP2XLBR0100N400S06 1 2 1.5 40 1.94 2.4° 90 6 2 1 41.8 43.6 47.8 MP2XLBR0125N100 1.25 2.5 1.9 10 2.4 3.5° 55 4 2 1 10.4 10.8 11.8 12.9 MP2XLBR0125N150 1.25 2.5 1.9 15 2.4 2.5° 55 4 2 1 15.6 16.3 17.8 MP2XLBR0125N200 1.25 2.5 1.9 20 2.4 2° 55 4 2 1 20.8 21.7 MP2XLBR0125N250 1.25 2.5 1.9 25 2.4 1.6° 70 4 2 1 26.1 27.2 MP2XLBR0125N300 1.25 2.5 1.9 30 2.4 1.4° 70 4 2 1 31.3 32.6 MP2XLBR0125N350 1.25 2.5 1.9 35 2.4 1.2° 70 4 2 1 36.5 38.1 MP2XLBR0150N060S03 1.5 3 2.3 6 2.9 - 60 3 2 1 MP2XLBR0150N080 1.5 3 2.3 8 2.9 6.3° 60 6 2 1 8.3 8.6 9.3 10.2 MP2XLBR0150N100 1.5 3 2.3 10 2.9 5.5° 60 6 2 1 10.4 10.8 11.7 12.9 MP2XLBR0150N120 1.5 3 2.3 12 2.9 4.9° 60 6 2 1 12.5 13 14.1 15.5 MP2XLBR0150N140 1.5 3 2.3 14 2.9 4.4° 60 6 2 1 14.6 15.2 16.5 18.2 MP2XLBR0150N160 1.5 3 2.3 16 2.9 4° 70 6 2 1 16.7 17.3 18.9 20.8 MP2XLBR0150N200 1.5 3 2.3 20 2.9 3.4° 70 6 2 1 20.8 21.7 23.7 26.1 MP2XLBR0150N250 1.5 3 2.3 25 2.9 2.8° 70 6 2 1 26.1 27.2 29.7 MP2XLBR0150N300 1.5 3 2.3 30 2.9 2.5° 70 6 2 1 31.3 32.6 35.7 MP2XLBR0150N350 1.5 3 2.3 35 2.9 2.2° 90 6 2 1 36.5 38 41.7 MP2XLBR0150N400 1.5 3 2.3 40 2.9 1.9° 90 6 2 1 41.7 43.5 MP2XLBR0175N150 1.75 3.5 2.6 15 3.4 3.8° 65 6 2 1 15.6 16.2 17.7 19.4 MP2XLBR0175N250 1.75 3.5 2.6 25 3.4 2.5° 65 6 2 1 26 27.1 29.6 MP2XLBR0175N350 1.75 3.5 2.6 35 3.4 1.9° 90 6 2 1 36.5 38 MP2XLBR0175N450 1.75 3.5 2.6 45 3.4 1.5° 90 6 2 1 46.9 48.9 MP2XLBR0200N080S04 2 4 3 8 3.9 - 65 4 2 1 MP2XLBR0200N100 2 4 3 10 3.9 4.5° 65 6 2 1 10.4 10.8 11.6 12.7 MP2XLBR0200N120 2 4 3 12 3.9 3.9° 65 6 2 1 12.5 12.9 14 15.4 MP2XLBR0200N140 2 4 3 14 3.9 3.4° 65 6 2 1 14.6 15.1 16.4 18 MP2XLBR0200N160 2 4 3 16 3.9 3.1° 70 6 2 1 16.6 17.3 18.8 20.7 MP2XLBR0200N200 2 4 3 20 3.9 2.6° 70 6 2 1 20.8 21.7 23.6 MP2XLBR0200N250 2 4 3 25 3.9 2.1° 70 6 2 1 26 27.1 29.6 MP2XLBR0200N300 2 4 3 30 3.9 1.8° 80 6 2 1 31.2 32.6 MP2XLBR0200N350 2 4 3 35 3.9 1.6° 80 6 2 1 36.5 38 MP2XLBR0200N400 2 4 3 40 3.9 1.4° 90 6 2 1 41.7 43.5 MP2XLBR0200N450 2 4 3 45 3.9 1.2° 90 6 2 1 46.9 48.9 MP2XLBR0200N500 2 4 3 50 3.9 1.1° 100 6 2 1 52.1 54.3 MP2XLBR0250N150 2.5 5 3.8 15 4.9 2° 70 6 2 1 15.6 16.2 MP2XLBR0250N200 2.5 5 3.8 20 4.9 1.5° 70 6 2 1 20.8 21.6 MP2XLBR0250N250 2.5 5 3.8 25 4.9 1.2° 70 6 2 1 26 27.1 MP2XLBR0250N300 2.5 5 3.8 30 4.9 1° 80 6 2 1 31.2 MP2XLBR0250N350 2.5 5 3.8 35 4.9 0.9° 80 6 2 1 36.4 MP2XLBR0250N400 2.5 5 3.8 40 4.9 0.8° 90 6 2 1 41.7 MP2XLBR0300N200 3 6 6 20 5.85 - 70 6 2 2 MP2XLBR0300N250 3 6 6 25 5.85 - 70 6 2 2 MP2XLBR0300N300 3 6 6 30 5.85 - 80 6 2 2 MP2XLBR0300N400 3 6 6 40 5.85 - 90 6 2 2 MP2XLBR0300N500 3 6 6 50 5.85 - 100 6 2 2 Предотвращает столкновение с обрабатываемой деталью MITSUBISHI AMITSUBISHI MATERIALS 72
