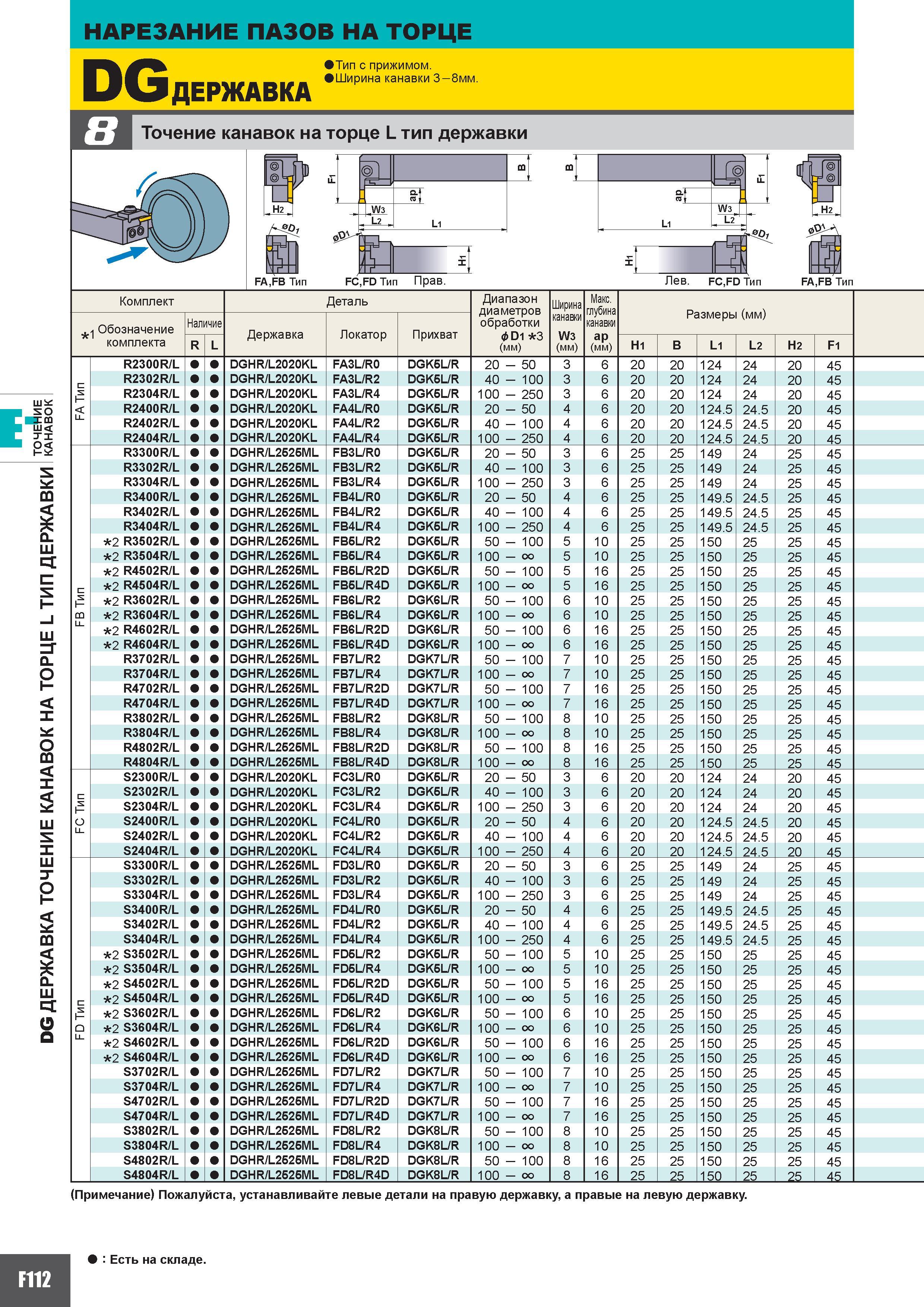

FAFB Тип FCFD Тип Прав. Лев. FCFD Тип FAFB Тип Комплект Деталь Диапазон диаметров обработки D1 3 (мм) Ширина канавки W3 (мм) Макс. глубина канавки ap (мм) Размеры (мм) 1 Обозначение комплекта Наличие Державка Локатор Прихват R L H1 B L1 L2 H2 F1 R2300R L DGHR L2020KL FA3L R0 DGK5L R 20 - 50 3 6 20 20 124 24 20 45 R2302R L DGHR L2020KL FA3L R2 DGK5L R 40 - 100 3 6 20 20 124 24 20 45 R2304R L DGHR L2020KL FA3L R4 DGK5L R 100 - 250 3 6 20 20 124 24 20 45 R2400R L DGHR L2020KL FA4L R0 DGK5L R 20 - 50 4 6 20 20 124.5 24.5 20 45 R2402R L DGHR L2020KL FA4L R2 DGK5L R 40 - 100 4 6 20 20 124.5 24.5 20 45 R2404R L DGHR L2020KL FA4L R4 DGK5L R 100 - 250 4 6 20 20 124.5 24.5 20 45 R3300R L DGHR L2525ML FB3L R0 DGK5L R 20 - 50 3 6 25 25 149 24 25 45 R3302R L DGHR L2525ML FB3L R2 DGK5L R 40 - 100 3 6 25 25 149 24 25 45 R3304R L DGHR L2525ML FB3L R4 DGK5L R 100 - 250 3 6 25 25 149 24 25 45 R3400R L DGHR L2525ML FB4L R0 DGK5L R 20 - 50 4 6 25 25 149.5 24.5 25 45 R3402R L DGHR L2525ML FB4L R2 DGK5L R 40 - 100 4 6 25 25 149.5 24.5 25 45 R3404R L DGHR L2525ML FB4L R4 DGK5L R 100 - 250 4 6 25 25 149.5 24.5 25 45 2 R3502R L DGHR L2525ML FB5L R2 DGK5L R 50 - 100 5 10 25 25 150 25 25 45 2 R3504R L DGHR L2525ML FB5L R4 DGK5L R 100 - у 5 10 25 25 150 25 25 45 2 R4502R L DGHR L2525ML FB5L R2D DGK5L R 50 - 100 5 16 25 25 150 25 25 45 2 R4504R L DGHR L2525ML FB5L R4D DGK5L R 100 - у 5 16 25 25 150 25 25 45 2 R3602R L DGHR L2525ML FB6L R2 DGK6L R 50 - 100 6 10 25 25 150 25 25 45 2 R3604R L DGHR L2525ML FB6L R4 DGK6L R 100 - у 6 10 25 25 150 25 25 45 2 R4602R L DGHR L2525ML FB6L R2D DGK6L R 50 - 100 6 16 25 25 150 25 25 45 2 R4604R L DGHR L2525ML FB6L R4D DGK6L R 100 - у 6 16 25 25 150 25 25 45 R3702R L DGHR L2525ML FB7L R2 DGK7L R 50 - 100 7 10 25 25 150 25 25 45 R3704R L DGHR L2525ML FB7L R4 DGK7L R 100 - у 7 10 25 25 150 25 25 45 R4702R L DGHR L2525ML FB7L R2D DGK7L R 50 - 100 7 16 25 25 150 25 25 45 R4704R L DGHR L2525ML FB7L R4D DGK7L R 100 - у 7 16 25 25 150 25 25 45 R3802R L DGHR L2525ML FB8L R2 DGK8L R 50 - 100 8 10 25 25 150 25 25 45 R3804R L DGHR L2525ML FB8L R4 DGK8L R 100 - у 8 10 25 25 150 25 25 45 R4802R L DGHR L2525ML FB8L R2D DGK8L R 50 - 100 8 16 25 25 150 25 25 45 R4804R L DGHR L2525ML FB8L R4D DGK8L R 100 - у 8 16 25 25 150 25 25 45 S2300R L DGHR L2020KL FC3L R0 DGK5L R 20 - 50 3 6 20 20 124 24 20 45 S2302R L DGHR L2020KL FC3L R2 DGK5L R 40 - 100 3 6 20 20 124 24 20 45 S2304R L DGHR L2020KL FC3L R4 DGK5L R 100 - 250 3 6 20 20 124 24 20 45 S2400R L DGHR L2020KL FC4L R0 DGK5L R 20 - 50 4 6 20 20 124.5 24.5 20 45 S2402R L DGHR L2020KL FC4L R2 DGK5L R 40 - 100 4 6 20 20 124.5 24.5 20 45 S2404R L DGHR L2020KL FC4L R4 DGK5L R 100 - 250 4 6 20 20 124.5 24.5 20 45 S3300R L DGHR L2525ML FD3L R0 DGK5L R 20 - 50 3 6 25 25 149 24 25 45 S3302R L DGHR L2525ML FD3L R2 DGK5L R 40 - 100 3 6 25 25 149 24 25 45 S3304R L DGHR L2525ML FD3L R4 DGK5L R 100 - 250 3 6 25 25 149 24 25 45 S3400R L DGHR L2525ML FD4L R0 DGK5L R 20 - 50 4 6 25 25 149.5 24.5 25 45 S3402R L DGHR L2525ML FD4L R2 DGK5L R 40 - 100 4 6 25 25 149.5 24.5 25 45 S3404R L DGHR L2525ML FD4L R4 DGK5L R 100 - 250 4 6 25 25 149.5 24.5 25 45 2 S3502R L DGHR L2525ML FD5L R2 DGK5L R 50 - 100 5 10 25 25 150 25 25 45 2 S3504R L DGHR L2525ML FD5L R4 DGK5L R 100 - у 5 10 25 25 150 25 25 45 2 S4502R L DGHR L2525ML FD5L R2D DGK5L R 50 - 100 5 16 25 25 150 25 25 45 2 S4504R L DGHR L2525ML FD5L R4D DGK5L R 100 - у 5 16 25 25 150 25 25 45 2 S3602R L DGHR L2525ML FD6L R2 DGK6L R 50 - 100 6 10 25 25 150 25 25 45 2 S3604R L DGHR L2525ML FD6L R4 DGK6L R 100 - у 6 10 25 25 150 25 25 45 2 S4602R L DGHR L2525ML FD6L R2D DGK6L R 50 - 100 6 16 25 25 150 25 25 45 2 S4604R L DGHR L2525ML FD6L R4D DGK6L R 100 - у 6 16 25 25 150 25 25 45 S3702R L DGHR L2525ML FD7L R2 DGK7L R 50 - 100 7 10 25 25 150 25 25 45 S3704R L DGHR L2525ML FD7L R4 DGK7L R 100 - у 7 10 25 25 150 25 25 45 S4702R L DGHR L2525ML FD7L R2D DGK7L R 50 - 100 7 16 25 25 150 25 25 45 S4704R L DGHR L2525ML FD7L R4D DGK7L R 100 - у 7 16 25 25 150 25 25 45 S3802R L DGHR L2525ML FD8L R2 DGK8L R 50 - 100 8 10 25 25 150 25 25 45 S3804R L DGHR L2525ML FD8L R4 DGK8L R 100 - у 8 10 25 25 150 25 25 45 S4802R L DGHR L2525ML FD8L R2D DGK8L R 50 - 100 8 16 25 25 150 25 25 45 S4804R L DGHR L2525ML FD8L R4D DGK8L R 100 - у 8 16 25 25 150 25 25 45 (Примечание) Пожалуйста устанавливайте левые детали на правую державку а правые на левую державку. Есть на складе.
