322 Mahr 9-16 MaraMeter Indicating Measuring Instruments for Outside Dimensions Indicating Snap Gages 840 FS MaraMeter S Features For all kinds of Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 9-16 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 9-16 0322 ENG Lab2u

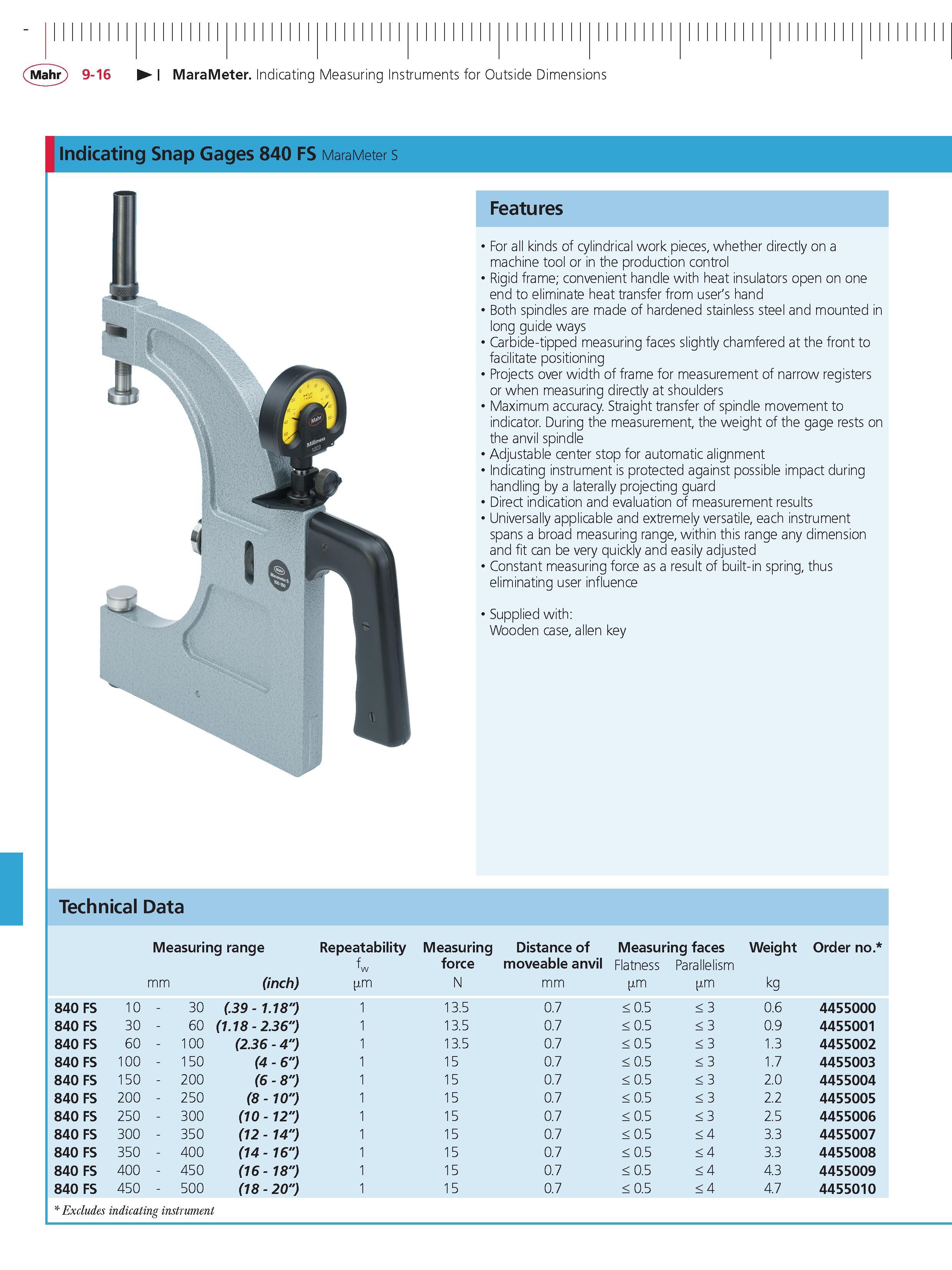

Mahr 9-16 MaraMeter Indicating Measuring Instruments for Outside Dimensions Indicating Snap Gages 840 FS MaraMeter S Features For all kinds of cylindrical work pieces whether directly on a machine tool or in the production control Rigid frame; convenient handle with heat insulators open on one end to eliminate heat transfer from user's hand Both spindles are made of hardened stainless steel and mounted in long guide ways Carbide-tipped measuring faces slightly chamfered at the front to facilitate positioning Projects over width of frame for measurement of narrow registers or when measuring directly at shoulders Maximum accuracy. Straight transfer of spindle movement to indicator. During the measurement the weight of the gage rests on the anvil spindle Adjustable center stop for automatic alignment Indicating instrument is protected against possible impact during handling by a laterally projecting guard Direct indication and evaluation of measurement results Universally applicable and extremely versatile each instrument spans a broad measuring range within this range any dimension and fit can be very quickly and easily adjusted Constant measuring force as a result of built-in spring thus eliminating user influence Supplied with Wooden case allen key Technical Data Measuring range Repeatability Measuring Distance of Measuring faces Weight Order no. fw force moveable anvil Flatness Parallelism mm (inch) m N mm m m kg 840 FS 10 - 30 (.39 -1.18") 1 13.5 0.7 0.5 3 0.6 4455000 840 FS 30 0 6 (1.18 - 2.36") 1 13.5 0.7 0.5 3 0.9 4455001 840 FS 60 - 100 (2.36 - 4") 1 13.5 0.7 0.5 3 1.3 4455002 840 FS 100 - 150 (4 - 6") 1 15 0.7 0.5 3 1.7 4455003 840 FS 150 - 200 (6 - 8") 1 15 0.7 0.5 3 2.0 4455004 840 FS 200 - 250 (8 -10") 1 15 0.7 0.5 3 2.2 4455005 840 FS 250 - 300 (10 -12") 1 15 0.7 0.5 3 2.5 4455006 840 FS 300 - 350 (12 -14") 1 15 0.7 0.5 4 3.3 4455007 840 FS 350 - 400 (14 -16") 1 15 0.7 0.5 4 3.3 4455008 840 FS 400 - 450 (16 -18") 1 15 0.7 0.5 4 4.3 4455009 840 FS 450 - 500 (18 - 20") 1 15 0.7 0.5 4 4.7 4455010 Excludes indicating instrument
