295 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.8-7

295 MarStand Indicator Stands Comparator Stands Run out Testing Instruments M 8-7 (Nlahr) Post and Support Assemblies 815 X For application in insp Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 8-7 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 8-7 0295 ENG Lab2u

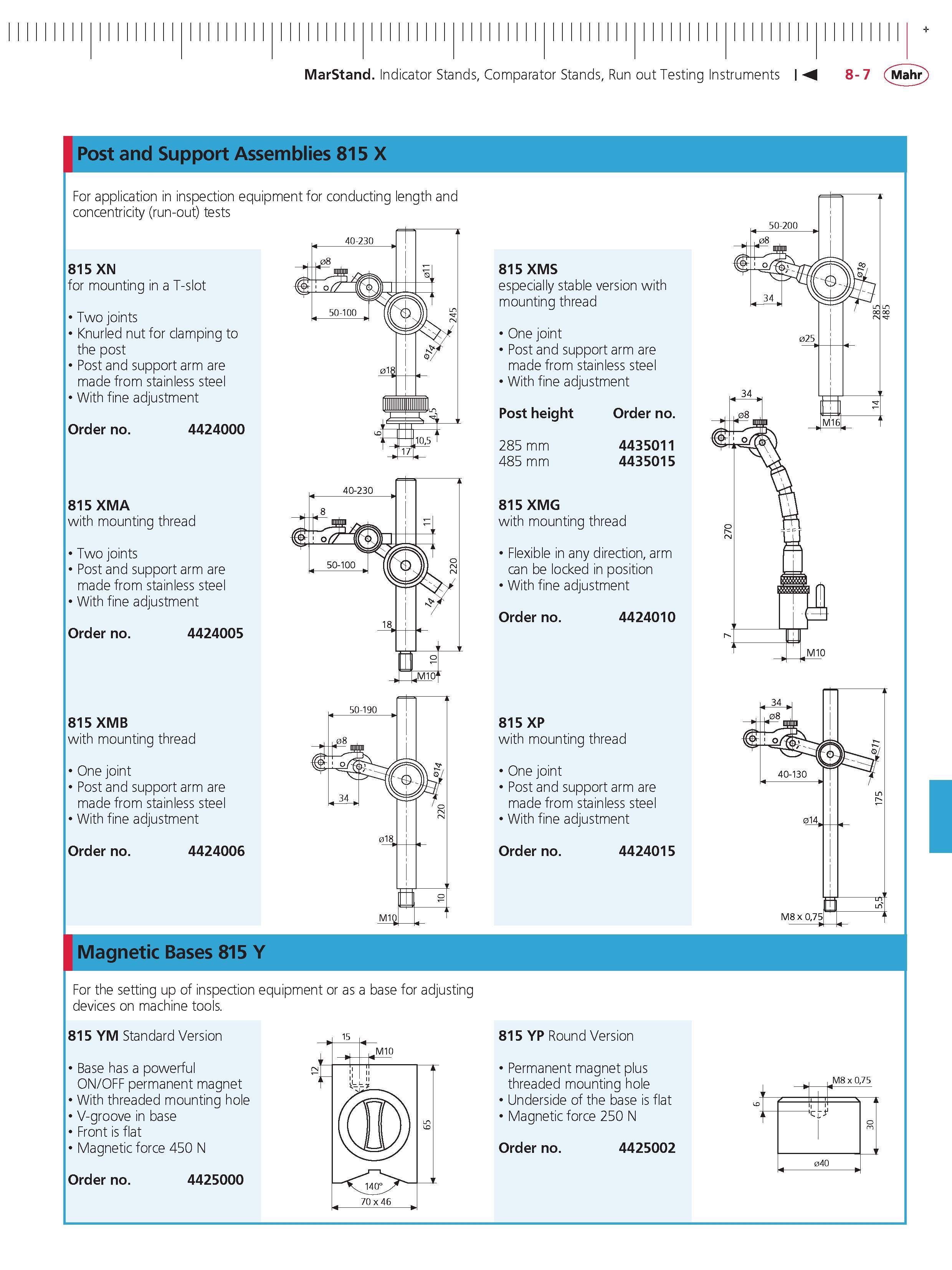

MarStand Indicator Stands Comparator Stands Run out Testing Instruments M 8-7 (Nlahr) Post and Support Assemblies 815 X For application in inspection equipment for conducting length and concentricity (run-out) tests 815 XN for mounting in a T-slot Two joints Knurled nut for clamping to the post Post and support arm are made from stainless steel With fine adjustment Order no. 4424000 815 XMA with mounting thread Two joints Post and support arm are made from stainless steel With fine adjustment Order no. 4424005 815 XMB with mounting thread One joint Post and support arm are made from stainless steel With fine adjustment Order no. 4424006 815 XMS especially stable version with mounting thread One joint Post and support arm are made from stainless steel With fine adjustment Post height Order no. 285 mm 485 mm 4435011 4435015 815 XMG with mounting thread Flexible in any direction arm can be locked in position With fine adjustment Order no. 4424010 815 XP with mounting thread One joint Post and support arm are made from stainless steel With fine adjustment Order no. 4424015 Magnetic Bases 815 Y For the setting up of inspection equipment or as a base for adjusting devices on machine tools. 815 YM Standard Version Base has a powerful ON/OFF permanent magnet With threaded mounting hole V-groove in base Front is flat Magnetic force 450 N Order no. 4425000 815 YP Round Version Permanent magnet plus threaded mounting hole Underside of the base is flat Magnetic force 250 N Order no. 4425002 M8 x 075 + 040
