290 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.8-2

290 Mahr 8-2 MarStand Indicator Stands Comparator Stands Run out Testing Instruments Indicator Stand 815 GN Features Rugged base ensures both Suppo Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 8-2 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 8-2 0290 ENG Lab2u

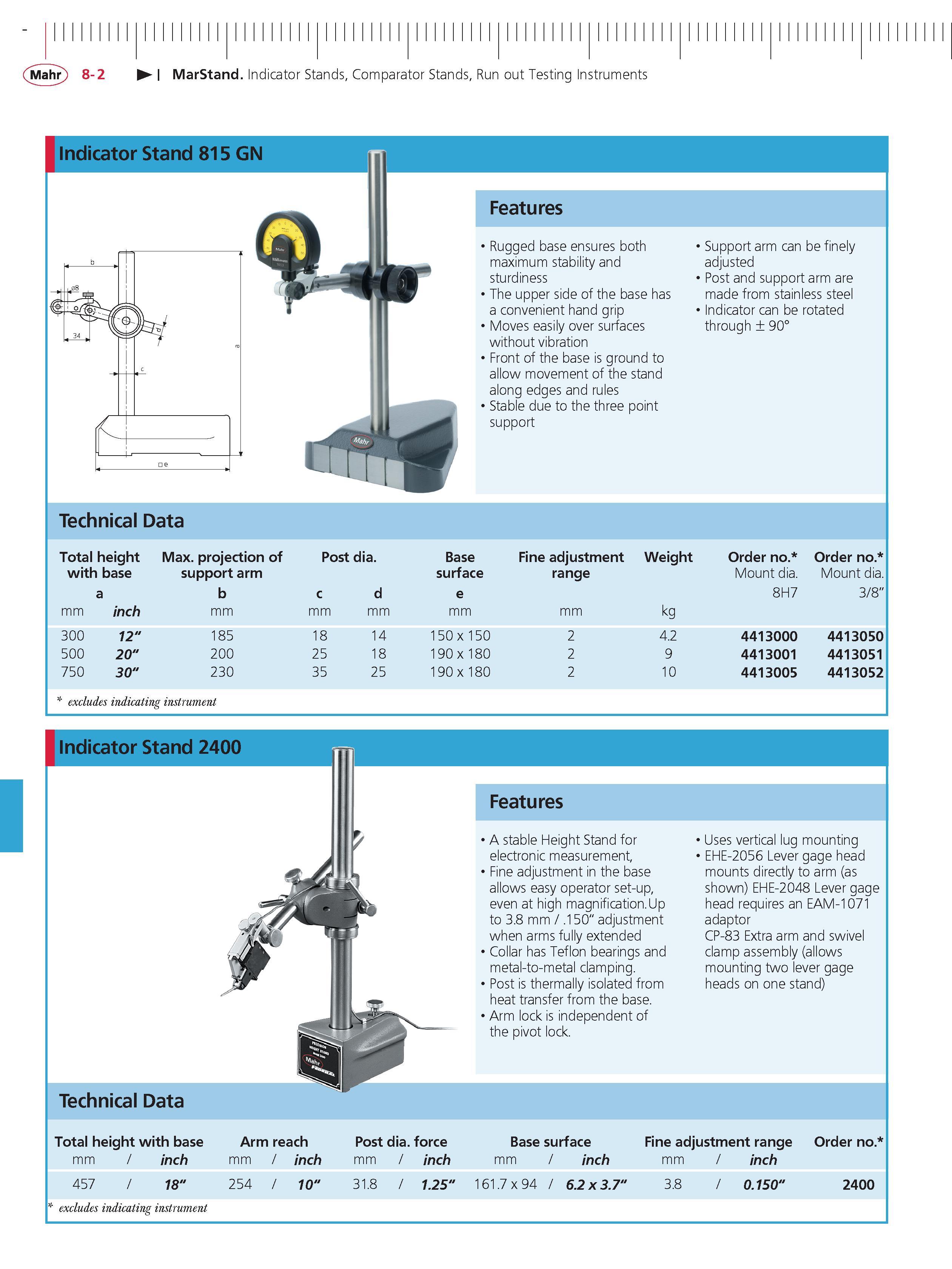

Mahr 8-2 MarStand Indicator Stands Comparator Stands Run out Testing Instruments Indicator Stand 815 GN Features Rugged base ensures both Support arm can be finely maximum stability and adjusted sturdiness Post and support arm are The upper side of the base has made from stainless steel a convenient hand grip Indicator can be rotated Moves easily over surfaces through 90 without vibration Front of the base is ground to allow movement of the stand along edges and rules Stable due to the three point support Technical Data Total height Max. projection of Post dia. Base Fine adjustment Weight Order no. Order no. with base support arm surface range Mount dia. Mount dia. a b c d e 8H7 8" 3 mm inch mm mm mm mm mm kg 300 12" 185 18 14 150x 150 2 4.2 4413000 4413050 500 20" 200 25 18 190x 180 2 9 4413001 4413051 750 30" 230 35 25 190x 180 2 10 4413005 4413052 excludes indicating instrument Indicator Stand 2400 Technical Data Total height with base mm inch 457 18" excludes indicating instrument Features A stable Height Stand for electronic measurement Fine adjustment in the base allows easy operator set-up even at high magnification. Up to 3.8 mm .150" adjustment when arms fully extended Collar has Teflon bearings and metal-to-metal clamping. Post is thermally isolated from heat transfer from the base. Arm lock is independent of the pivot lock. Uses vertical lug mounting EHE-2056 Lever gage head mounts directly to arm (as shown) EHE-2048 Lever gage head requires an EAM-1071 adaptor CP-83 Extra arm and swivel clamp assembly (allows mounting two lever gage heads on one stand) Arm reach mm inch 254 10" Post dia. force mm inch 31.8 1.25" Base surface mm inch 161.7 x 94 6.2 x 3.7" Fine adjustment range Order no. mm inch 0.150" 2400
