MAHR | Каталог MAHR 2014 Измерительные инструменты и приборы (Всего 603 стр.)

---

---





286 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.7-66

286 Mahr 7-66 Millimar Engineered Solutions Millimar Standard Elements Modular The use of Millimar standard elements allows multi-gage measuring de Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 7-66 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 7-66 0286 ENG Lab2u

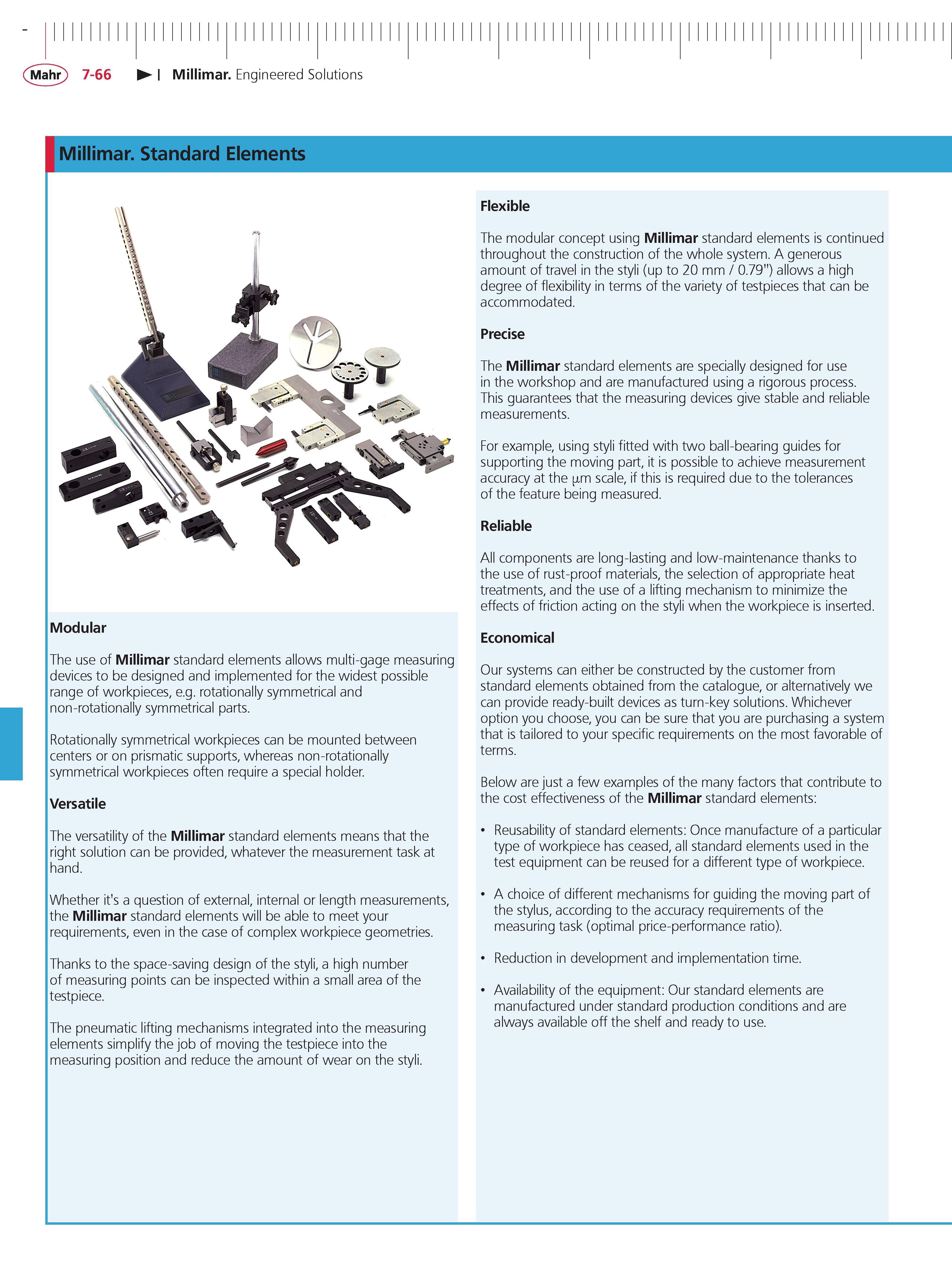

Mahr 7-66 Millimar Engineered Solutions Millimar Standard Elements Modular The use of Millimar standard elements allows multi-gage measuring devices to be designed and implemented for the widest possible range of workpieces e.g. rotationally symmetrical and non-rotationally symmetrical parts. Rotationally symmetrical workpieces can be mounted between centers or on prismatic supports whereas non-rotationally symmetrical workpieces often require a special holder. Versatile The versatility of the Millimar standard elements means that the right solution can be provided whatever the measurement task at hand. Whether it's a question of external internal or length measurements the Millimar standard elements will be able to meet your requirements even in the case of complex workpiece geometries. Thanks to the space-saving design of the styli a high number of measuring points can be inspected within a small area of the testpiece. The pneumatic lifting mechanisms integrated into the measuring elements simplify the job of moving the testpiece into the measuring position and reduce the amount of wear on the styli. Flexible The modular concept using Millimar standard elements is continued throughout the construction of the whole system. A generous amount of travel in the styli (up to 20 mm 0.79") allows a high degree of flexibility in terms of the variety of testpieces that can be accommodated. Precise The Millimar standard elements are specially designed for use in the workshop and are manufactured using a rigorous process. This guarantees that the measuring devices give stable and reliable measurements. For example using styli fitted with two ball-bearing guides for supporting the moving part it is possible to achieve measurement accuracy at the m scale if this is required due to the tolerances of the feature being measured. Reliable All components are long-lasting and low-maintenance thanks to the use of rust-proof materials the selection of appropriate heat treatments and the use of a lifting mechanism to minimize the effects of friction acting on the styli when the workpiece is inserted. economical Our systems can either be constructed by the customer from standard elements obtained from the catalogue or alternatively we can provide ready-built devices as turn-key solutions. Whichever option you choose you can be sure that you are purchasing a system that is tailored to your specific requirements on the most favorable of terms. Below are just a few examples of the many factors that contribute to the cost effectiveness of the Millimar standard elements Reusability of standard elements Once manufacture of a particular type of workpiece has ceased all standard elements used in the test equipment can be reused for a different type of workpiece. A choice of different mechanisms for guiding the moving part of the stylus according to the accuracy requirements of the measuring task (optimal price-performance ratio). Reduction in development and implementation time. Availability of the equipment Our standard elements are manufactured under standard production conditions and are always available off the shelf and ready to use.
