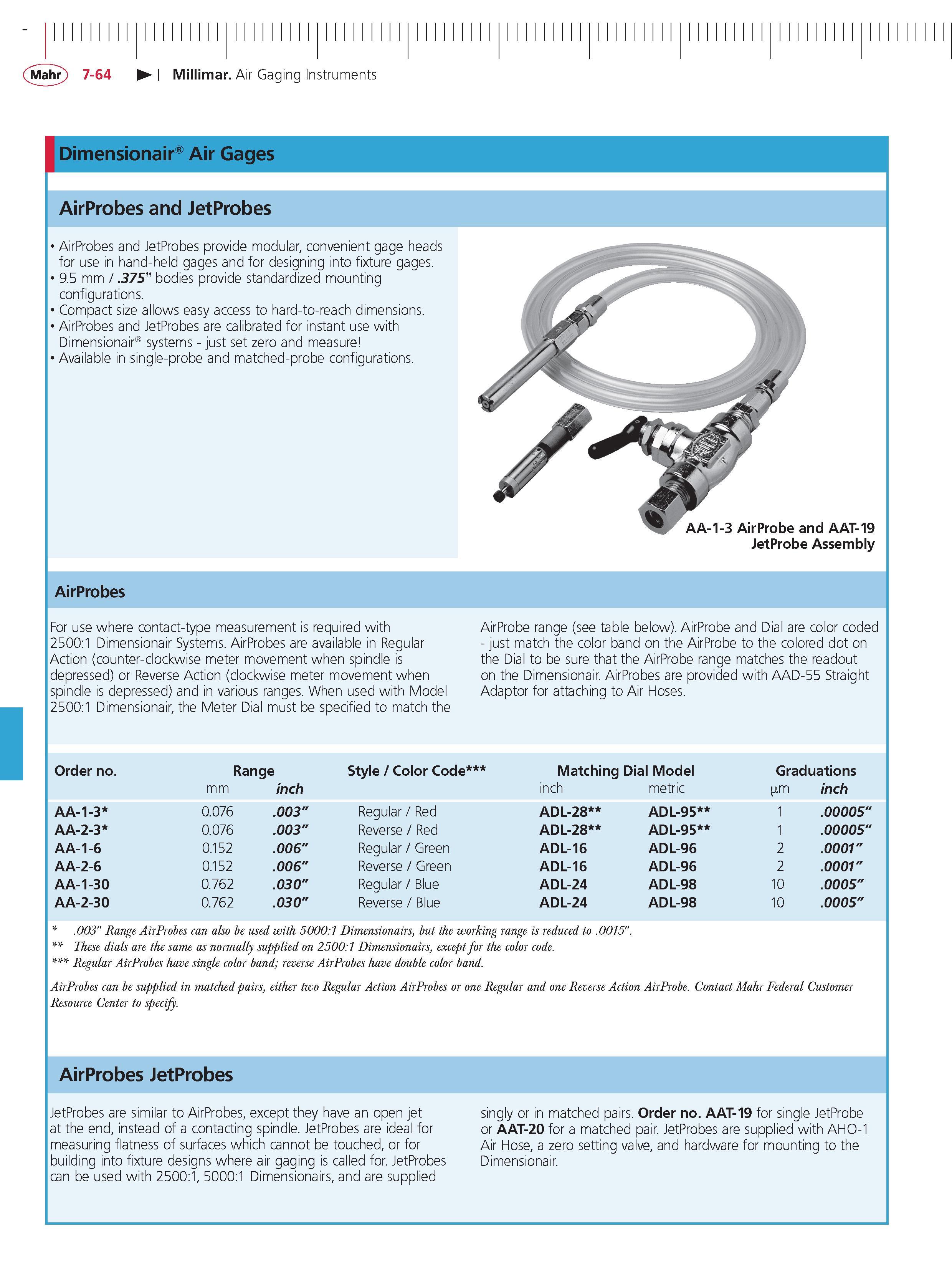

Mahr 7-64 Millimar Air Gaging Instruments Dimensionair Air Gages AirProbes and JetProbes AirProbes and JetProbes provide modular convenient gage heads for use in hand-held gages and for designing into fixture gages. 9.5 mm .375" bodies provide standardized mounting configurations. Compact size allows easy access to hard-to-reach dimensions. AirProbes and JetProbes are calibrated for instant use with Dimensionair systems - just set zero and measure Available in single-probe and matched-probe configurations. AirProbes For use where contact-type measurement is required with 2500:1 Dimensionair Systems. AirProbes are available in Regular Action (counter-clockwise meter movement when spindle is depressed) or Reverse Action (clockwise meter movement when spindle is depressed) and in various ranges. When used with Model 2500:1 Dimensionair the Meter Dial must be specified to match the AirProbe range (see table below). AirProbe and Dial are color coded - just match the color band on the AirProbe to the colored dot on the Dial to be sure that the AirProbe range matches the readout on the Dimensionair. AirProbes are provided with AAD-55 Straight Adaptor for attaching to Air Hoses. order no. Range Style Color Code Matching dial Model Graduations mm inch inch metric m inch AA-1-3 0.076 003" Regular Red Adi-28 ADL-95 1 .00005 AA-2-3 0.076 003" Reverse Red Adi-28 ADL-95 1 .00005 AA-1-6 0.152 006" Regular Green ADL-16 ADL-96 2 .0001" AA-2-6 0.152 006" Reverse Green ADL-16 ADL-96 2 .0001" AA-1-30 0.762 030" Regular Blue ADL-24 ADL-98 10 .0005" AA-2-30 0.762 .030" Reverse Blue ADL-24 ADL-98 10 .0005" .003" Range AirProbes can also be used with 5000:1 Dimensionairs but the working range is reduced to .0015". These dials are the same as normally supplied on 2500:1 Dimensionairs except for the color code. Regular AirProbes have single color band; reverse AirProbes have double color band. AirProbes can be supplied in matched pairs either two Regular Action AirProbes or one Regular and one Reverse Action AirProbe. Contact Mahr Federal Customer Resource Center to specify. AirProbes JetProbes JetProbes are similar to AirProbes except they have an open jet at the end instead of a contacting spindle. JetProbes are ideal for measuring flatness of surfaces which cannot be touched or for building into fixture designs where air gaging is called for. JetProbes can be used with 2500:1 5000:1 Dimensionairs and are supplied singly or in matched pairs. order no. AAT-19 for single JetProbe or AAT-20 for a matched pair. JetProbes are supplied with AHO-1 Air Hose a zero setting valve and hardware for mounting to the Dimensionair.
