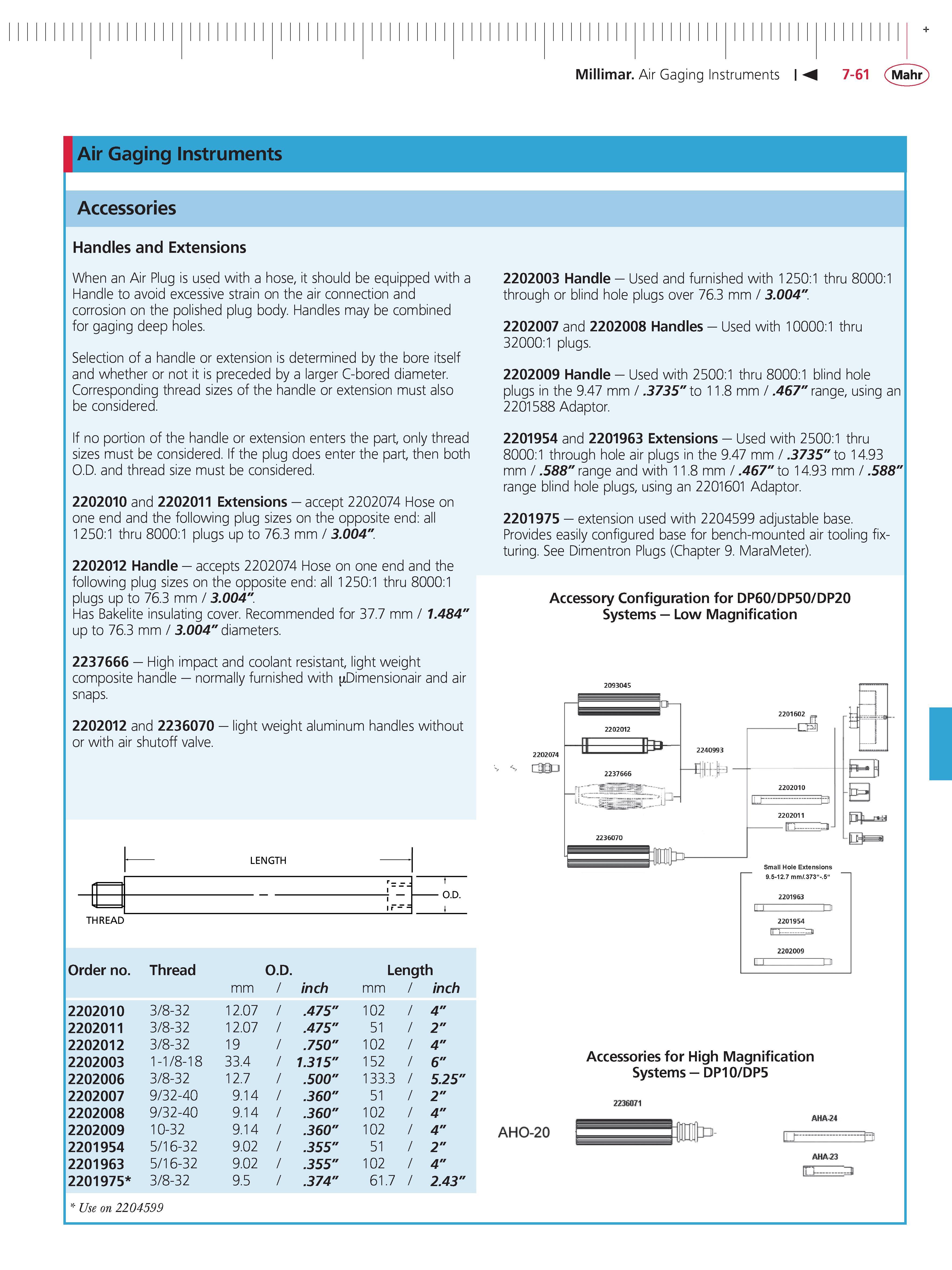

281 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.7-61

281 Millimar Air Gaging Instruments 7-61 Mahr Air Gaging Instruments Accessories Handles and Extensions When an Air Plug is used with a hose it sho Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 7-61 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 7-61 0281 ENG Lab2u

Millimar Air Gaging Instruments 7-61 Mahr Air Gaging Instruments Accessories Handles and Extensions When an Air Plug is used with a hose it should be equipped with a Handle to avoid excessive strain on the air connection and corrosion on the polished plug body. Handles may be combined for gaging deep holes. Selection of a handle or extension is determined by the bore itself and whether or not it is preceded by a larger C-bored diameter. Corresponding thread sizes of the handle or extension must also be considered. If no portion of the handle or extension enters the part only thread sizes must be considered. If the plug does enter the part then both O.D. and thread size must be considered. 2202010 and 2202011 extensions - accept 2202074 Hose on one end and the following plug sizes on the opposite end all 1250:1 thru 8000:1 plugs up to 76.3 mm 3.004". 2202012 handle - accepts 2202074 Hose on one end and the following plug sizes on the opposite end all 1250:1 thru 8000:1 plugs up to 76.3 mm 3.004". Has Bakelite insulating cover. Recommended for 37.7 mm 1.484" up to 76.3 mm 3.004" diameters. 2237666 High impact and coolant resistant light weight composite handle normally furnished with Dimensionair and air snaps. 2202012 and 2236070 light weight aluminum handles without or with air shutoff valve. order no. Thread o.D. Length mm inch mm inch 2202010 3 8-32 12.07 .475" 102 4" 2202011 3 8-32 12.07 .475" 51 2" 2202012 3 8-32 19 .750" 102 4" 2202003 1-1 8-18 33.4 1.315" 152 6" 2202006 3 8-32 12.7 .500" 133.3 5.25" 2202007 9 32-40 9.14 .360" 51 2" 2202008 9 32-40 9.14 .360" 102 4" 2202009 10-32 9.14 .360" 102 4" 2201954 5 16-32 9.02 .355" 51 2" 2201963 5 16-32 9.02 .355" 102 4" 2201975 3 8-32 9.5 .374" 61.7 2.43 2202003 handle Used and furnished with 1250:1 thru 8000:1 through or blind hole plugs over 76.3 mm 3.004". 2202007 and 2202008 handles Used with 10000:1 thru 32000:1 plugs. 2202009 handle Used with 2500:1 thru 8000:1 blind hole plugs in the 9.47 mm .3735" to 11.8 mm .467" range using an 2201588 Adaptor. 2201954 and 2201963 extensions Used with 2500:1 thru 8000:1 through hole air plugs in the 9.47 mm .3735" to 14.93 mm .588" range and with 11.8 mm .467" to 14.93 mm .588" range blind hole plugs using an 2201601 Adaptor. 2201975 extension used with 2204599 adjustable base. Provides easily configured base for bench-mounted air tooling fix-turing. See Dimentron Plugs (Chapter 9. MaraMeter). Accessory Configuration for DP60 DP50 DP20 Systems Low Magnification Accessories for high Magnification Systems DP10 DP5 Use on 2204599 +
