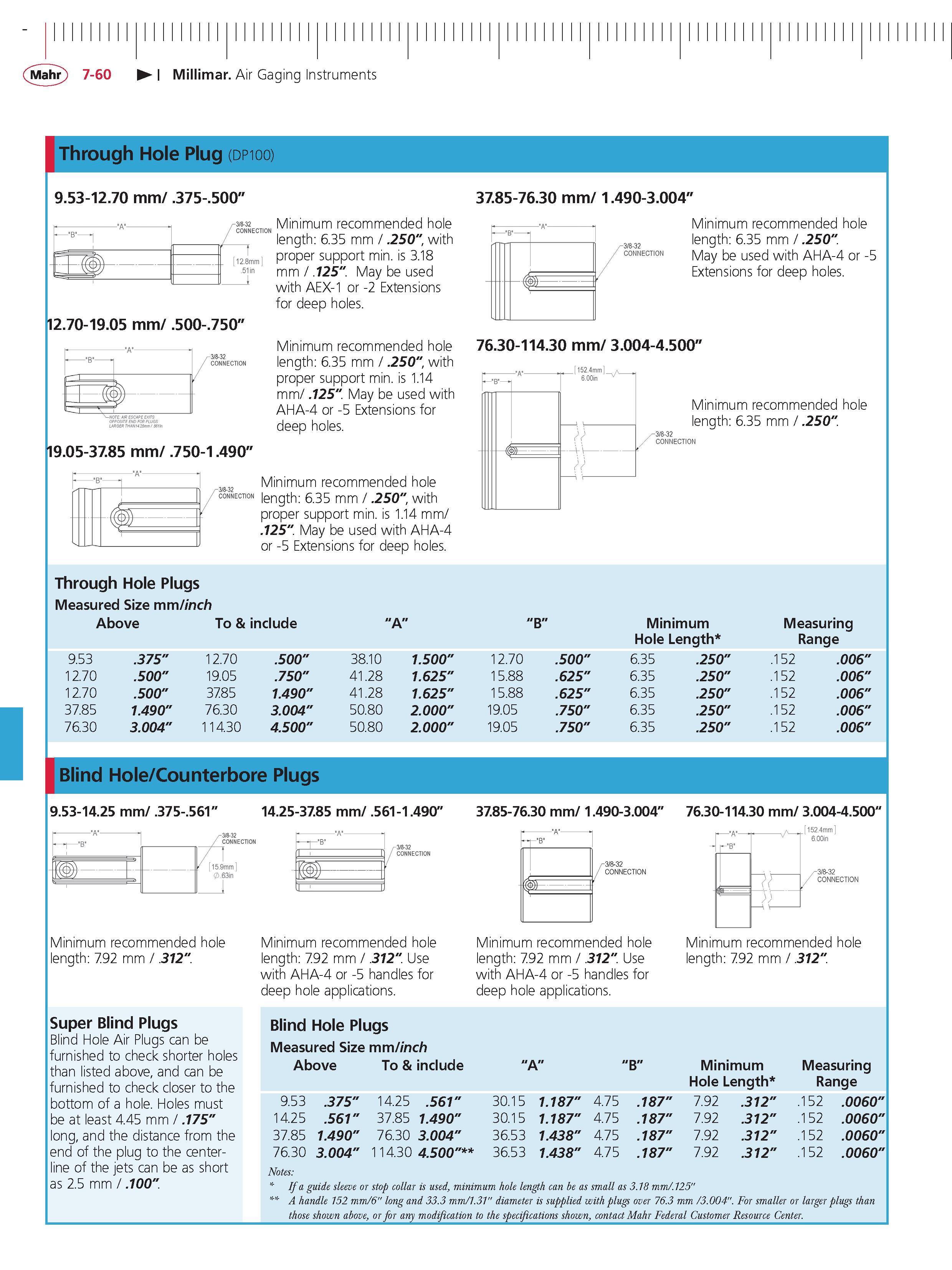

280 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.7-60

280 Mahr 7-60 Millimar Air Gaging Instruments Through Hole Plug (dpioo) 12 70-19 05 mm 500- 750 19 05-37 85 mm 750-1 490 9 53-12 70 mm 375- 500 37 Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 7-60 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 7-60 0280 ENG Lab2u

Mahr 7-60 Millimar Air Gaging Instruments Through Hole Plug (dpioo) 12.70-19.05 mm .500-.750" 19.05-37.85 mm .750-1.490" 9.53-12.70 mm .375-.500" 37.85-76.30 mm 1.490-3.004" Minimum recommended hole length 6.35 mm .250" with proper support min. is 3.18 mm .125". May be used with AEX-1 or -2 Extensions for deep holes. Minimum recommended hole length 6.35 mm .250" with proper support min. is 1.14 mm .125". May be used with AHA-4 or -5 Extensions for deep holes. Minimum recommended hole length 6.35 mm .250" with proper support min. is 1.14 mm .125" May be used with AHA-4 or -5 Extensions for deep holes. Minimum recommended hole length 6.35 mm .250". May be used with AHA-4 or -5 Extensions for deep holes. 76.30-114.30 mm 3.004-4.500" 152.4mm 6.00in Minimum recommended hole length 6.35 mm .250" Through Hole Plugs Measured Size mm inch Above To & include Minimum Hole Length Measuring Range 9.53 .375" 12.70 .500" 38.10 1.500" 12.70 .500" 6.35 .250" .152 .006 12.70 .500" 19.05 .750" 41.28 1.625" 15.88 .625" 6.35 .250" .152 .006 12.70 .500" 37.85 1.490" 41.28 1.625" 15.88 .625" 6.35 .250" .152 .006 37.85 1.490" 76.30 3.004" 50.80 2.000" 19.05 .750" 6.35 .250" .152 .006 76.30 3.004" 114.30 4.500" 50.80 2.000" 19.05 .750" 6.35 .250" .152 .006 Blind Hole Counterbore Plugs 9.53-14.25 mm .375-.561" 14.25-37.85 mm .561-1.490" 37.85-76.30 mm 1.490-3.004" 76.30-114.30 mm 3.004-4.500" Minimum recommended hole length 7.92 mm .312". Super Blind Plugs Blind Hole Air Plugs can be furnished to check shorter holes than listed above and can be furnished to check closer to the bottom of a hole. Holes must be at least 4.45 mm .175" long and the distance from the end of the plug to the centerline of the jets can be as short as 2.5 mm .100". Minimum recommended hole length 7.92 mm .312". Use with AHA-4 or -5 handles for deep hole applications. Blind Hole Plugs Measured Size mm inch Minimum recommended hole length 7.92 mm .312". Use with AHA-4 or -5 handles for deep hole applications. Minimum recommended hole length 792 mm .312". Above To & include A" "B" Minimum Hole Length Measuring Range 9.53 .375" 14.25 .561" 30.15 1.187" 4.75 .187" 7.92 .312" .152 .0060 14.25 .561" 37.85 1.490" 30.15 1.187" 4.75 .187" 7.92 .312" .152 .0060 37.85 1.490" 76.30 3.004" 36.53 1.438" 4.75 .187" 7.92 .312" .152 .0060 76.30 3.004" 114.30 4.500" 36.53 1.438" 4.75 .187" 7.92 .312" .152 .0060 Notes If a guide sleeve or stop collar is used minimum hole length can be as small as 3.18 mm . 125 A handle 152 mm 6 long and 33.3 mm 1.31 diameter is supplied with plugs over 76.3 mm 3.004". For smaller or larger plugs than those shown above or for any modification to the specifications shown contact Mahr Federal Customer Resource Center. B
