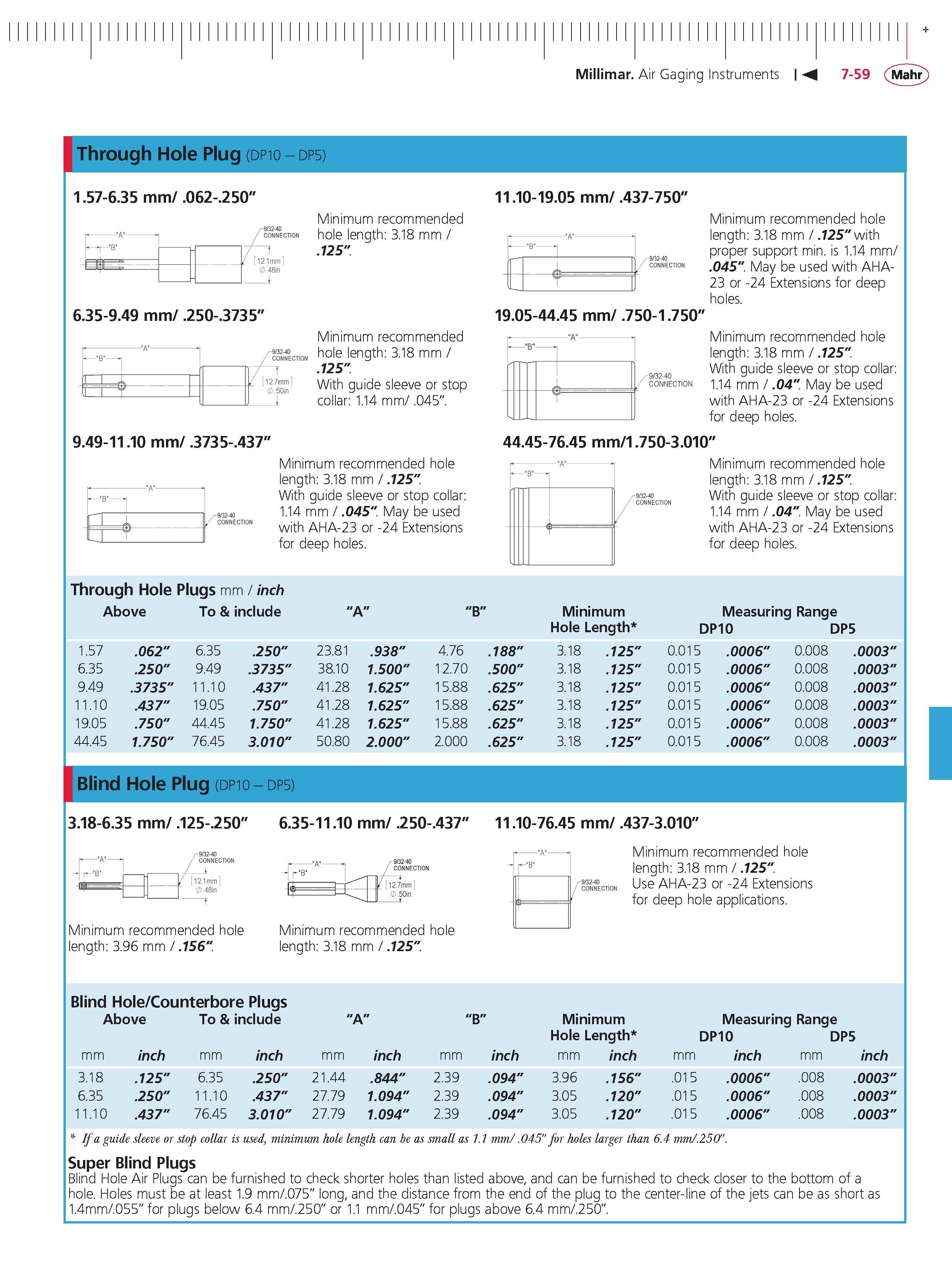

279 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.7-59

279 Millimar Air Gaging Instruments 7-59 Mahr Through Hole Plug (dpio-dp5) 1 57-6 35 mm 062- 250 11 10-19 05 mm 437-750 6 35-9 49 mm 250- 3735 9 49 Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 7-59 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 7-59 0279 ENG Lab2u

Millimar Air Gaging Instruments 7-59 Mahr Through Hole Plug (dpio-dp5) 1.57-6.35 mm .062-.250" 11.10-19.05 mm .437-750" 6.35-9.49 mm .250-.3735" 9.49-11.10 mm .3735-.437" Minimum recommended hole length 3.18 mm .125". Minimum recommended hole length 3.18 mm .125". With guide sleeve or stop collar 1.14 mm .045". Minimum recommended hole length 3.18 mm .125". With guide sleeve or stop collar 1.14 mm .045". May be used with AHA-23 or -24 Extensions for deep holes. 19.05-44.45 mm .750-1.750 -9 32-40 CONNECTION Minimum recommended hole length 3.18 mm .125" with proper support min. is 1.14 mm .045". May be used with AHA-23 or -24 Extensions for deep holes. Minimum recommended hole length 3.18 mm .125". With guide sleeve or stop collar 1.14 mm .04". May be used with AHA-23 or -24 Extensions for deep holes. 44.45-76.45 mm 1.750-3.010" Minimum recommended hole length 3.18 mm .125". With guide sleeve or stop collar 1.14 mm .04". May be used with AHA-23 or -24 Extensions for deep holes. Through Hole Plugs mm inch Above To & include "A "B" Minimum Measuring Range Hole Length DP10 DP5 1.57 .062" 6.35 .250" 23.81 .938" 4.76 .188" 3.18 .125" 0.015 .0006" 0.008 0003 6.35 .250" 9.49 .3735" 38.10 1.500" 12.70 .500" 3.18 .125" 0.015 .0006" 0.008 0003 9.49 .3735" 11.10 .437" 41.28 1.625" 15.88 .625" 3.18 .125" 0.015 .0006" 0.008 0003 11.10 .437" 19.05 .750" 41.28 1.625" 15.88 .625" 3.18 .125" 0.015 .0006" 0.008 0003 19.05 .750" 44.45 1.750" 41.28 1.625" 15.88 .625" 3.18 .125" 0.015 .0006" 0.008 0003 44.45 1.750" 76.45 3.010" 50.80 2.000" 2.000 .625" 3.18 .125" 0.015 .0006" 0.008 0003 Blind Hole Plug (DP10 - DP5) 3.18-6.35 mm .125-.250" 6.35-11.10 mm .250-.437" 11.10-76.45 mm .437-3.010" Minimum recommended hole length 3.96 mm .156" Minimum recommended hole length 3.18 mm .125". Minimum recommended hole length 3.18 mm .125". Use AHA-23 or -24 Extensions for deep hole applications. Blind Hole Counterbore Plugs Above To & include Minimum Measuring Range Hole Length DP10 DP5 mm inch mm inch mm inch mm inch mm inch mm inch mm inch 3.18 .125" 6.35 .250" 21.44 .844" 2.39 .094" 3.96 .156" .015 .0006" .008 .0003 6.35 .250" 11.10 .437" 27.79 1.094" 2.39 .094" 3.05 .120" .015 .0006" .008 .0003 11.10 .437" 76.45 3.010" 27.79 1.094" 2.39 .094" 3.05 .120" .015 .0006" .008 .0003 If a guide sleeve or stop collar is used minimum hole length can be as small as 1.1 mm .045" for holes larger than 6.4 mm .250". Super Blind Plugs Blind Hole Air Plugs can be furnished to check shorter holes than listed above and can be furnished to check closer to the bottom of a hole. Holes must be at least 1.9 mm .075" long and the distance from the end of the plug to the center-line of the jets can be as short as 1.4mm .055" for plugs below 6.4 mm .250" or 1.1 mm .045" for plugs above 6.4 mm .250". B
