277 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.7-57

277 Millimar Air Gaging Instruments 7-57 Mahr Through Hole Plugs (DP50 - DP20 & 60) 3 12-4 70 mm 123- 185 14 94-19 05 mm 588- 750 Minimum recommend Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 7-57 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 7-57 0277 ENG Lab2u

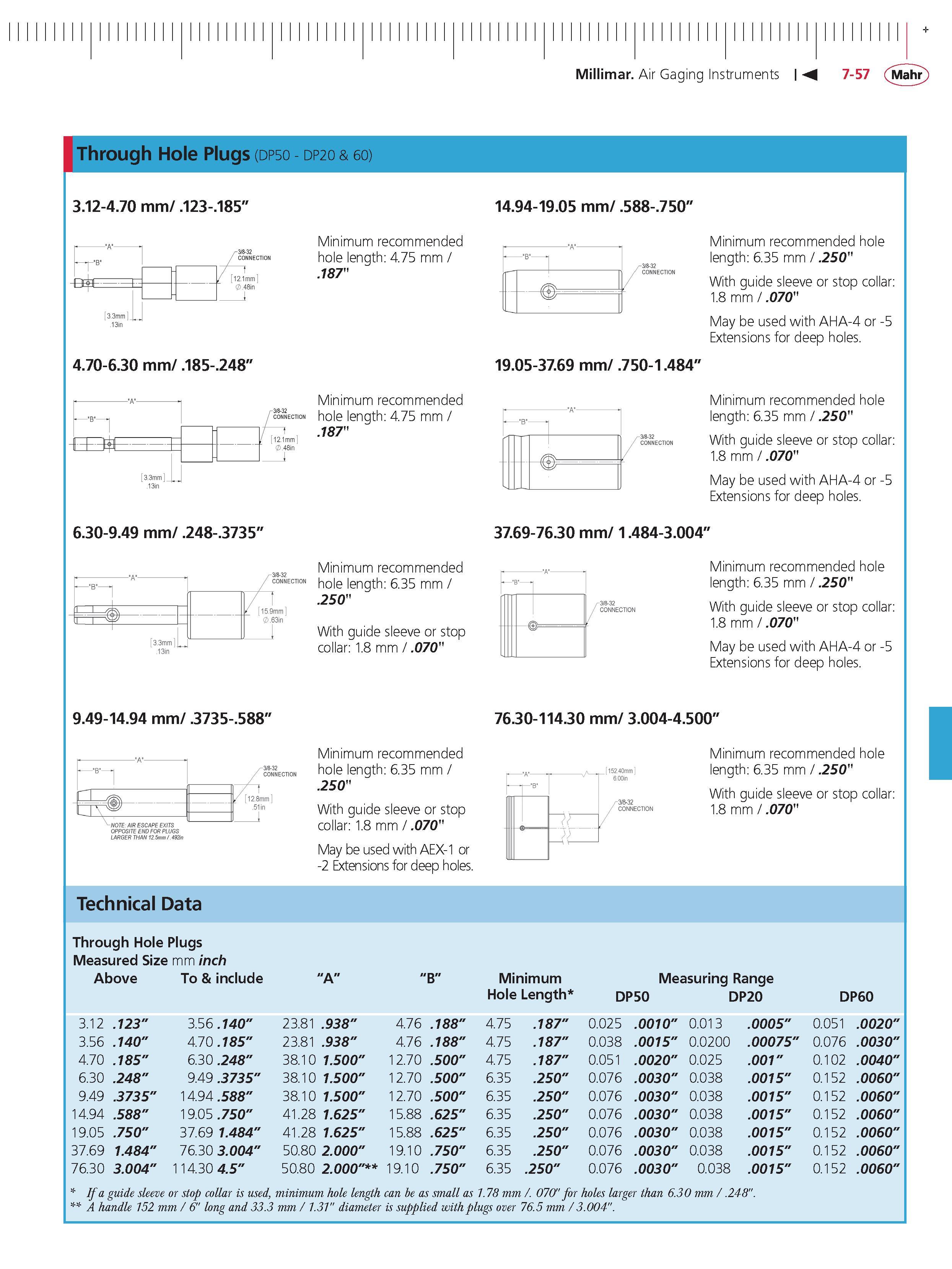

Millimar Air Gaging Instruments 7-57 Mahr Through Hole Plugs (DP50 - DP20 & 60) 3.12-4.70 mm .123-.185" 14.94-19.05 mm .588-.750" Minimum recommended hole length 4.75 mm .187" 4.70-6.30 mm .185-.248" 19.05-37.69 mm .750-1.484" Minimum recommended CONNECTION hole length 4.75 mm .187" Minimum recommended hole length 6.35 mm .250" With guide sleeve or stop collar 1.8 mm .070" May be used with AHA-4 or -5 Extensions for deep holes. Minimum recommended hole length 6.35 mm .250" With guide sleeve or stop collar 1.8 mm .070" May be used with AHA-4 or -5 Extensions for deep holes. 6.30-9.49 mm .248-.3735" 37.69-76.30 mm 1.484-3.004" Minimum recommended hole length 6.35 mm .250" With guide sleeve or stop collar 1.8 mm .070" Minimum recommended hole length 6.35 mm .250" With guide sleeve or stop collar 1.8 mm .070" May be used with AHA-4 or -5 Extensions for deep holes. 9.49-14.94 mm .3735-.588" 76.30-114.30 mm 3.004-4.500" Minimum recommended hole length 6.35 mm .250" With guide sleeve or stop collar 1.8 mm .070" May be used with AEX-1 or -2 Extensions for deep holes. Minimum recommended hole length 6.35 mm .250" With guide sleeve or stop collar 1.8 mm .070" Technical Data Through Hole Plugs Measured Size mm inch Above To & include "A" B" Minimum Measuring Range Hole Length DP50 DP20 DP60 3.12 .123" 3.56 .140" 23.81 .938" 4.76 .188" 4.75 .187" 0.025 .0010" 0.013 .0005" 0.051 .0020 3.56 .140" 4.70 .185" 23.81 .938" 4.76 .188" 4.75 .187" 0.038 .0015" 0.0200 .00075" 0.076 .0030 4.70 .185" 6.30 .248" 38.10 1.500" 12.70 .500" 4.75 .187" 0.051 .0020" 0.025 .001" 0.102 .0040 6.30 .248" 9.49 .3735" 38.10 1.500" 12.70 .500" 6.35 .250" 0.076 .0030" 0.038 .0015" 0.152 .0060 9.49 .3735" 14.94 .588" 38.10 1.500" 12.70 .500" 6.35 .250" 0.076 .0030" 0.038 .0015" 0.152 .0060 14.94 .588" 19.05 .750" 41.28 1.625" 15.88 .625" 6.35 .250" 0.076 .0030" 0.038 .0015" 0.152 .0060 19.05 .750" 37.69 1.484" 41.28 1.625" 15.88 .625" 6.35 .250" 0.076 .0030" 0.038 .0015" 0.152 .0060 37.69 1.484" 76.30 3.004" 50.80 2.000" 19.10 .750" 6.35 .250" 0.076 .0030" 0.038 .0015" 0.152 .0060 0 .3 6. 7 3.004" 114.30 4.5" 50.80 2.000" 0 9. .750" 6.35 .250" 0.076 .0030" 0.038 .0015" 0.152 .0060 If a guide sleeve or stop collar is used minimum hole length can be as small as 1.78 mm . 070" for holes larger than 6.30 mm .248". A handle 152 mm 6' long and 33.3 mm 1.31" diameter is supplied with plugs over 76.5 mm 3.004".
