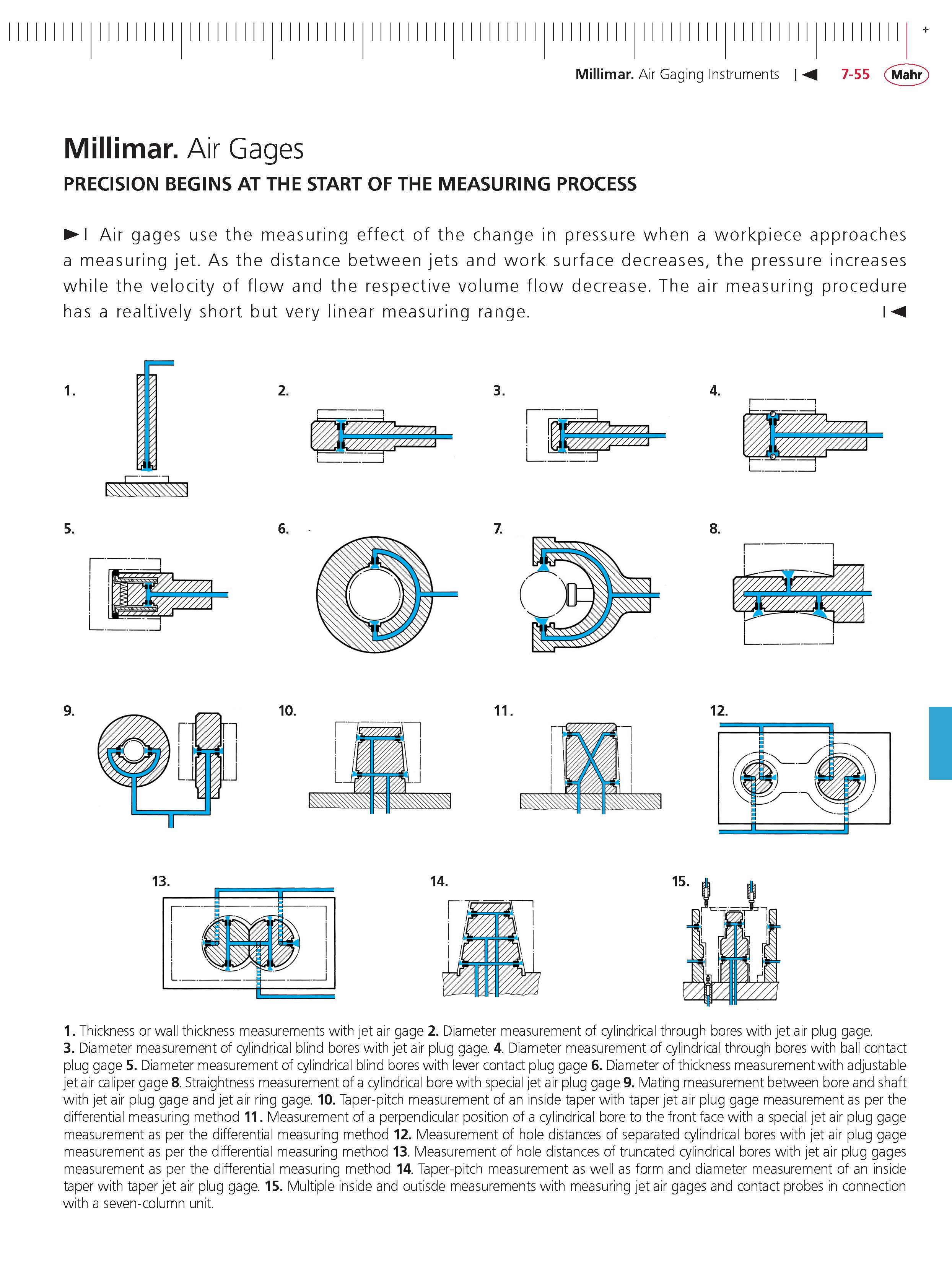

Millimar Air Gaging Instruments 7-55 (Mahr Millimar Air Gages PRECISION BEGINS AT THE START OF THE MEASURING PROCESS Air gages use the measuring effect of the change in pressure when a workpiece approaches a measuring jet. As the distance between jets and work surface decreases the pressure increases while the velocity of flow and the respective volume flow decrease. The air measuring procedure has a realtively short but very linear measuring range. 1 9. 10. 11. 12. 13. 14. 1. Thickness or wall thickness measurements with jet air gage 2. Diameter measurement of cylindrical through bores with jet air plug gage. 3. Diameter measurement of cylindrical blind bores with jet air plug gage. 4. Diameter measurement of cylindrical through bores with ball contact plug gage 5. Diameter measurement of cylindrical blind bores with lever contact plug gage 6. Diameter of thickness measurement with adjustable jet air caliper gage 8. Straightness measurement of a cylindrical bore with special jet air plug gage 9. Mating measurement between bore and shaft with jet air plug gage and jet air ring gage. 10. Taper-pitch measurement of an inside taper with taper jet air plug gage measurement as per the differential measuring method 11. Measurement of a perpendicular position of a cylindrical bore to the front face with a special jet air plug gage measurement as per the differential measuring method 12. Measurement of hole distances of separated cylindrical bores with jet air plug gage measurement as per the differential measuring method 13. Measurement of hole distances of truncated cylindrical bores with jet air plug gages measurement as per the differential measuring method 14. Taper-pitch measurement as well as form and diameter measurement of an inside taper with taper jet air plug gage. 15. Multiple inside and outisde measurements with measuring jet air gages and contact probes in connection with a seven-column unit.
