MAHR | Каталог MAHR 2014 Измерительные инструменты и приборы (Всего 603 стр.)

---

---





274 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.7-54

274 Mahr 7-54 Millimar Air Gaging Instruments Millimar S 1840 PE Length measuring instrument with three-color illuminated bar graph (single or dual Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 7-54 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 7-54 0274 ENG Lab2u

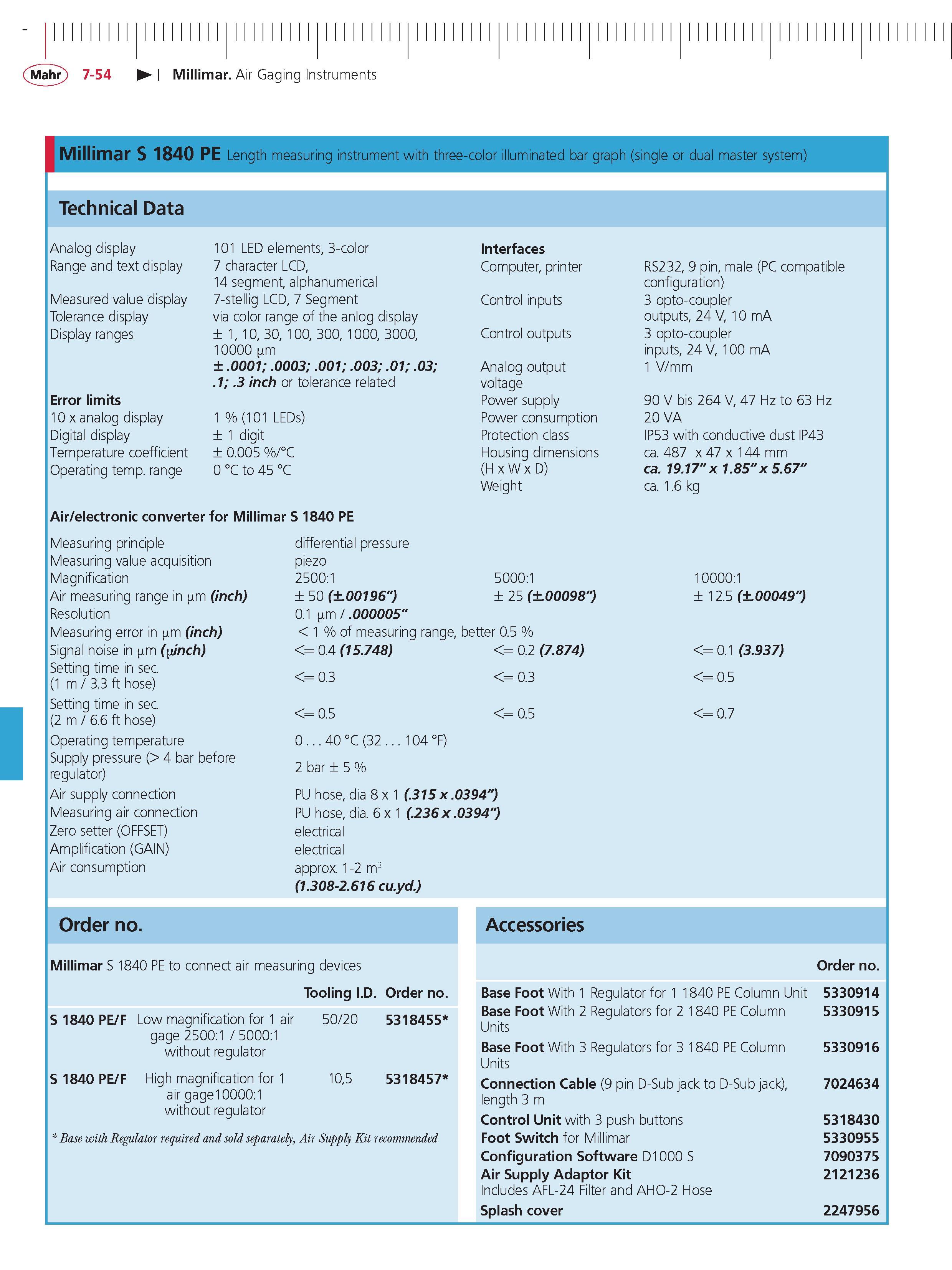

Mahr 7-54 Millimar Air Gaging Instruments Millimar S 1840 PE Length measuring instrument with three-color illuminated bar graph (single or dual master system) technical Data Analog display Range and text display Measured value display Tolerance display Display ranges error limits 10 x analog display Digital display Temperature coefficient Operating temp. range 101 LED elements 3-color 7 character LCD 14 segment alphanumerical 7-stellig LCD 7 Segment via color range of the anlog display 1 10 30 100 300 1000 3000 10000 m .0001; .0003; .001; .003; .01; .03; .1; .3 inch or tolerance related 1 % (101 LEDs) 1 digit 0.005 % C 0 C to 45 C interfaces Computer printer Control inputs Control outputs Analog output voltage Power supply Power consumption Protection class Housing dimensions (H x W x D) Weight Air electronic converter for Millimar S 1840 PE Measuring principle Measuring value acquisition Magnification Air measuring range in m (inch) Resolution Measuring error in m (inch) Signal noise in m (yjnch) Setting time in sec. (1 m 3.3 ft hose) Setting time in sec. (2 m 6.6 ft hose) Operating temperature Supply pressure ( 4 bar before regulator) Air supply connection Measuring air connection Zero setter (OFFSET) Amplification (GAIN) Air consumption differential pressure piezo 2500:1 5000:1 50 (.00196") 25 (+00098') 0.1 m .000005" 1 % of measuring range better 0.5 % 0.4 (15.748) 0.2 (7.874) 0.3 0.3 0.5 0.5 0 . 40 C (32 . 104 F) 2 bar 5 % PU hose dia 8 x 1 (.315 x .0394") PU hose dia. 6 x 1 (.236 x .0394') electrical electrical approx. 1-2 m3 (1.308-2.616 cu.yd.) order no. Accessories Millimar S 1840 PE to connect air measuring devices Tooling I.D. order no. 50 20 5318455 RS232 9 pin male (PC compatible configuration) 3 opto-coupler outputs 24 V 10 mA 3 opto-coupler inputs 24 V 100 mA 1 V mm 90 V bis 264 V 47 Hz to 63 Hz 20 VA IP53 with conductive dust IP43 ca. 487 x 47 x 144 mm ca. 19.17"x 1.85"x 5.67" ca. 1.6 kg 10000:1 12.5 (+00049') 0.1 (3.937) 0.5 0.7 S 1840 PE F Low magnification for 1 air gage 2500:1 5000:1 without regulator S 1840 PE F High magnification for 1 air gage10000:1 without regulator 105 5318457 Base with Regulator required and sold separately Air Supply Kit recommended order no. Base Foot With 1 Regulator for 1 1840 PE Column Unit 5330914 Base Foot With 2 Regulators for 2 1840 PE Column 5330915 Units base Foot With 3 Regulators for 3 1840 PE Column 5330916 Units Connection Cable (9 pin D-Sub jack to D-Sub jack) 7024634 length 3 m Control unit with 3 push buttons 5318430 Foot Switch for Millimar 5330955 Configuration Software D1000 S 7090375 Air Supply Adaptor Kit 2121236 Includes AFL-24 Filter and AHO-2 Hose Splash cover 2247956
