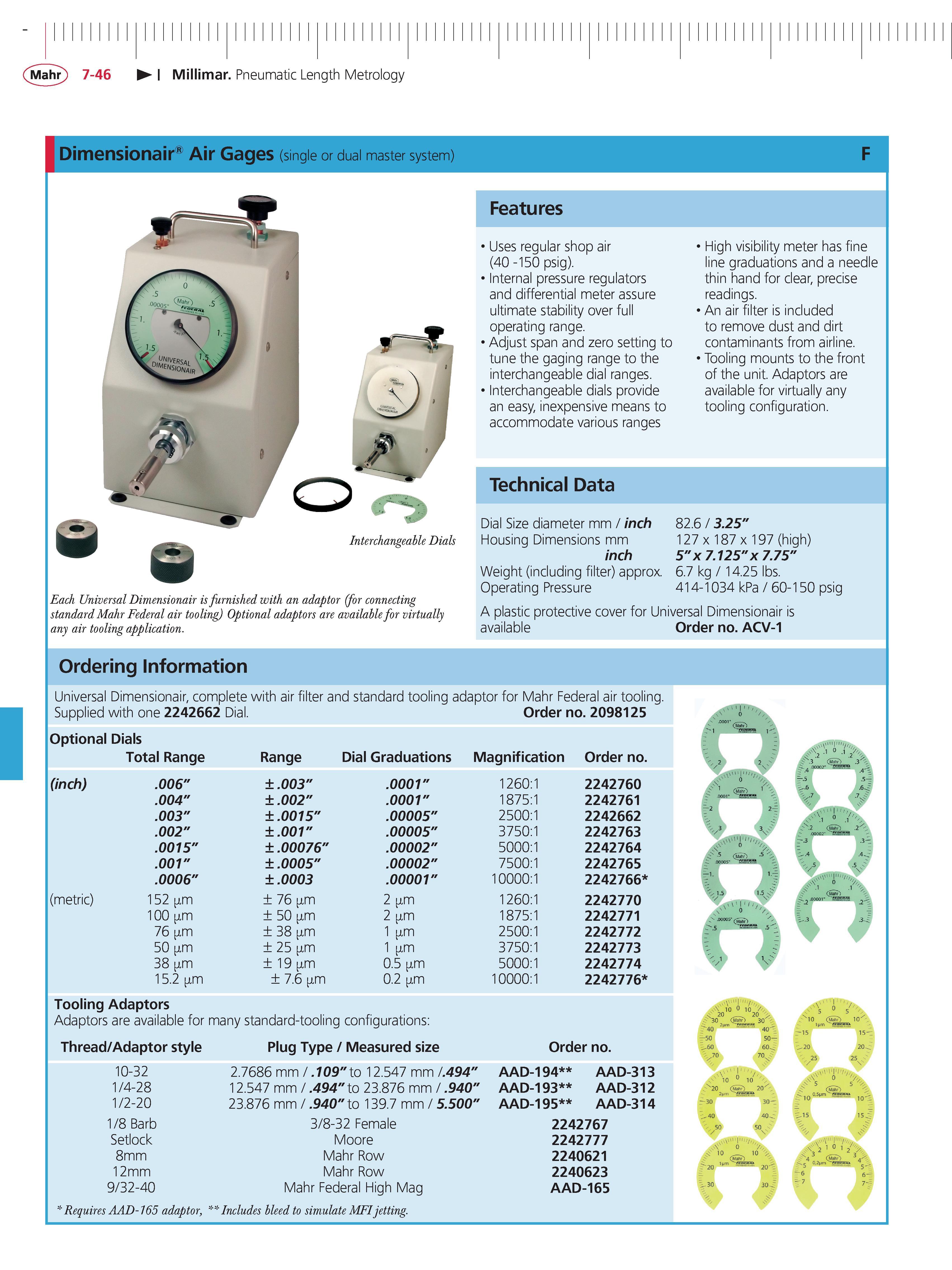

Mahr 7-46 Millimar Pneumatic Length Metrology Dimensionair Air Gages (single or dual master system) Features Uses regular shop air (40 -150 psig). Internal pressure regulators and differential meter assure ultimate stability over full operating range. Adjust span and zero setting to tune the gaging range to the interchangeable dial ranges. Interchangeable dials provide an easy inexpensive means to accommodate various ranges High visibility meter has fine line graduations and a needle thin hand for clear precise readings. An air filter is included to remove dust and dirt contaminants from airline. Tooling mounts to the front of the unit. Adaptors are available for virtually any tooling configuration. Interchangeable Dials Each Universal Dimensionair is furnished with an adaptor (for connecting standard Mahr Federal air tooling) Optional adaptors are available for virtually any air tooling application. Technical data Dial Size diameter mm inch Housing Dimensions mm inch Weight (including filter) approx. Operating Pressure 82.6 3.25" 127 x 187 x 197 (high) 5" x 7.125" x 7.75" 6.7 kg 14.25 lbs. 414-1034 kPa 60-150 psig A plastic protective cover for Universal Dimensionair is available order no. ACv-1 ordering Information Universal Dimensionair complete with air filter and standard tooling adaptor for Mahr Federal air tooling. Supplied with one 2242662 Dial. order no. 2098125 optional dials total Range Range dial graduations Magnification order no. (inch) (metric) .006" .003" .0001" 1260 1 2242760 .004" .002" .0001" 1875 1 2242761 .003" .0015" .00005" 2500 1 2242662 .002" .001" .00005" 3750 1 2242763 .0015" .00076" .00002" 5000 1 2242764 .001" .0005" .00002" 7500 1 2242765 .0006" .0003 .00001" 10000 1 2242766 152 m 76 m 2 m 1260 1 2242770 100 m 50 m 2 m 1875 1 2242771 76 m 38 m 1 m 2500 1 2242772 50 m 25 m 1 m 3750 1 2242773 38 m 19 m 0.5 m 5000 1 2242774 15.2 m 7.6 m 0.2 m 10000 1 2242776 tooling Adaptors Adaptors are available for many standard-tooling configurations thread Adaptor style Plug type Measured size 10-32 2.7686 mm .109" to 12.547 mm .494" 1 4-28 12.547 mm .494" to 23.876 mm .940" 1 2-20 23.876 mm .940" to 139.7 mm 5.500' 1 8 Barb 3 8-32 Female Setlock Moore 8mm Mahr Row 12mm Mahr Row 9 32-40 Mahr Federal High Mag Requires AAD-165 adaptor Includes bleed to simulate MFIjetting. order no. AAD-194 AAD-313 AAD-193 AAD-312 AAD-195 AAD-314 2242767 2242777 2240621 2240623 AAD-165 F
