259 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.7-39

259 Millimar Electrical Length Measuring Instruments M 7-39 Mahr Electronic Levels Ordering information Accessories Type order no electronic level Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 7-39 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 7-39 0259 ENG Lab2u

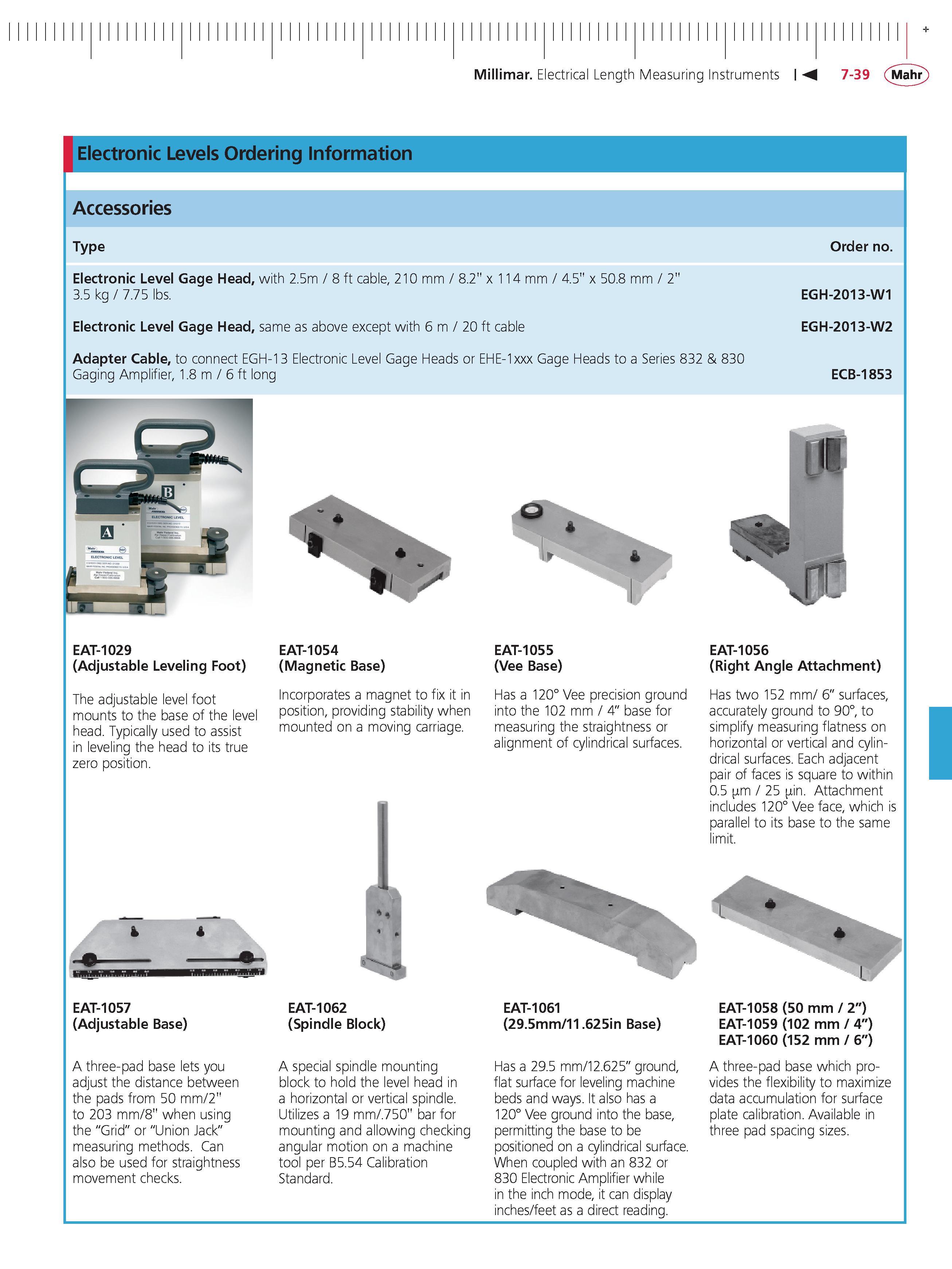

Millimar Electrical Length Measuring Instruments M 7-39 Mahr Electronic Levels Ordering information Accessories Type order no. electronic level Gage Head with 2.5m 8 ft cable 210 mm 8.2" x 114 mm 4.5" x 50.8 mm 2" 3.5 kg 7.75 lbs. EGH-2013-w1 electronic level gage head same as above except with 6 m 20 ft cable EGH-2013-W2 Adapter Cable to connect EGH-13 Electronic Level Gage Heads or EHE-1xxx Gage Heads to a Series 832 & 830 Gaging Amplifier 1.8 m 6 ft long ECB-1853 EAT-1029 (Adjustable leveling Foot) The adjustable level foot mounts to the base of the level head. Typically used to assist in leveling the head to its true zero position. EAT-1054 (Magnetic Base) Incorporates a magnet to fix it in position providing stability when mounted on a moving carriage. EAT-1 057 (Adjustable Base) A three-pad base lets you adjust the distance between the pads from 50 mm 2" to 203 mm 8" when using the "Grid" or "Union Jack" measuring methods. Can also be used for straightness movement checks. EAT-1 062 (Spindle Block) A special spindle mounting block to hold the level head in a horizontal or vertical spindle. Utilizes a 19 mm .750" bar for mounting and allowing checking angular motion on a machine tool per B5.54 Calibration Standard. EAT-1055 (vee Base) Has a 120 Vee precision ground into the 102 mm 4" base for measuring the straightness or alignment of cylindrical surfaces. EAT-1056 (Right Angle Attachment) Has two 152 mm 6" surfaces accurately ground to 90 to simplify measuring flatness on horizontal or vertical and cylindrical surfaces. Each adjacent pair of faces is square to within 0.5 m 25 in. Attachment includes 120 Vee face which is parallel to its base to the same limit. EAT-1061 (29.5mm 11.625in Base) Has a 29.5 mm 12.625" ground flat surface for leveling machine beds and ways. It also has a 120 Vee ground into the base permitting the base to be positioned on a cylindrical surface. When coupled with an 832 or 830 Electronic Amplifier while in the inch mode it can display inches feet as a direct reading. EAT-1058 (50 mm 2") EAT-1059 (102 mm 4") EAT-1060 (152 mm 6") A three-pad base which provides the flexibility to maximize data accumulation for surface plate calibration. Available in three pad spacing sizes.
