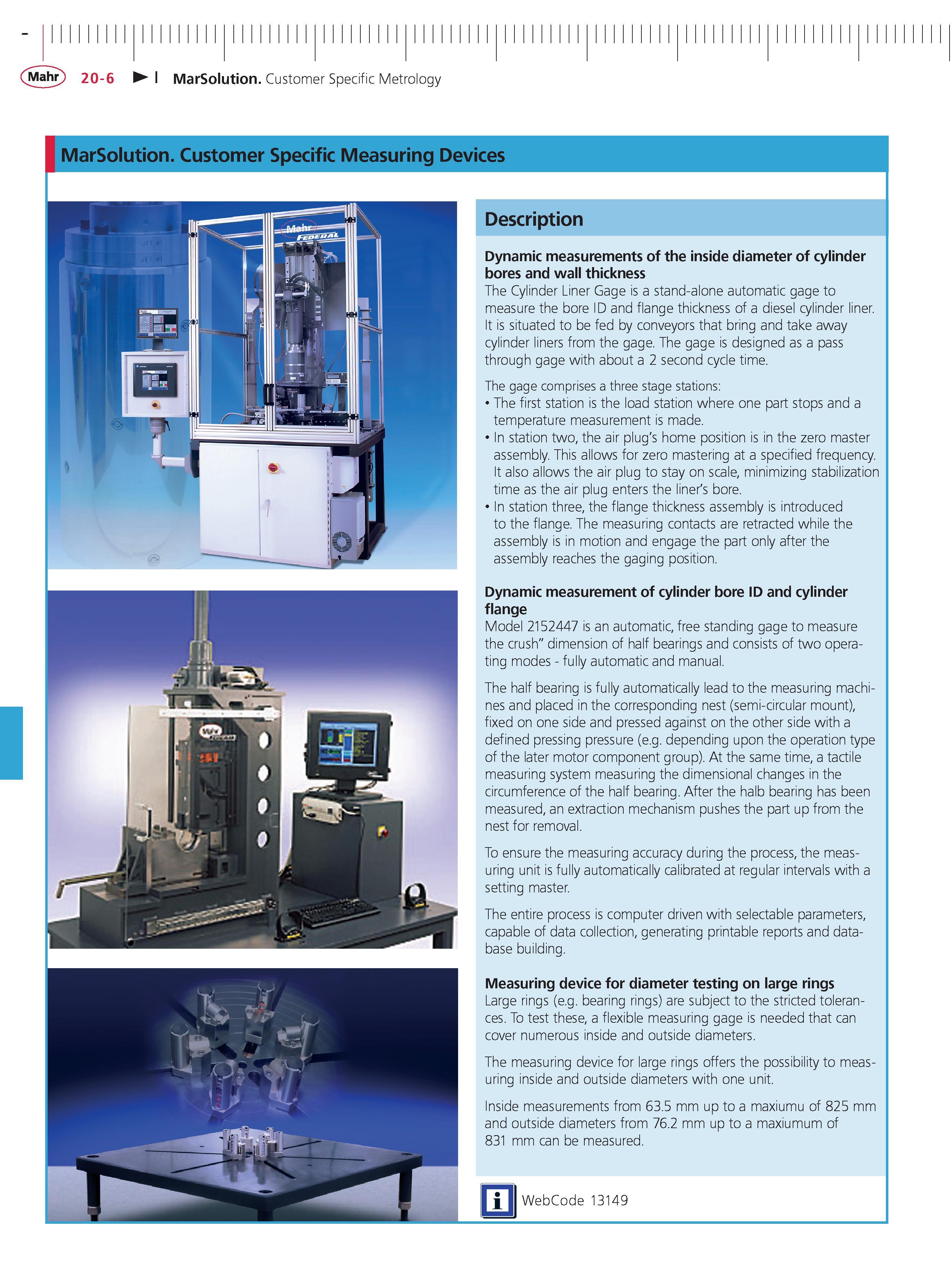

579 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.20-6

579 Mahr MarSolution Customer Specific Metrology MarSolution Customer Specific Measuring Devices Description Dynamic measurements of the inside dia Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 20-6 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 20-6 0579 ENG Lab2u

Mahr MarSolution Customer Specific Metrology MarSolution Customer Specific Measuring Devices Description Dynamic measurements of the inside diameter of cylinder bores and wall thickness The Cylinder Liner Gage is a stand-alone automatic gage to measure the bore ID and flange thickness of a diesel cylinder liner. It is situated to be fed by conveyors that bring and take away cylinder liners from the gage. The gage is designed as a pass through gage with about a 2 second cycle time. The gage comprises a three stage stations The first station is the load station where one part stops and a temperature measurement is made. In station two the air plug's home position is in the zero master assembly. This allows for zero mastering at a specified frequency. It also allows the air plug to stay on scale minimizing stabilization time as the air plug enters the liner's bore. In station three the flange thickness assembly is introduced to the flange. The measuring contacts are retracted while the assembly is in motion and engage the part only after the assembly reaches the gaging position. Dynamic measurement of cylinder bore ID and cylinder flange Model 2152447 is an automatic free standing gage to measure the crush" dimension of half bearings and consists of two operating modes - fully automatic and manual. The half bearing is fully automatically lead to the measuring machines and placed in the corresponding nest (semi-circular mount) fixed on one side and pressed against on the other side with a defined pressing pressure (e.g. depending upon the operation type of the later motor component group). At the same time a tactile measuring system measuring the dimensional changes in the circumference of the half bearing. After the halb bearing has been measured an extraction mechanism pushes the part up from the nest for removal. To ensure the measuring accuracy during the process the measuring unit is fully automatically calibrated at regular intervals with a setting master. The entire process is computer driven with selectable parameters capable of data collection generating printable reports and database building. Measuring device for diameter testing on large rings Large rings (e.g. bearing rings) are subject to the stricted tolerances. To test these a flexible measuring gage is needed that can cover numerous inside and outside diameters. The measuring device for large rings offers the possibility to measuring inside and outside diameters with one unit. Inside measurements from 63.5 mm up to a maxiumu of 825 mm and outside diameters from 76.2 mm up to a maxiumum of 831 mm can be measured. m WebCode 13149
