538 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.17-5

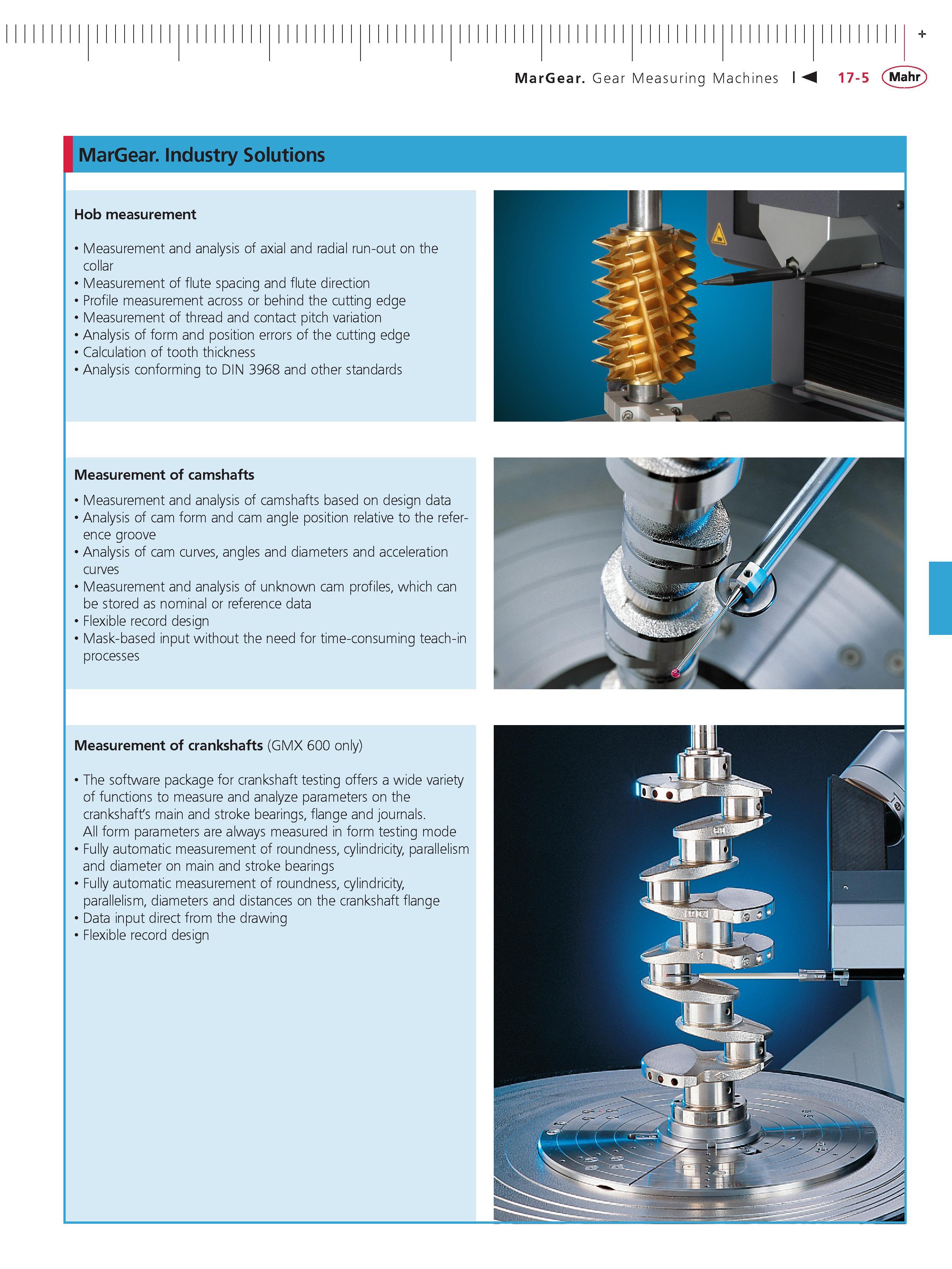

538 MarGear Gear Measuring Machines 17-5 Mahr MarGear Industry Solutions Hob measurement Measurement and analysis of axial and radial run-out on th Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 17-5 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 17-5 0538 ENG Lab2u

MarGear Gear Measuring Machines 17-5 Mahr MarGear Industry Solutions Hob measurement Measurement and analysis of axial and radial run-out on the collar Measurement of flute spacing and flute direction Profile measurement across or behind the cutting edge Measurement of thread and contact pitch variation Analysis of form and position errors of the cutting edge Calculation of tooth thickness Analysis conforming to DIN 3968 and other standards Measurement of camshafts Measurement and analysis of camshafts based on design data Analysis of cam form and cam angle position relative to the reference groove Analysis of cam curves angles and diameters and acceleration curves Measurement and analysis of unknown cam profiles which can be stored as nominal or reference data Flexible record design Mask-based input without the need for time-consuming teach-in processes Measurement of crankshafts (GMX 600 only) The software package for crankshaft testing offers a wide variety of functions to measure and analyze parameters on the crankshaft's main and stroke bearings flange and journals. All form parameters are always measured in form testing mode Fully automatic measurement of roundness cylindricity parallelism and diameter on main and stroke bearings Fully automatic measurement of roundness cylindricity parallelism diameters and distances on the crankshaft flange Data input direct from the drawing Flexible record design +
