537 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.17-4

537 MarGear Industry Solutions Measurement of spur gears Measurement and analysis of internal and external gears up to a 90 helix angle Analysis ac Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 17-4 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 17-4 0537 ENG Lab2u

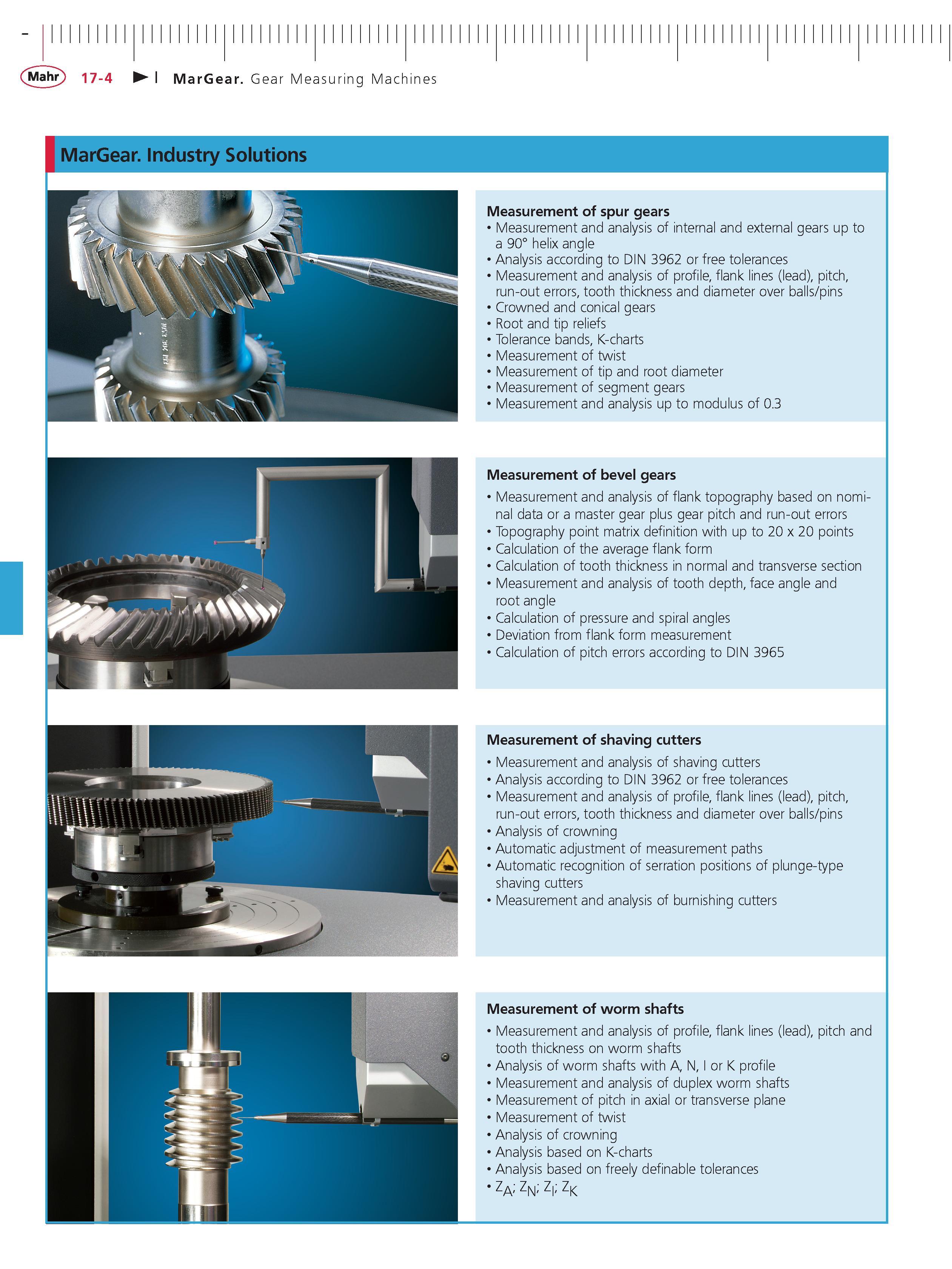

MarGear Industry Solutions Measurement of spur gears Measurement and analysis of internal and external gears up to a 90 helix angle Analysis according to DIN 3962 or free tolerances Measurement and analysis of profile flank lines (lead) pitch run-out errors tooth thickness and diameter over balls pins Crowned and conical gears Root and tip reliefs Tolerance bands K-charts Measurement of twist Measurement of tip and root diameter Measurement of segment gears Measurement and analysis up to modulus of 0.3 Measurement of bevel gears Measurement and analysis of flank topography based on nominal data or a master gear plus gear pitch and run-out errors Topography point matrix definition with up to 20 x 20 points Calculation of the average flank form Calculation of tooth thickness in normal and transverse section Measurement and analysis of tooth depth face angle and root angle Calculation of pressure and spiral angles Deviation from flank form measurement Calculation of pitch errors according to DIN 3965 Measurement of shaving cutters Measurement and analysis of shaving cutters Analysis according to DIN 3962 or free tolerances Measurement and analysis of profile flank lines (lead) pitch run-out errors tooth thickness and diameter over balls pins Analysis of crowning Automatic adjustment of measurement paths Automatic recognition of serration positions of plunge-type shaving cutters Measurement and analysis of burnishing cutters Measurement of worm shafts Measurement and analysis of profile flank lines (lead) pitch and tooth thickness on worm shafts Analysis of worm shafts with A N or K profile Measurement and analysis of duplex worm shafts Measurement of pitch in axial or transverse plane Measurement of twist Analysis of crowning Analysis based on K-charts Analysis based on freely definable tolerances ZA; ZN; ZI; ZK
