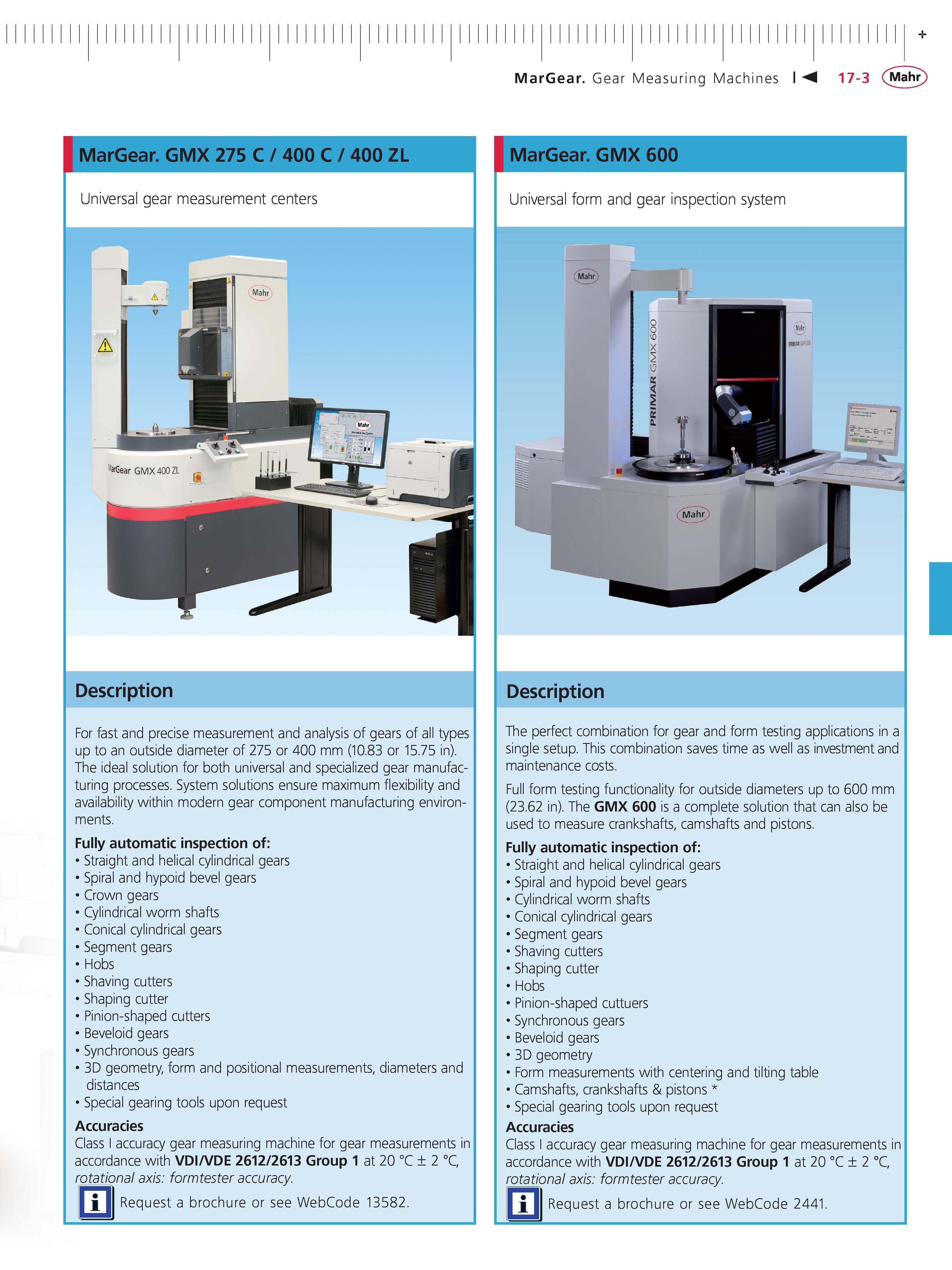

536 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.17-3

536 MarGear Gear Measuring Machines M 17-3 Mahr MarGear GMX 275 C 400 C 400 ZL Universal gear measurement centers Description For fast and precise Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 17-3 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 17-3 0536 ENG Lab2u

MarGear Gear Measuring Machines M 17-3 Mahr MarGear GMX 275 C 400 C 400 ZL Universal gear measurement centers Description For fast and precise measurement and analysis of gears of all types up to an outside diameter of 275 or 400 mm (10.83 or 15.75 in). The ideal solution for both universal and specialized gear manufacturing processes. System solutions ensure maximum flexibility and availability within modern gear component manufacturing environments. Fully automatic inspection of Straight and helical cylindrical gears Spiral and hypoid bevel gears Crown gears Cylindrical worm shafts Conical cylindrical gears Segment gears Hobs Shaving cutters Shaping cutter Pinion-shaped cutters Beveloid gears Synchronous gears 3D geometry form and positional measurements diameters and distances Special gearing tools upon request Accuracies Class accuracy gear measuring machine for gear measurements in accordance with VDI VDE 2612 2613 Group 1 at 20 C 2 C nal axis formtester accuracy. Request a brochure or see WebCode 13582. MarGear GMX 600 Universal form and gear inspection system Description The perfect combination for gear and form testing applications in a single setup. This combination saves time as well as investment and maintenance costs. Full form testing functionality for outside diameters up to 600 mm (23.62 in). The GMX 600 is a complete solution that can also be used to measure crankshafts camshafts and pistons. Fully automatic inspection of Straight and helical cylindrical gears Spiral and hypoid bevel gears Cylindrical worm shafts Conical cylindrical gears Segment gears Shaving cutters Shaping cutter Hobs Pinion-shaped cuttuers Synchronous gears Beveloid gears 3D geometry Form measurements with centering and tilting table Camshafts crankshafts & pistons Special gearing tools upon request Accuracies Class accuracy gear measuring machine for gear measurements in accordance with VDI VDE 2612 2613 Group 1 at 20 C 2 C rotational axis formtester accuracy. m Request a brochure or see WebCode 2441.
