532 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.16-21

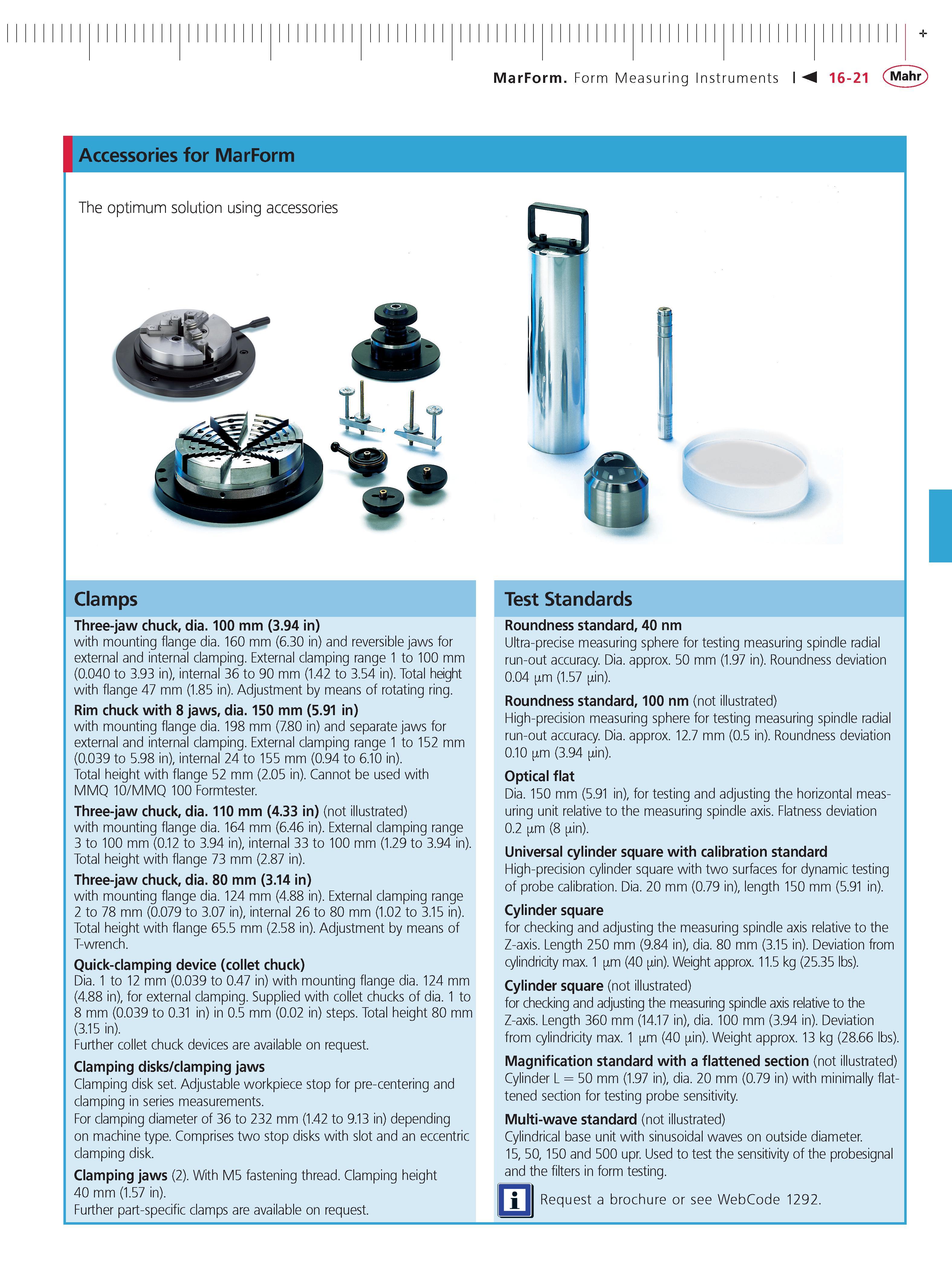

532 MarForm Form Measuring Instruments M 16-21 Mahr Accessories for MarForm The optimum solution using accessories Clamps Three-jaw chuck dia 100 m Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 16-21 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 16-21 0532 ENG Lab2u

MarForm Form Measuring Instruments M 16-21 Mahr Accessories for MarForm The optimum solution using accessories Clamps Three-jaw chuck dia. 100 mm (3.94 in) with mounting flange dia. 160 mm (6.30 in) and reversible jaws for external and internal clamping. External clamping range 1 to 100 mm (0.040 to 3.93 in) internal 36 to 90 mm (1.42 to 3.54 in). Total height with flange 47 mm (1.85 in). Adjustment by means of rotating ring. Rim chuck with 8 jaws dia. 150 mm (5.91 in) with mounting flange dia. 198 mm (7.80 in) and separate jaws for external and internal clamping. External clamping range 1 to 152 mm (0.039 to 5.98 in) internal 24 to 155 mm (0.94 to 6.10 in). Total height with flange 52 mm (2.05 in). Cannot be used with MMQ 10 MMQ 100 Formtester. Three-jaw chuck dia. 110 mm (4.33 in) (not illustrated) with mounting flange dia. 164 mm (6.46 in). External clamping range 3 to 100 mm (0.12 to 3.94 in) internal 33 to 100 mm (1.29 to 3.94 in). Total height with flange 73 mm (2.87 in). Three-jaw chuck dia. 80 mm (3.14 in) with mounting flange dia. 124 mm (4.88 in). External clamping range 2 to 78 mm (0.079 to 3.07 in) internal 26 to 80 mm (1.02 to 3.15 in). Total height with flange 65.5 mm (2.58 in). Adjustment by means of T-wrench. Quick-clamping device (collet chuck) Dia. 1 to 12 mm (0.039 to 0.47 in) with mounting flange dia. 124 mm (4.88 in) for external clamping. Supplied with collet chucks of dia. 1 to 8 mm (0.039 to 0.31 in) in 0.5 mm (0.02 in) steps. Total height 80 mm (3.15 in). Further collet chuck devices are available on request. Clamping disks clamping jaws Clamping disk set. Adjustable workpiece stop for pre-centering and clamping in series measurements. For clamping diameter of 36 to 232 mm (1.42 to 9.13 in) depending on machine type. Comprises two stop disks with slot and an eccentric clamping disk. Clamping jaws (2). With M5 fastening thread. Clamping height 40 mm (1.57 in). Further part-specific clamps are available on request. Test Standards Roundness standard 40 nm Ultra-precise measuring sphere for testing measuring spindle radial run-out accuracy. Dia. approx. 50 mm (1.97 in). Roundness deviation 0.04 m (1.57 in). Roundness standard 100 nm (not illustrated) High-precision measuring sphere for testing measuring spindle radial run-out accuracy. Dia. approx. 12.7 mm (0.5 in). Roundness deviation 0.10 m (3.94 in). Optical flat Dia. 150 mm (5.91 in) for testing and adjusting the horizontal measuring unit relative to the measuring spindle axis. Flatness deviation 0.2 m (8 in). Universal cylinder square with calibration standard High-precision cylinder square with two surfaces for dynamic testing of probe calibration. Dia. 20 mm (0.79 in) length 150 mm (5.91 in). Cylinder square for checking and adjusting the measuring spindle axis relative to the Z-axis. Length 250 mm (9.84 in) dia. 80 mm (3.15 in). Deviation from cylindricity max. 1 m (40 in). Weight approx. 11.5 kg (25.35 lbs). Cylinder square (not illustrated) for checking and adjusting the measuring spindle axis relative to the Z-axis. Length 360 mm (14.17 in) dia. 100 mm (3.94 in). Deviation from cylindricity max. 1 m (40 in). Weight approx. 13 kg (28.66 lbs). Magnification standard with a flattened section (not illustrated) Cylinder L 50 mm (1.97 in) dia. 20 mm (0.79 in) with minimally flattened section for testing probe sensitivity. Multi-wave standard (not illustrated) Cylindrical base unit with sinusoidal waves on outside diameter. 15 50 150 and 500 upr. Used to test the sensitivity of the probesignal and the filters in form testing. in Request a brochure or see WebCode 1292.
