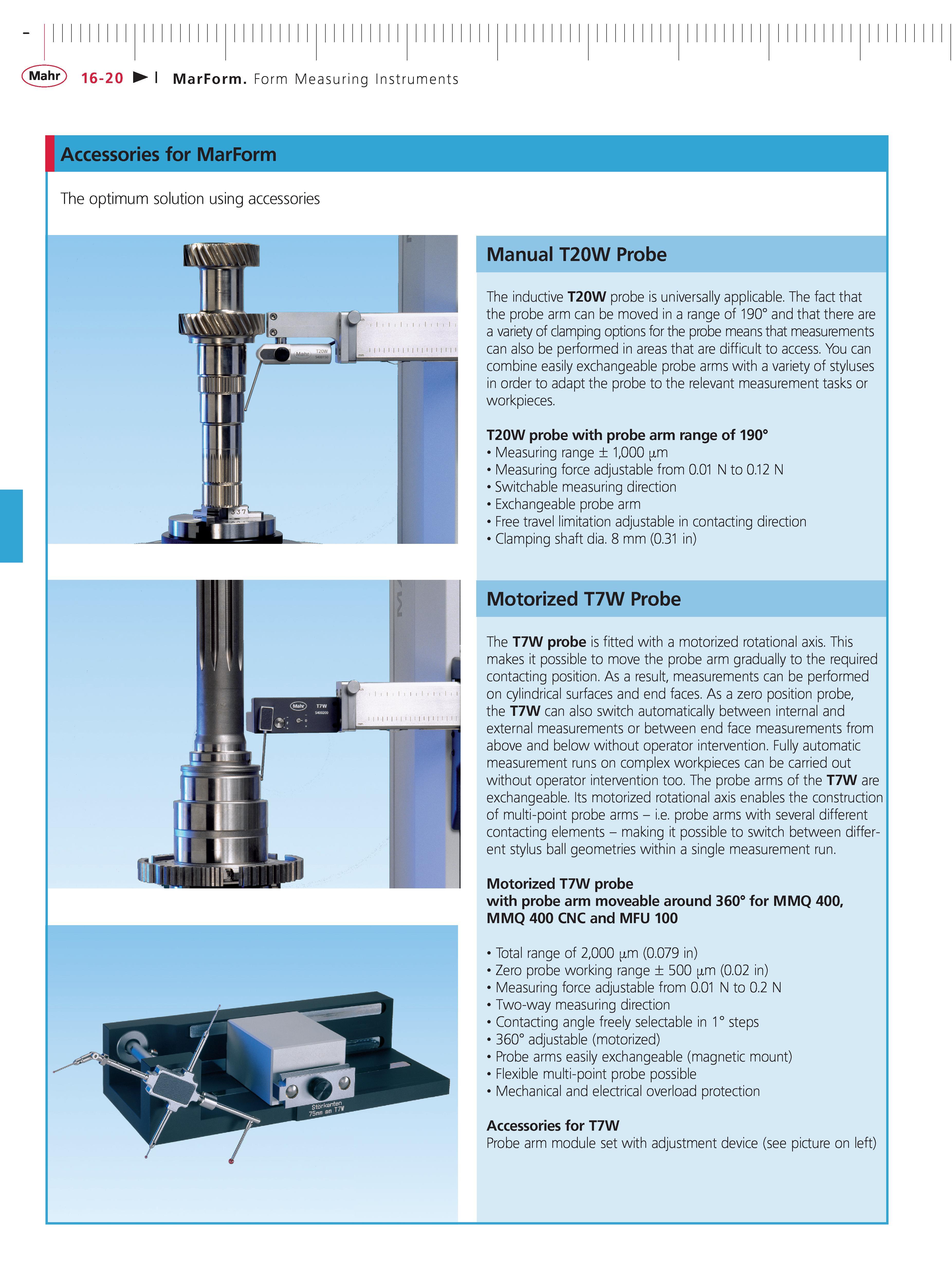

Accessories for MarForm The optimum solution using accessories Manual T20W Probe The inductive T20W probe is universally applicable. The fact that the probe arm can be moved in a range of 190 and that there are a variety of clamping options for the probe means that measurements can also be performed in areas that are difficult to access. You can combine easily exchangeable probe arms with a variety of styluses in order to adapt the probe to the relevant measurement tasks or workpieces. T20W probe with probe arm range of 190 Measuring range 1000 m Measuring force adjustable from 0.01 N to 0.12 N Switchable measuring direction Exchangeable probe arm Free travel limitation adjustable in contacting direction Clamping shaft dia. 8 mm (0.31 in) Motorized T7W Probe The T7W probe is fitted with a motorized rotational axis. This makes it possible to move the probe arm gradually to the required contacting position. As a result measurements can be performed on cylindrical surfaces and end faces. As a zero position probe the T7W can also switch automatically between internal and external measurements or between end face measurements from above and below without operator intervention. Fully automatic measurement runs on complex workpieces can be carried out without operator intervention too. The probe arms of the T7W are exchangeable. Its motorized rotational axis enables the construction of multi-point probe arms - i.e. probe arms with several different contacting elements - making it possible to switch between different stylus ball geometries within a single measurement run. Motorized T7W probe with probe arm moveable around 360 for MMQ 400 MMQ 400 CNC and MFU 100 Total range of 2000 m (0.079 in) Zero probe working range 500 m (0.02 in) Measuring force adjustable from 0.01 N to 0.2 N Two-way measuring direction Contacting angle freely selectable in 1 steps 360 adjustable (motorized) Probe arms easily exchangeable (magnetic mount) Flexible multi-point probe possible Mechanical and electrical overload protection Accessories for T7W Probe arm module set with adjustment device (see picture on left)
