526 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.16-15

526 MarForm Form Measuring Instruments M 16-15 Mahr Software Packages for Special Applications Expansion package for piston mesasurement and evalua Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 16-15 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 16-15 0526 ENG Lab2u

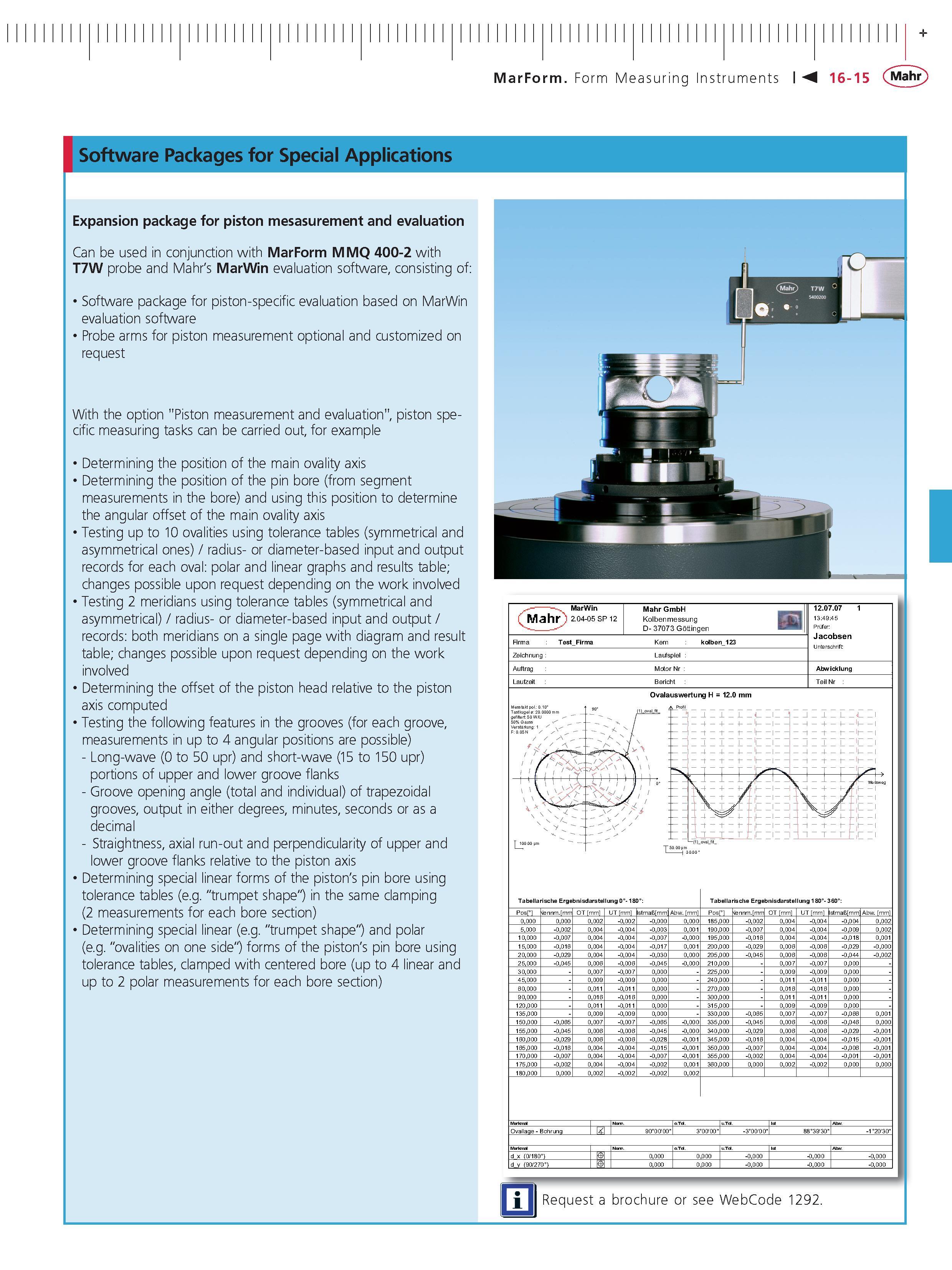

MarForm Form Measuring Instruments M 16-15 Mahr Software Packages for Special Applications Expansion package for piston mesasurement and evaluation Can be used in conjunction with MarForm MMQ 400-2 with T7W probe and Mahr's MarWin evaluation software consisting of Software package for piston-specific evaluation based on MarWin evaluation software Probe arms for piston measurement optional and customized on request With the option "Piston measurement and evaluation" piston specific measuring tasks can be carried out for example Determining the position of the main ovality axis Determining the position of the pin bore (from segment measurements in the bore) and using this position to determine the angular offset of the main ovality axis Testing up to 10 ovalities using tolerance tables (symmetrical and asymmetrical ones) radius- or diameter-based input and output records for each oval polar and linear graphs and results table; changes possible upon request depending on the work involved Testing 2 meridians using tolerance tables (symmetrical and asymmetrical) radius- or diameter-based input and output records both meridians on a single page with diagram and result table; changes possible upon request depending on the work involved Determining the offset of the piston head relative to the piston axis computed Testing the following features in the grooves (for each groove measurements in up to 4 angular positions are possible) - Long-wave (0 to 50 upr) and short-wave (15 to 150 upr) portions of upper and lower groove flanks - Groove opening angle (total and individual) of trapezoidal grooves output in either degrees minutes seconds or as a decimal - Straightness axial run-out and perpendicularity of upper and lower groove flanks relative to the piston axis Determining special linear forms of the piston's pin bore using tolerance tables (e.g. "trumpet shape") in the same clamping (2 measurements for each bore section) Determining special linear (e.g. "trumpet shape") and polar (e.g. "ovalities on one side") forms of the piston's pin bore using tolerance tables clamped with centered bore (up to 4 linear and up to 2 polar measurements for each bore section) MarWin Mahr 2.04-05 SP 12 Mahr GmbH Kolbenmessung D- 37073 Gottingen HI 12.07.07 1 13:49:45 Firma TestFirma Kern kolben123 Zeichnung Laufspiel Auftrag Motor Nr Abwicklung Laufzeit Bericht TeilNr Ovalauswertung H 12.0 mm L 1 L 1- - + - -1 1 J L L 1 - + - f- - 1 -t T 1-I I- t 1- 1-11 1 1 1 1 1 7 T r I- i 'rvn L. 1 1 L TV4 +VT jf 1 I- . J 1 L tS - h -t y J1 1 i i - 4 4- - -t T 1" ' I- I- l . 1 1 l l -11-1- I1 1 11- -1 r 1 Tabellarische Ergebnisdarstellung 0- 18t Ii t r r Tabellarische Ergebnisdarstellung 180- 360 Pos 0000 5000 10000 15000 Pos 185.000 190.000 195.000 200.000 20000 25.000 30.000 45.000 205.000 210.000 225.000 240.000 60000 90.000 120.000 135.000 150.000 270.000 300.000 315.000 330.000 335.000 155.000 160.000 165.000 170.000 340.000 345.000 350.000 355.000 175000 360000 Ovallage - Bohrung mm Ol mm 000 000 Ul mm mm Ol mm Ul mm 000. stmali -0 0.002 00 -0 015 00 9000'00" -300'00" 20'30 d x (0 180) -U000 d -U000 i Request a brochure or see WebCode 1292.
