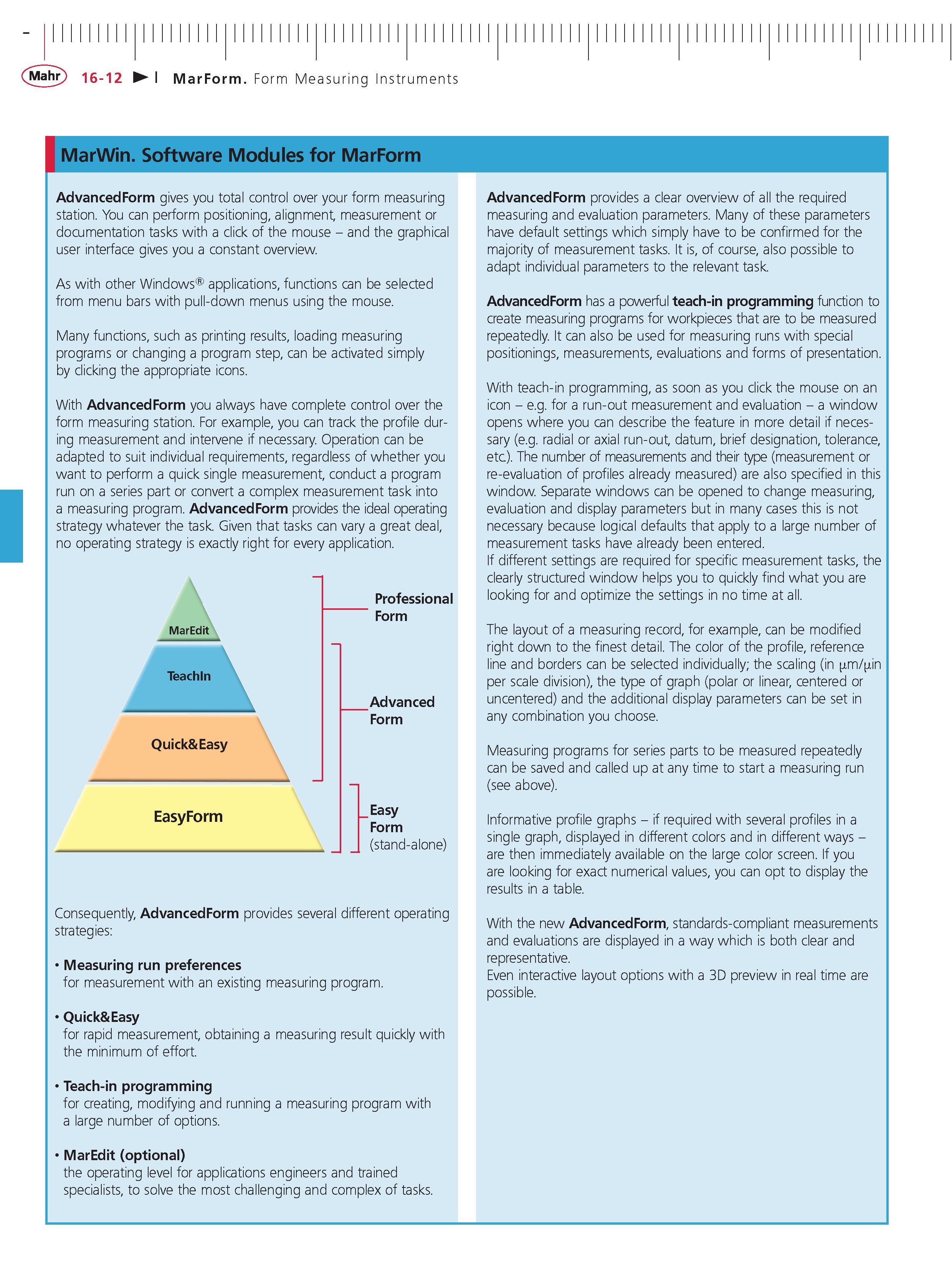

Mahr 16-12 MarForm Form Measuring Instruments MarWin. Software Modules for MarForm AdvancedForm gives you total control over your form measuring station. You can perform positioning alignment measurement or documentation tasks with a click of the mouse - and the graphical user interface gives you a constant overview. As with other Windows applications functions can be selected from menu bars with pull-down menus using the mouse. Many functions such as printing results loading measuring programs or changing a program step can be activated simply by clicking the appropriate icons. With AdvancedForm you always have complete control over the form measuring station. For example you can track the profile during measurement and intervene if necessary. Operation can be adapted to suit individual requirements regardless of whether you want to perform a quick single measurement conduct a program run on a series part or convert a complex measurement task into a measuring program. AdvancedForm provides the ideal operating strategy whatever the task. Given that tasks can vary a great deal no operating strategy is exactly right for every application. MarEdit TeachIn Quick&Easy EasyForm Professional Form Advanced Form Easy Form (stand-alone) Consequently AdvancedForm provides several different operating strategies Measuring run preferences for measurement with an existing measuring program. Quick&Easy for rapid measurement obtaining a measuring result quickly with the minimum of effort. AdvancedForm provides a clear overview of all the required measuring and evaluation parameters. Many of these parameters have default settings which simply have to be confirmed for the majority of measurement tasks. It is of course also possible to adapt individual parameters to the relevant task. AdvancedForm has a powerful teach-in programming function to create measuring programs for workpieces that are to be measured repeatedly. It can also be used for measuring runs with special positionings measurements evaluations and forms of presentation. With teach-in programming as soon as you click the mouse on an icon - e.g. for a run-out measurement and evaluation - a window opens where you can describe the feature in more detail if necessary (e.g. radial or axial run-out datum brief designation tolerance etc.). The number of measurements and their type (measurement or re-evaluation of profiles already measured) are also specified in this window. Separate windows can be opened to change measuring evaluation and display parameters but in many cases this is not necessary because logical defaults that apply to a large number of measurement tasks have already been entered. If different settings are required for specific measurement tasks the clearly structured window helps you to quickly find what you are looking for and optimize the settings in no time at all. The layout of a measuring record for example can be modified right down to the finest detail. The color of the profile reference line and borders can be selected individually; the scaling (in m in per scale division) the type of graph (polar or linear centered or uncentered) and the additional display parameters can be set in any combination you choose. Measuring programs for series parts to be measured repeatedly can be saved and called up at any time to start a measuring run (see above). Informative profile graphs - if required with several profiles in a single graph displayed in different colors and in different ways -are then immediately available on the large color screen. If you are looking for exact numerical values you can opt to display the results in a table. With the new AdvancedForm standards-compliant measurements and evaluations are displayed in a way which is both clear and representative. Even interactive layout options with a 3D preview in real time are possible. Teach-in programming for creating modifying and running a measuring program with a large number of options. 1 MarEdit (optional) the operating level for applications engineers and trained specialists to solve the most challenging and complex of tasks.
