522 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.16-11

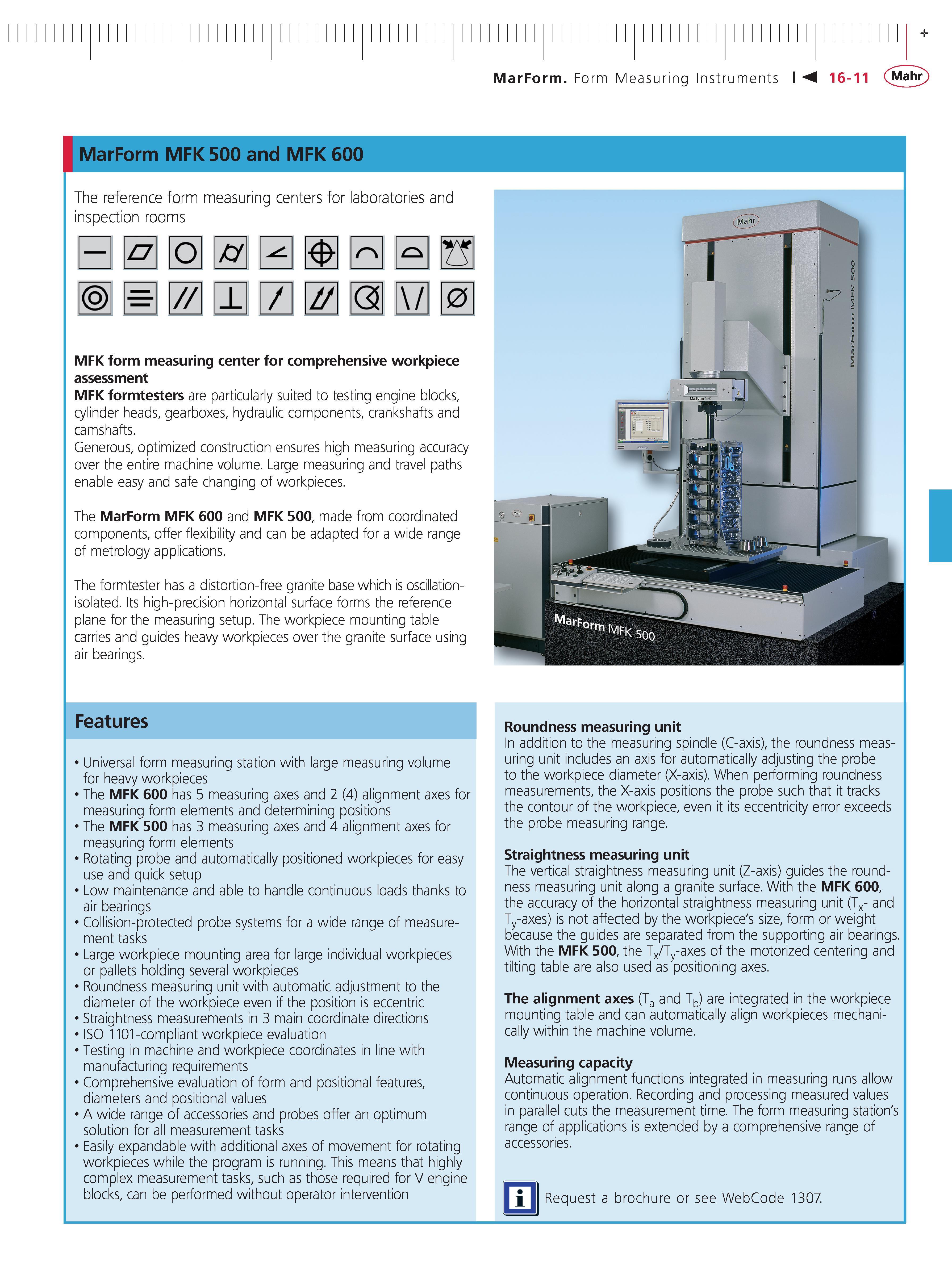

522 MarForm Form Measuring Instruments M 16-11 Mahr MarForm MFK 500 and MFK 600 The reference form measuring centers for laboratories and inspectio Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 16-11 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 16-11 0522 ENG Lab2u

MarForm Form Measuring Instruments M 16-11 Mahr MarForm MFK 500 and MFK 600 The reference form measuring centers for laboratories and inspection rooms MFK form measuring center for comprehensive workpiece assessment MFK formtesters are particularly suited to testing engine blocks cylinder heads gearboxes hydraulic components crankshafts and camshafts. Generous optimized construction ensures high measuring accuracy over the entire machine volume. Large measuring and travel paths enable easy and safe changing of workpieces. The MarForm MFK 600 and MFK 500 made from coordinated components offer flexibility and can be adapted for a wide range of metrology applications. The formtester has a distortion-free granite base which is oscillation-isolated. Its high-precision horizontal surface forms the reference plane for the measuring setup. The workpiece mounting table carries and guides heavy workpieces over the granite surface using air bearings. Features Universal form measuring station with large measuring volume for heavy workpieces The MFK 600 has 5 measuring axes and 2 (4) alignment axes for measuring form elements and determining positions The MFK 500 has 3 measuring axes and 4 alignment axes for measuring form elements Rotating probe and automatically positioned workpieces for easy use and quick setup Low maintenance and able to handle continuous loads thanks to air bearings Collision-protected probe systems for a wide range of measurement tasks Large workpiece mounting area for large individual workpieces or pallets holding several workpieces Roundness measuring unit with automatic adjustment to the diameter of the workpiece even if the position is eccentric Straightness measurements in 3 main coordinate directions ISO 1101-compliant workpiece evaluation Testing in machine and workpiece coordinates in line with manufacturing requirements Comprehensive evaluation of form and positional features diameters and positional values A wide range of accessories and probes offer an optimum solution for all measurement tasks Easily expandable with additional axes of movement for rotating workpieces while the program is running. This means that highly complex measurement tasks such as those required for V engine blocks can be performed without operator intervention Roundness measuring unit In addition to the measuring spindle (C-axis) the roundness measuring unit includes an axis for automatically adjusting the probe to the workpiece diameter (X-axis). When performing roundness measurements the X-axis positions the probe such that it tracks the contour of the workpiece even it its eccentricity error exceeds the probe measuring range. Straightness measuring unit The vertical straightness measuring unit (Z-axis) guides the roundness measuring unit along a granite surface. With the MFK 600 the accuracy of the horizontal straightness measuring unit (Tx- and Ty-axes) is not affected by the workpiece's size form or weight because the guides are separated from the supporting air bearings. With the MFK 500 the Tx Ty-axes of the motorized centering and tilting table are also used as positioning axes. The alignment axes (Ta and Tb) are integrated in the workpiece mounting table and can automatically align workpieces mechanically within the machine volume. Measuring capacity Automatic alignment functions integrated in measuring runs allow continuous operation. Recording and processing measured values in parallel cuts the measurement time. The form measuring station's range of applications is extended by a comprehensive range of accessories. Request a brochure or see WebCode 1307.
