503 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.15-42

503 Mahr 15-42 MarSurf Surface Measuring Instruments and Systems MarSurf PCV 200 Drive Unit Contour drive unit Description The PCV 200 contour driv Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 15-42 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 15-42 0503 ENG Lab2u

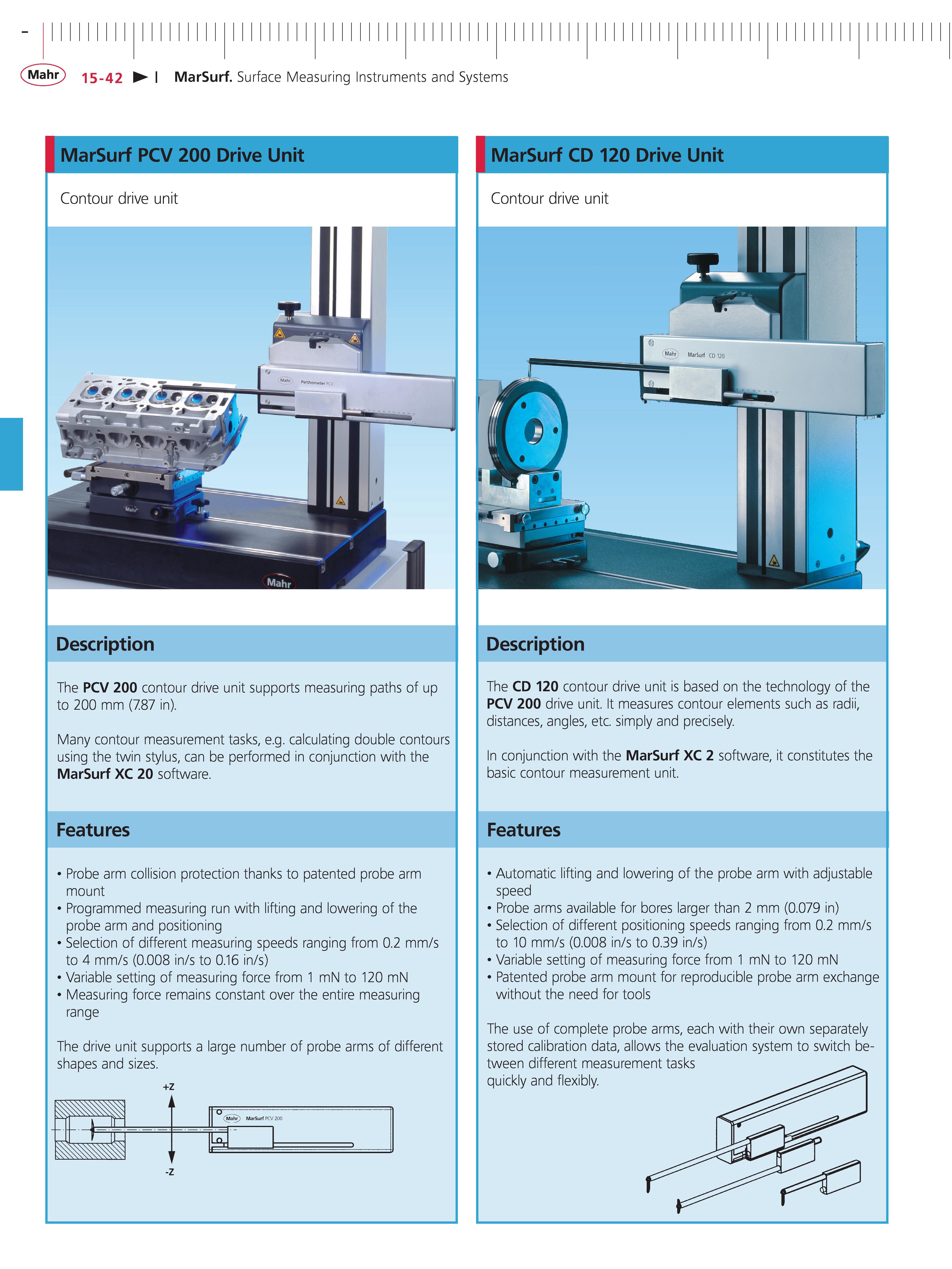

Mahr 15-42 MarSurf Surface Measuring Instruments and Systems MarSurf PCV 200 Drive Unit Contour drive unit Description The PCV 200 contour drive unit supports measuring paths of up to 200 mm (787 in). Many contour measurement tasks e.g. calculating double contours using the twin stylus can be performed in conjunction with the MarSurf XC 20 software. Features Probe arm collision protection thanks to patented probe arm mount Programmed measuring run with lifting and lowering of the probe arm and positioning Selection of different measuring speeds ranging from 0.2 mm s to 4 mm s (0.008 in s to 0.16 in s) Variable setting of measuring force from 1 mN to 120 mN Measuring force remains constant over the entire measuring range The drive unit supports a large number of probe arms of different shapes and sizes. +z -z MarSurf CD 120 Drive Unit Contour drive unit Description The CD 120 contour drive unit is based on the technology of the PCV 200 drive unit. It measures contour elements such as radii distances angles etc. simply and precisely. In conjunction with the MarSurf XC 2 software it constitutes the basic contour measurement unit. Features Automatic lifting and lowering of the probe arm with adjustable speed Probe arms available for bores larger than 2 mm (0.079 in) Selection of different positioning speeds ranging from 0.2 mm s to 10 mm s (0.008 in s to 0.39 in s) Variable setting of measuring force from 1 mN to 120 mN Patented probe arm mount for reproducible probe arm exchange without the need for tools The use of complete probe arms each with their own separately stored calibration data allows the evaluation system to switch between different measurement tasks quickly and flexibly.
