477 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.15-16

477 Mahr 15-16 MarSurf Surface Measuring Instruments and Systems Optional probes for MarSurf PS1 M 300 M 300 C Probes for various measuring tasks T Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 15-16 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 15-16 0477 ENG Lab2u

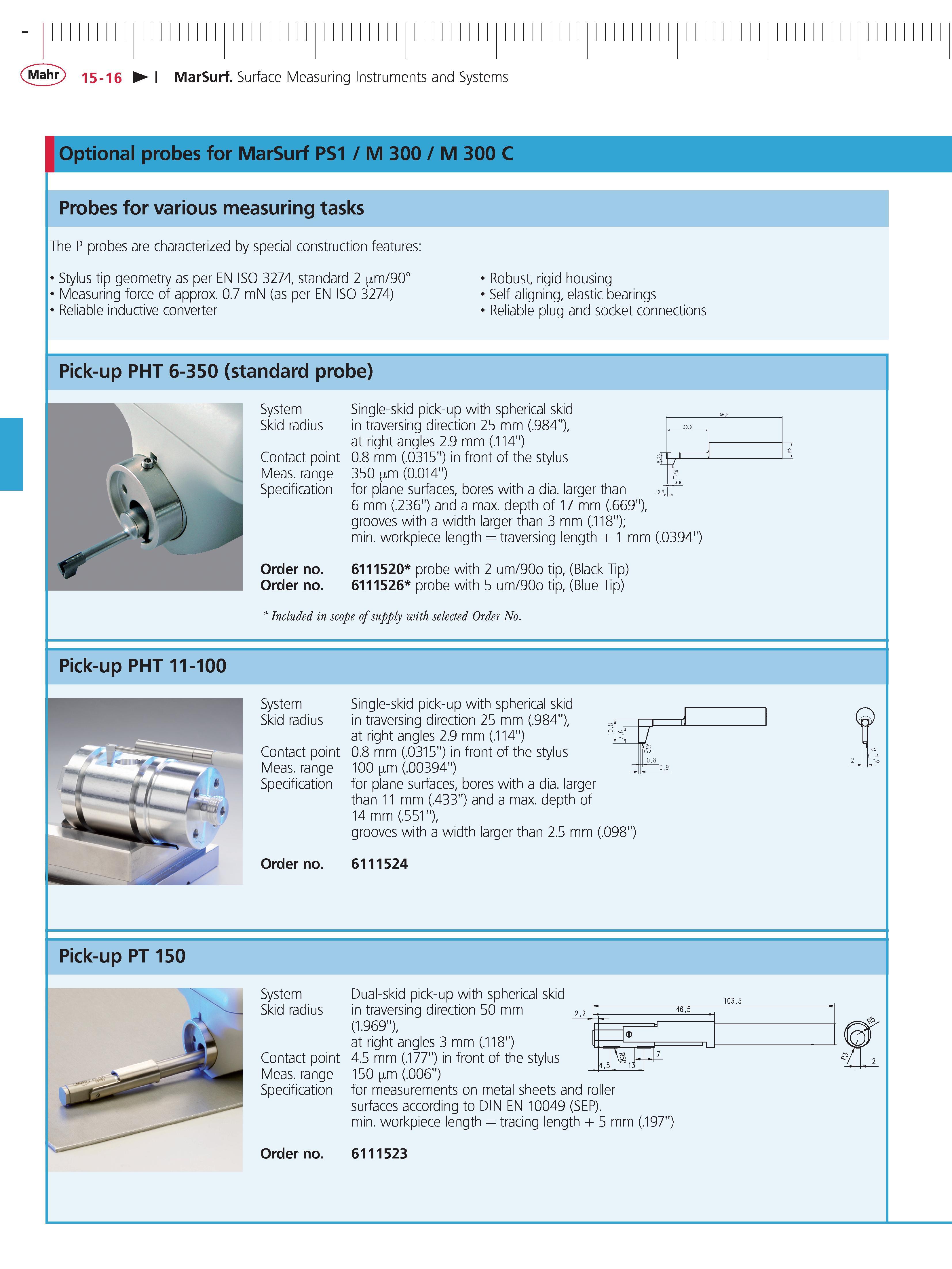

Mahr 15-16 MarSurf Surface Measuring Instruments and Systems Optional probes for MarSurf PS1 M 300 M 300 C Probes for various measuring tasks The P-probes are characterized by special construction features Stylus tip geometry as per EN ISO 3274 standard 2 m 90 Measuring force of approx. 0.7 mN (as per EN ISO 3274) Reliable inductive converter Robust rigid housing Self-aligning elastic bearings Reliable plug and socket connections Pick-up PHT 6-350 (standard probe) System Single-skid pick-up with spherical skid Skid radius in traversing direction 25 mm (.984) at right angles 2.9 mm (.114) Contact point 0.8 mm (.0315) in front of the stylus Meas. range 350 m (0.014) Specification for plane surfaces bores with a dia. larger than 6 mm (.236) and a max. depth of 17 mm (.669) grooves with a width larger than 3 mm (.118); min. workpiece length traversing length + 1 mm (.0394 order no. 6111520 probe with 2 um 90o tip (Black Tip) order no. 6111526 probe with 5 um 90o tip (Blue Tip) Included in scope of supply with selected Order No. Pick-up PHT 11-100 System Single-skid pick-up with spherical skid Skid radius in traversing direction 25 mm (.984) t at right angles 2.9 mm (.114) Contact point 0.8 mm (.0315) in front of the stylus Meas. range 100 m (.00394) Specification for plane surfaces bores with a dia. larger than 11 mm (.433) and a max. depth of 14 mm (.551) grooves with a width larger than 2.5 mm (.098' order no. 6111524 Pick-up PT 150 System Dual-skid pick-up with spherical skid Skid radius in traversing direction 50 mm 2 (1.969) " at right angles 3 mm (.118) Contact point 4.5 mm (.177) in front of the stylus Meas. range 150 m (.006) Specification for measurements on metal sheets and roller surfaces according to DIN EN 10049 (SEP). min. workpiece length tracing length + 5 mm (.197) order no. 6111523
