MAHR | Каталог MAHR 2014 Измерительные инструменты и приборы (Всего 603 стр.)

---

---





451 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.14-3

451 Precimar Precision Length Metrology 14-3 Mahr Precimar Optimar 100 Universal Deal Indicator Testing Instrument Description The cost-effective t Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 14-3 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 14-3 0451 ENG Lab2u

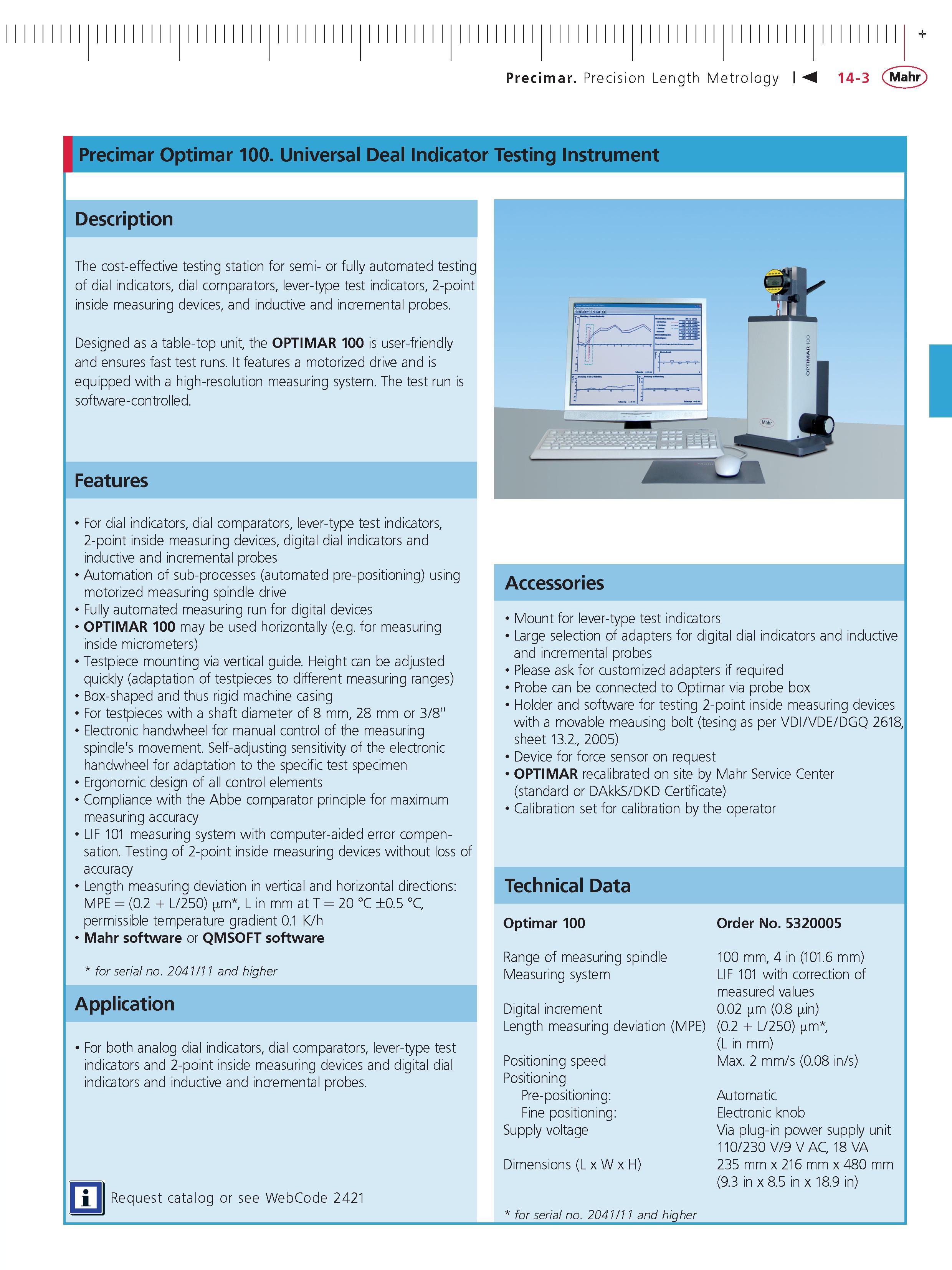

Precimar Precision Length Metrology 14-3 Mahr Precimar Optimar 100. Universal Deal Indicator Testing Instrument Description The cost-effective testing station for semi- or fully automated testing of dial indicators dial comparators lever-type test indicators 2-point inside measuring devices and inductive and incremental probes. Designed as a table-top unit the OPTIMAR 100 is user-friendly and ensures fast test runs. It features a motorized drive and is equipped with a high-resolution measuring system. The test run is software-controlled. Features For dial indicators dial comparators lever-type test indicators 2-point inside measuring devices digital dial indicators and inductive and incremental probes Automation of sub-processes (automated pre-positioning) using motorized measuring spindle drive Fully automated measuring run for digital devices OPTIMAR 100 may be used horizontally (e.g. for measuring inside micrometers) Testpiece mounting via vertical guide. Height can be adjusted quickly (adaptation of testpieces to different measuring ranges) Box-shaped and thus rigid machine casing For testpieces with a shaft diameter of 8 mm 28 mm or 3 8" Electronic handwheel for manual control of the measuring spindle's movement. Self-adjusting sensitivity of the electronic handwheel for adaptation to the specific test specimen Ergonomic design of all control elements Compliance with the Abbe comparator principle for maximum measuring accuracy LIF 101 measuring system with computer-aided error compensation. Testing of 2-point inside measuring devices without loss of accuracy Length measuring deviation in vertical and horizontal directions MPE (0.2 + L 250) m L in mm at T 20 C 0.5 C permissible temperature gradient 0.1 K h Mahr software or QMSOFT software for serial no. 2041 11 and higher Application For both analog dial indicators dial comparators lever-type test indicators and 2-point inside measuring devices and digital dial indicators and inductive and incremental probes. Accessories Mount for lever-type test indicators Large selection of adapters for digital dial indicators and inductive and incremental probes Please ask for customized adapters if required Probe can be connected to Optimar via probe box Holder and software for testing 2-point inside measuring devices with a movable meausing bolt (tesing as per VDI VDE DGQ 2618 sheet 13.2. 2005) Device for force sensor on request OPTIMAR recalibrated on site by Mahr Service Center (standard or DAkkS DKD Certificate) Calibration set for calibration by the operator Technical Data Request catalog or see WebCode 2421 Optimar 100 Range of measuring spindle Measuring system Digital increment Length measuring deviation (MPE) Positioning speed Positioning Pre-positioning Fine positioning Supply voltage Dimensions (L x W x H) for serial no. 2041 11 and higher Order No. 5320005 100 mm 4 in (101.6 mm) LIF 101 with correction of measured values 0.02 m (0.8 in) (0.2 + L 250) m (L in mm) Max. 2 mm s (0.08 in s) Automatic Electronic knob Via plug-in power supply unit 110 230 V 9 V AC 18 VA 235 mm x 216 mm x 480 mm (9.3 in x 8.5 in x 18.9 in) +
