440 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.13-14

440 Mahr 13-14 MarGage Standards Gages and Gage Blocks Pin Gages 426 according to DIN 2269 426 426 G Features To be used as setting standards for i Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 13-14 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 13-14 0440 ENG Lab2u

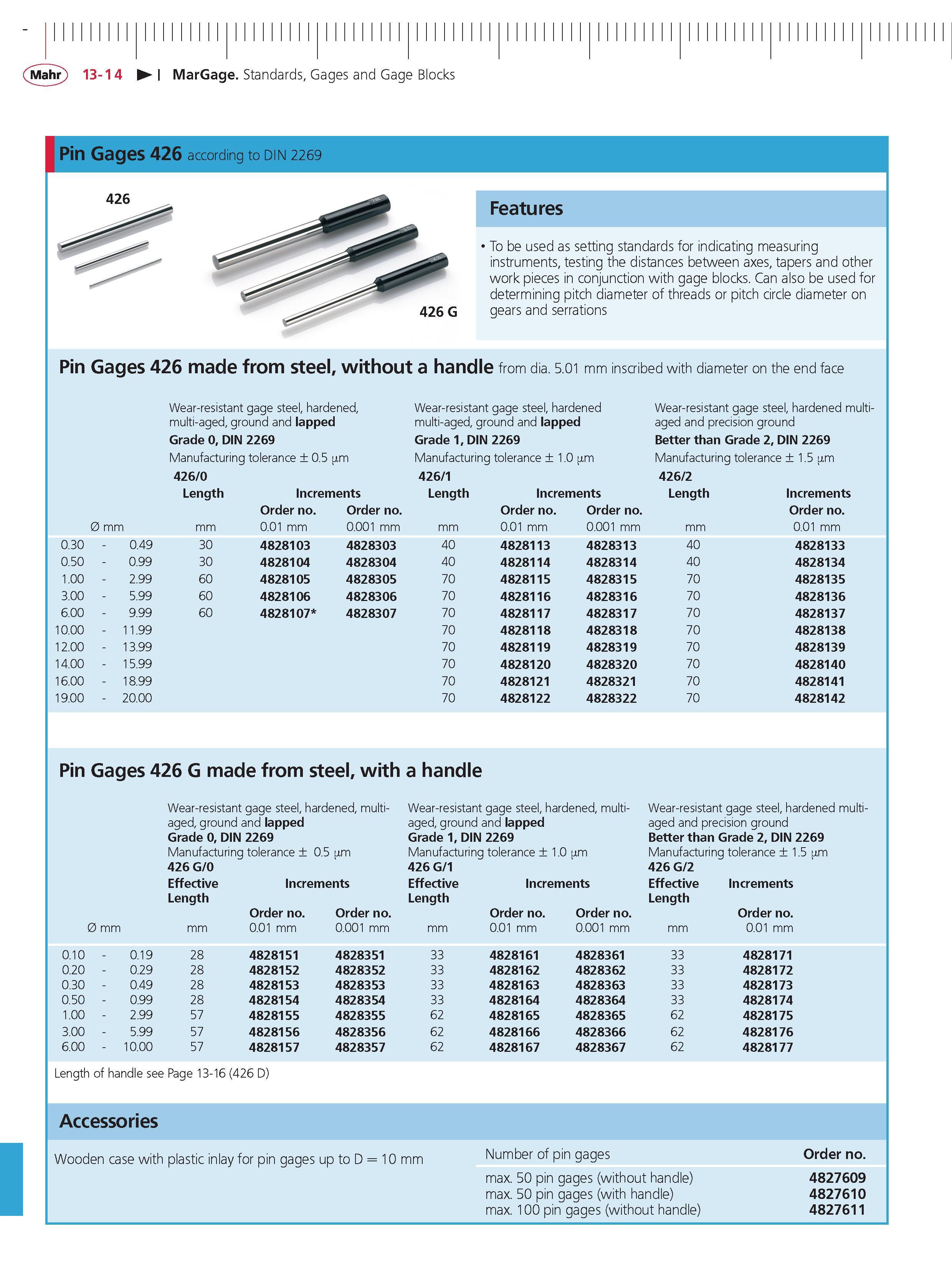

Mahr 13-14 MarGage Standards Gages and Gage Blocks Pin Gages 426 according to DIN 2269 426 426 G Features To be used as setting standards for indicating measuring instruments testing the distances between axes tapers and other work pieces in conjunction with gage blocks. Can also be used for determining pitch diameter of threads or pitch circle diameter on gears and serrations Pin Gages 426 made from steel without a handle from dia. 5.01 mm inscribed with diameter on the end face Wear-resistant gage steel hardened multi-aged ground and lapped Grade 0 DIN 2269 Manufacturing tolerance 0.5 m 426 0 Wear-resistant gage steel hardened multi-aged ground and lapped Grade 1 Din 2269 Manufacturing tolerance 1.0 m 426 1 Wear-resistant gage steel hardened multiaged and precision ground Better than Grade 2 DIN 2269 Manufacturing tolerance 1.5 m 426 2 Length Increments Length Increments Length Increments order no. order no. order no. order no. order no. 0 mm mm 0.01 mm 0.001 mm mm 0.01 mm 0.001 mm mm 0.01 mm 0.30 - 0.49 30 4828103 4828303 40 4828113 4828313 40 4828133 0.50 - 0.99 30 4828104 4828304 40 4828114 4828314 40 4828134 1.00 - 2.99 60 4828105 4828305 70 4828115 4828315 70 4828135 3.00 - 5.99 60 4828106 4828306 70 4828116 4828316 70 4828136 6.00 - 9.99 60 4828107 4828307 70 4828117 4828317 70 4828137 10.00 - 11.99 70 4828118 4828318 70 4828138 12.00 - 13.99 70 4828119 4828319 70 4828139 14.00 - 15.99 70 4828120 4828320 70 4828140 16.00 - 18.99 70 4828121 4828321 70 4828141 19.00 - 20.00 70 4828122 4828322 70 4828142 Pin Gages 426 G made from steel with a handle Wear-resistant gage steel hardened multiaged ground and lapped Grade 0 DIN 2269 Manufacturing tolerance 0.5 m Wear-resistant gage steel hardened multiaged ground and lapped Grade 1 DIN 2269 Manufacturing tolerance 1.0 m Wear-resistant gage steel hardened multiaged and precision ground Better than Grade 2 DIN 2269 Manufacturing tolerance 1.5 m 426 G 0 426 G 1 426 G 2 Effective Increments Effective Increments Effective Increments Length length Length order no. order no. order no. order no. order no. 0 mm mm 0.01 mm 0.001 mm mm 0.01 mm 0.001 mm mm 0.01 mm 0.10 - 0.19 28 4828151 4828351 33 4828161 4828361 33 4828171 0.20 - 0.29 28 4828152 4828352 33 4828162 4828362 33 4828172 0.30 - 0.49 28 4828153 4828353 33 4828163 4828363 33 4828173 0.50 - 0.99 28 4828154 4828354 33 4828164 4828364 33 4828174 1.00 - 2.99 57 4828155 4828355 62 4828165 4828365 62 4828175 3.00 - 5.99 57 4828156 4828356 62 4828166 4828366 62 4828176 6.00 - 10.00 57 4828157 4828357 62 4828167 4828367 62 4828177 Length of handle see Page 13-16 (426 D) Accessories Wooden case with plastic inlay for pin gages up to D 10 mm Number of pin gages max. 50 pin gages (without handle) max. 50 pin gages (with handle) max. 100 pin gages (without handle) order no. 4827609 4827610 4827611
