MAHR | Каталог MAHR 2014 Измерительные инструменты и приборы (Всего 603 стр.)

---

---





405 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.10-23

405 Multimar Universal Measuring Instruments M 10-23 Mahr i D O D indicator Gage 36 B for Internal and External Dimensions Special Contacts Steel S Каталог MAHR 2014 Измерительные инструменты приборы и оборудование для линейно-угловых измерений в машиностроении Стр. 10-23 ENG

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 10-23 0405 ENG Lab2u

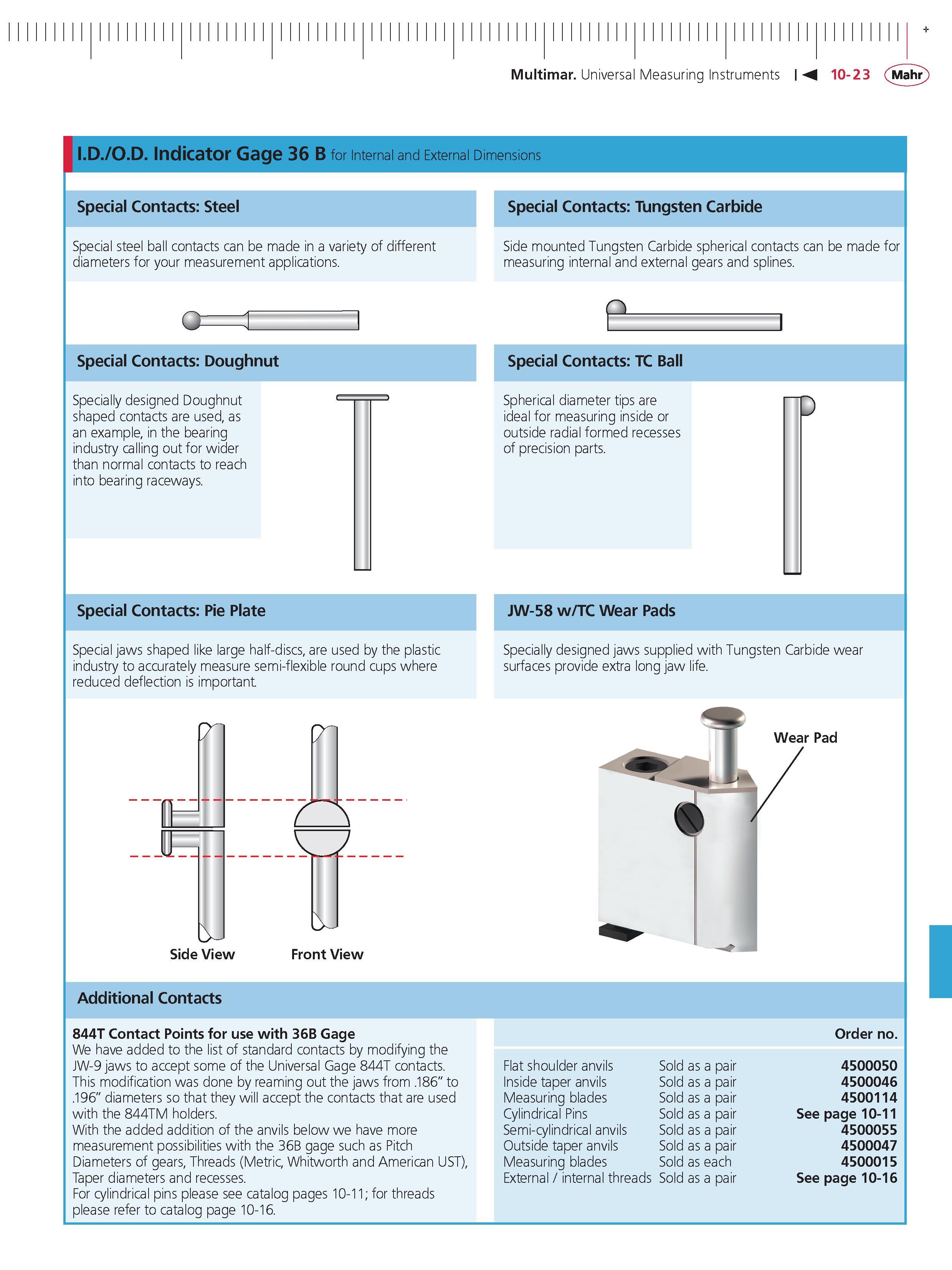

Multimar Universal Measuring Instruments M 10-23 Mahr i.D. O.D. indicator Gage 36 B for Internal and External Dimensions Special Contacts Steel Special steel ball contacts can be made in a variety of different diameters for your measurement applications. a Special Contacts Doughnut Specially designed Doughnut shaped contacts are used as an example in the bearing industry calling out for wider than normal contacts to reach into bearing raceways. Special Contacts Pie Plate Special jaws shaped like large half-discs are used by the plastic industry to accurately measure semi-flexible round cups where reduced deflection is important. IE 23 a Side view Front view Special Contacts Tungsten Carbide Side mounted Tungsten Carbide spherical contacts can be made for measuring internal and external gears and splines. Q Special Contacts TC Ball Spherical diameter tips are ideal for measuring inside or outside radial formed recesses of precision parts. JW-58 w TC Wear Pads Specially designed jaws supplied with Tungsten Carbide wear surfaces provide extra long jaw life. Additional Contacts 844T Contact Points for use with 36B Gage We have added to the list of standard contacts by modifying the JW-9 jaws to accept some of the Universal Gage 844T contacts. This modification was done by reaming out the jaws from .186" to .196" diameters so that they will accept the contacts that are used with the 844TM holders. With the added addition of the anvils below we have more measurement possibilities with the 36B gage such as Pitch Diameters of gears Threads (Metric Whitworth and American UST) Taper diameters and recesses. For cylindrical pins please see catalog pages 10-11; for threads please refer to catalog page 10-16. Order no. Flat shoulder anvils Sold as a pair 4500050 Inside taper anvils Sold as a pair 4500046 Measuring blades Sold as a pair 4500114 Cylindrical Pins Sold as a pair See page 10-11 Semi-cylindrical anvils Sold as a pair 4500055 Outside taper anvils Sold as a pair 4500047 Measuring blades Sold as each 4500015 External internal threads Sold as a pair See page 10-16 +
